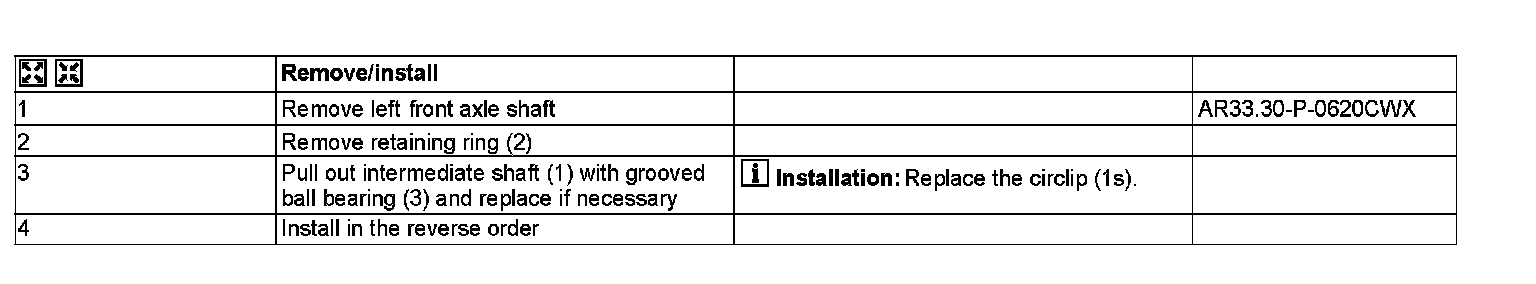

AR33.30-P-0625CWX Remove/Install Intermediate Shaft and Replacing Deep-Groove Ball Bearing




AR33.30-P-0625CWX Remove/Install Intermediate Shaft And Replacing Deep-Groove Ball Bearing
MODEL 204.08 /09 /28 /29 /98, 207.38, 212.08 /09 /28 /29, 218.39

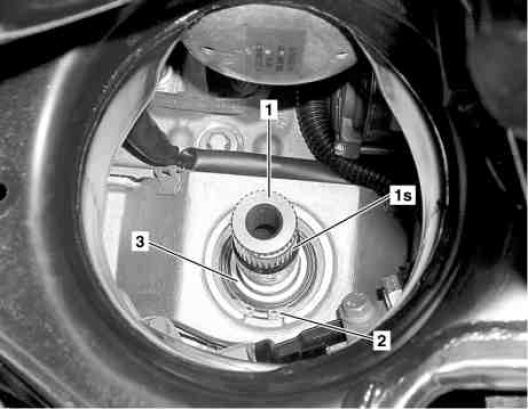

1 Intermediate shaft
1s Retaining ring
2 Retaining ring
3 Grooved ball bearing
