AR33.30-P-0525CWX Remove/Install Front Axle Gear
AR33.30-P-0525CWX Remove/Install Front Axle Gear
AR33.30-P-0525CWX Remove/install front axle gear

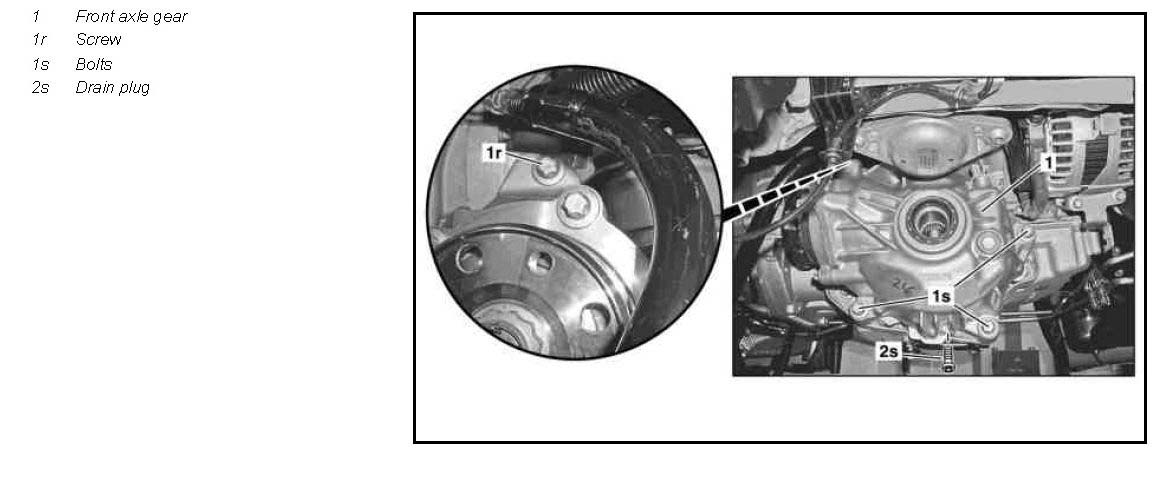

Component Identification:

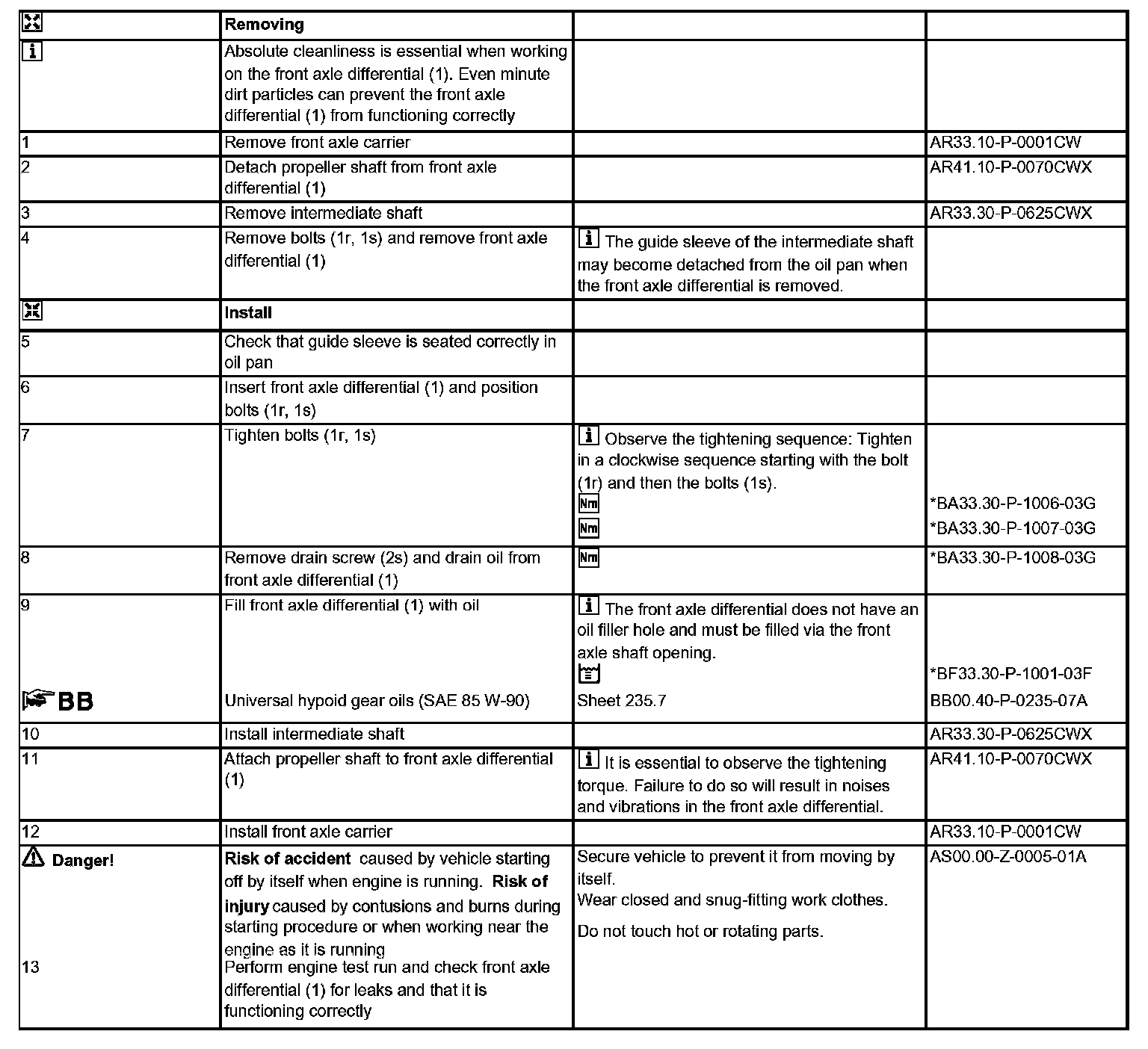

Steps 1-13:

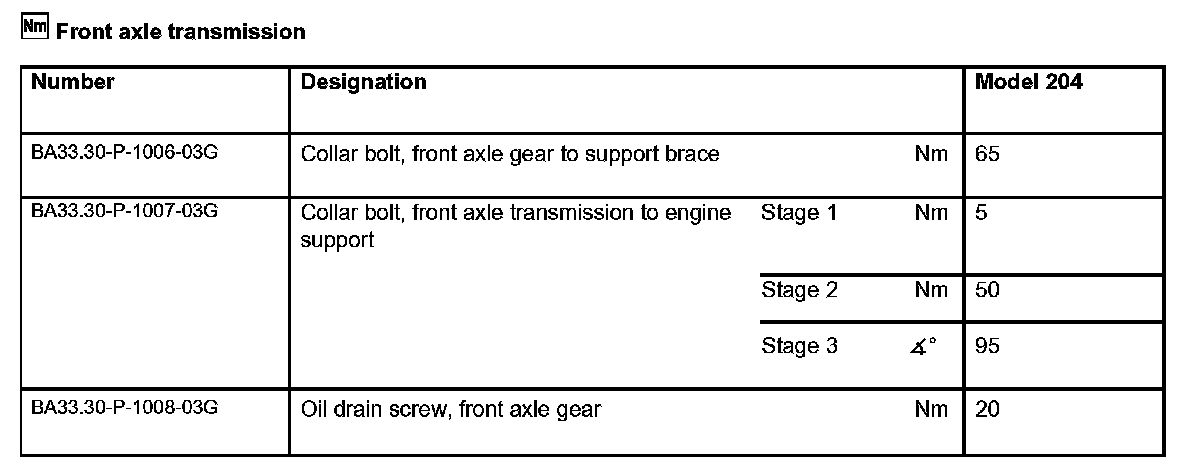

Front axle transmission:

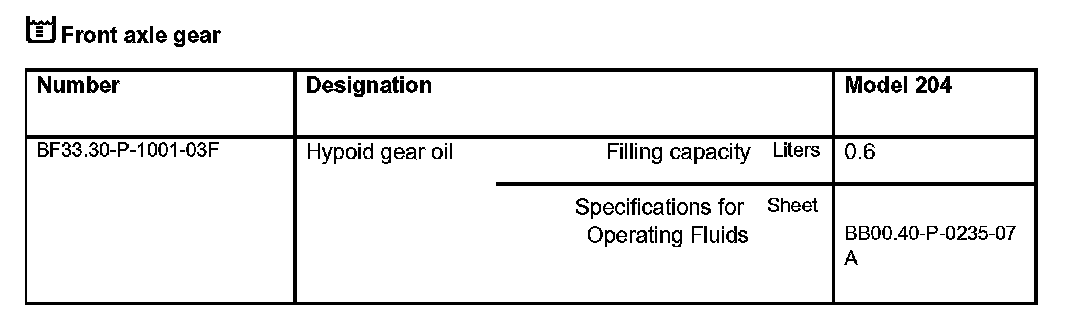

Front axle gear:
