AR33.30-P-0540SYZ Install New Radial Sealing Ring on Outside Right of Front Axle Gear



AR33.30-P-0540SYZ Install new radial sealing ring on outside right of front axle gear

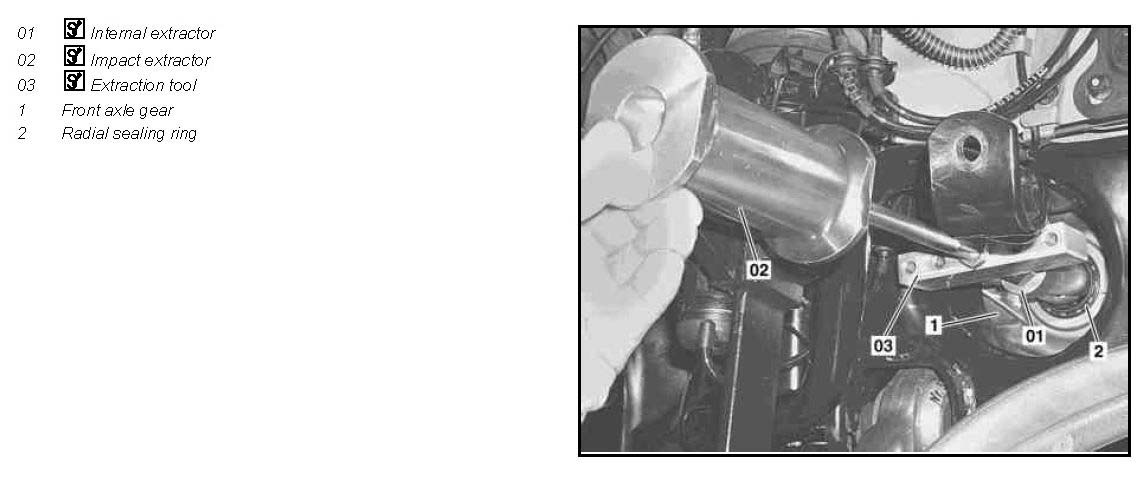

Component Identification:

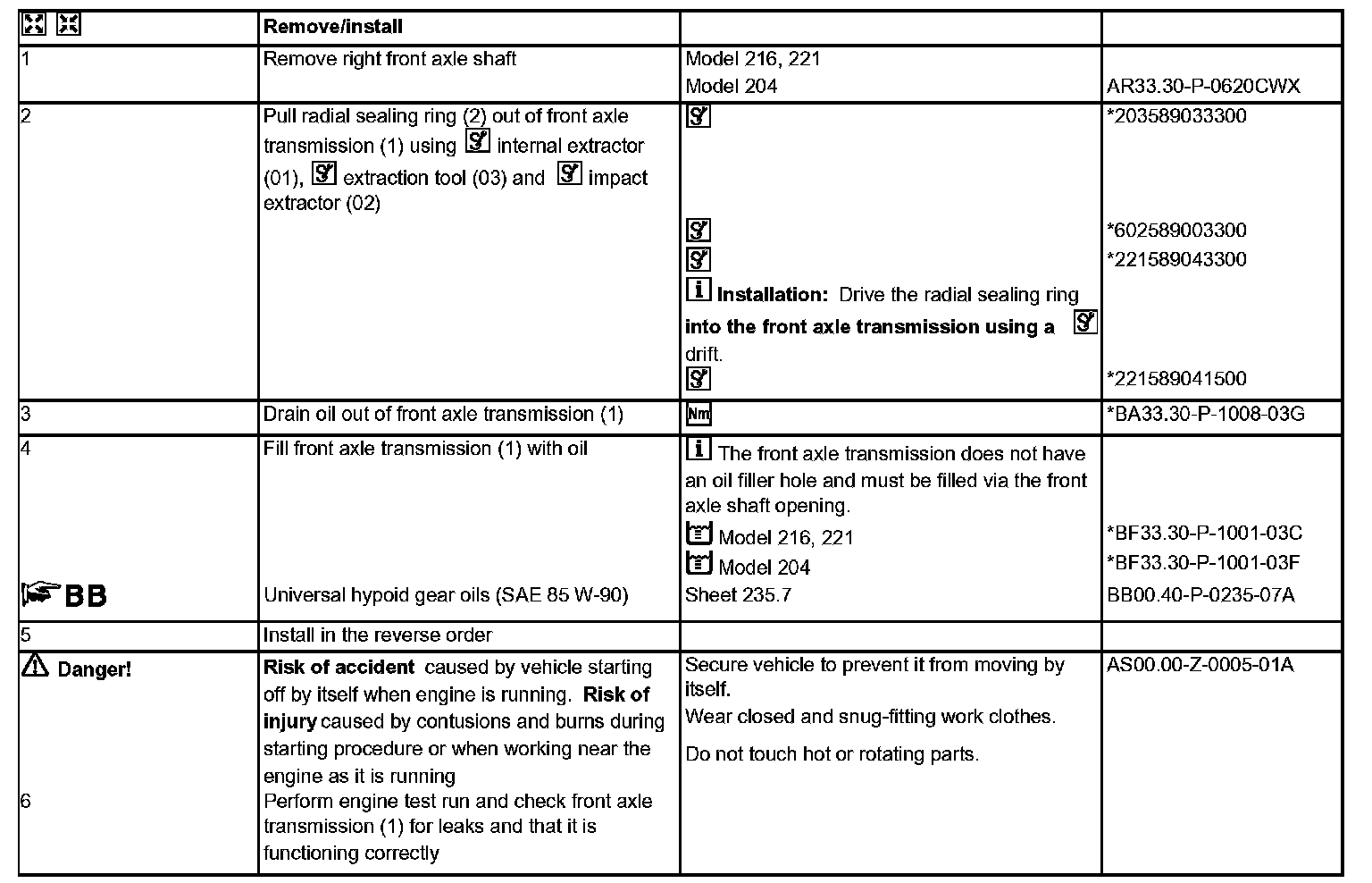

Remove/install Steps 1-6:

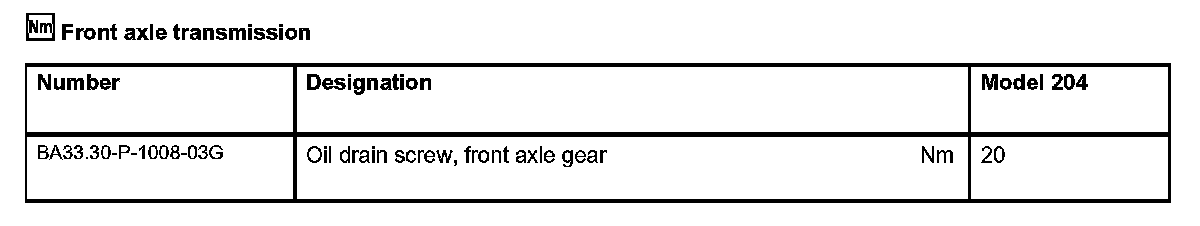

Front axle transmission:




Front axle transmission:

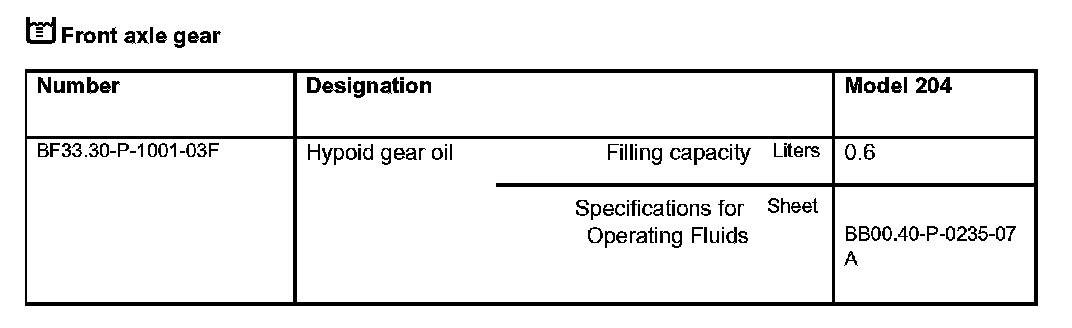

Front axle gear:

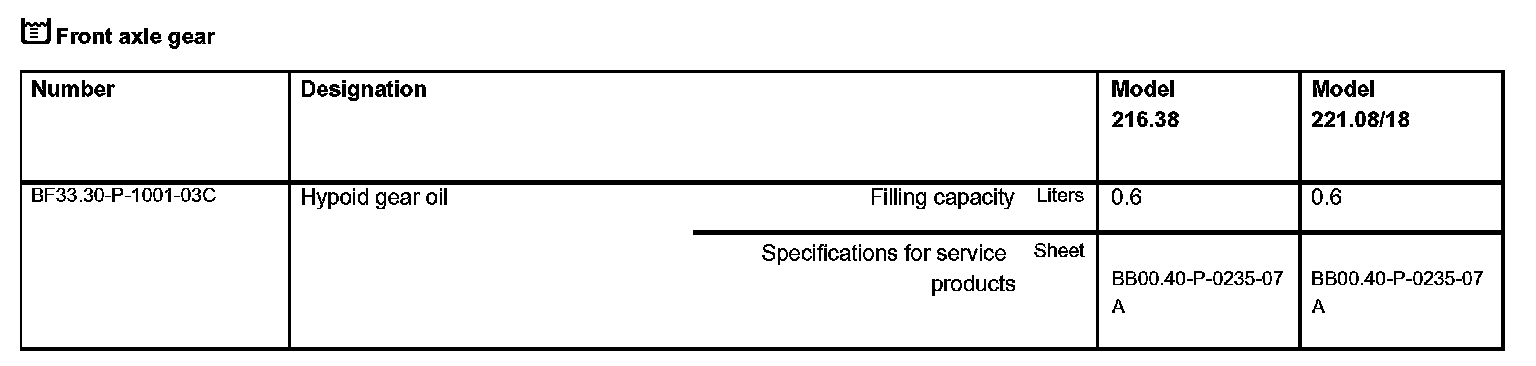

Front axle gear:

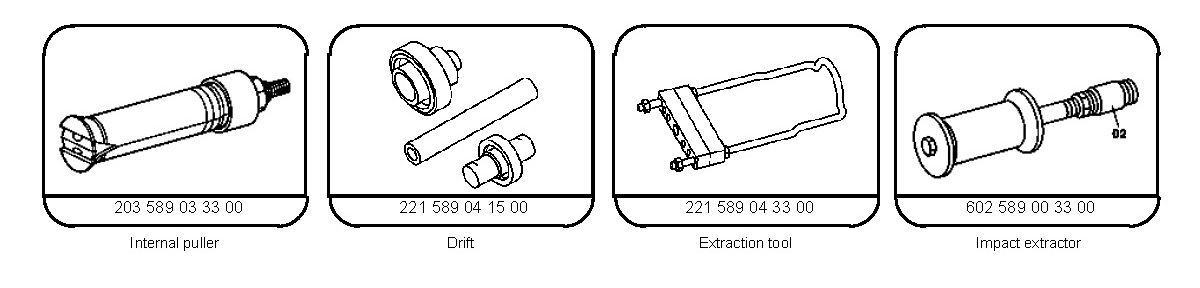

Special Tools:
