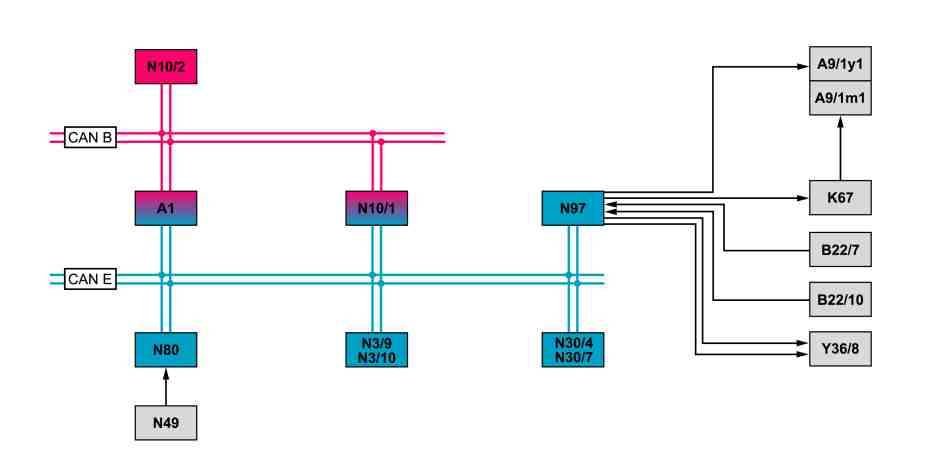

GF32.33-P-0004-07FL Electronic Rear Axle Level Control, Block Diagram

GF32.33-P-0004-07FL Electronic Rear Axle Level Control, Block Diagram
- except CODE (489) AIRMATIC (air suspension with continuous damper adjustment)
- except CODE (488) Steel/air suspension





A1 Instrument cluster
A9/1m1 Compressor
A9/1y1 AIRMATIC pressure reduction valve
B22/7 Left rear level sensor
B22/10 Right rear level sensor
K67 AIRMATIC relay
N3/9 CDI control unit (with diesel engine)
N3/10 ME-SFI [ME] control unit (with gasoline engine)
N10/1 Front SAM control unit with fuse and relay module
N10/2 Rear SAM control unit with fuse and relay module
N30/4 Electronic Stability Program control unit (without code (233) DISTRONIC PLUS)
N30/7 Electronic Stability Program Premium control unit (with code (233) DISTRONIC PLUS)
N49 Steering angle sensor
N80 Steering column module control unit
N97 Rear axle electronic level control control unit
Y36/8 Electronic level control level control valve
CAN B Interior CAN
CAN E Chassis CAN
