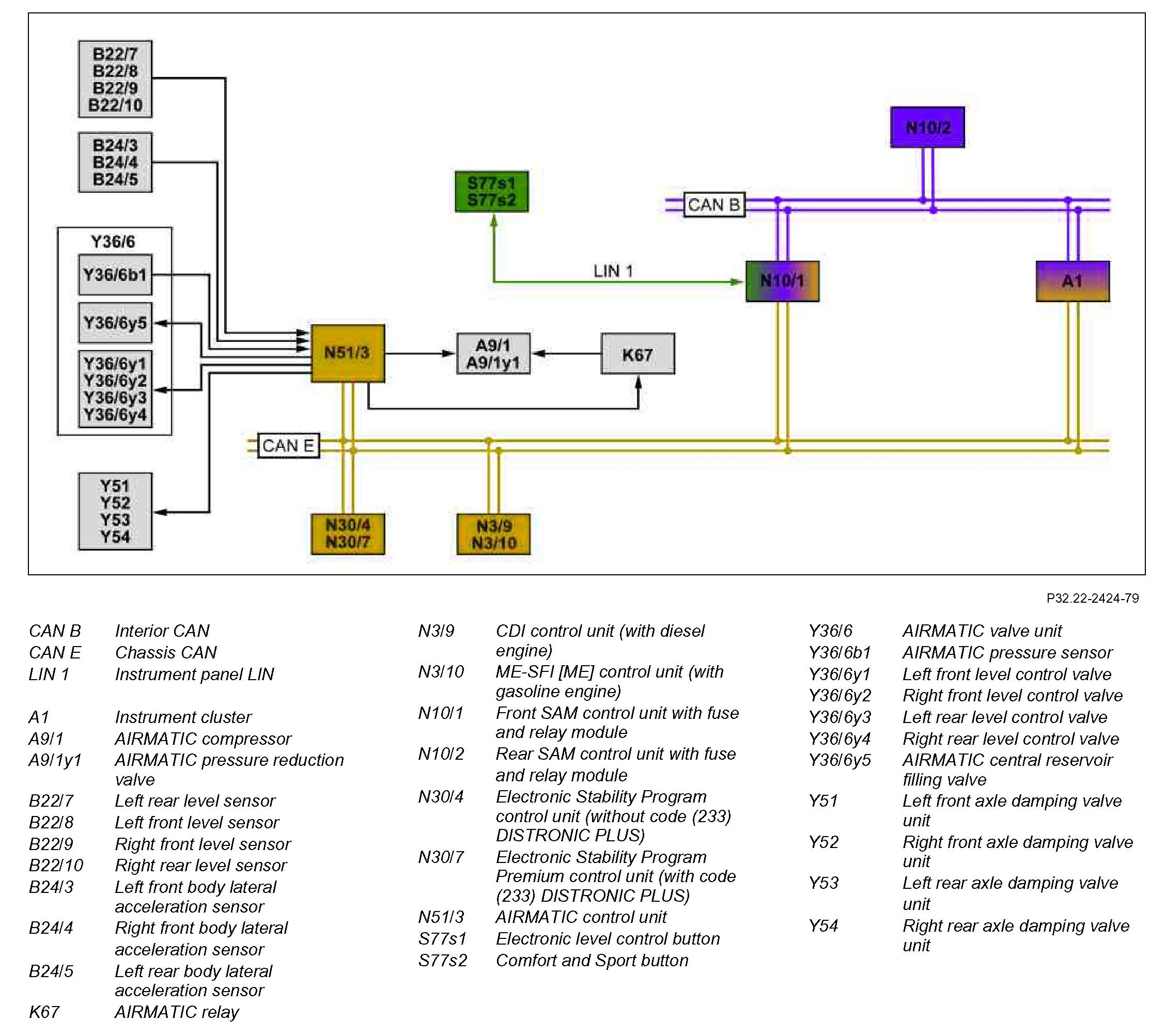

GF32.22-P-0003-06FL AIRmatic, Block Diagram



GF32.22-P-0003-06FL AIRMATIC, block diagram
- with CODE (489) AIRMATIC (air suspension with continuous damper adjustment)
