AR46.30-P-0500EWL Remove/install
power steering pump

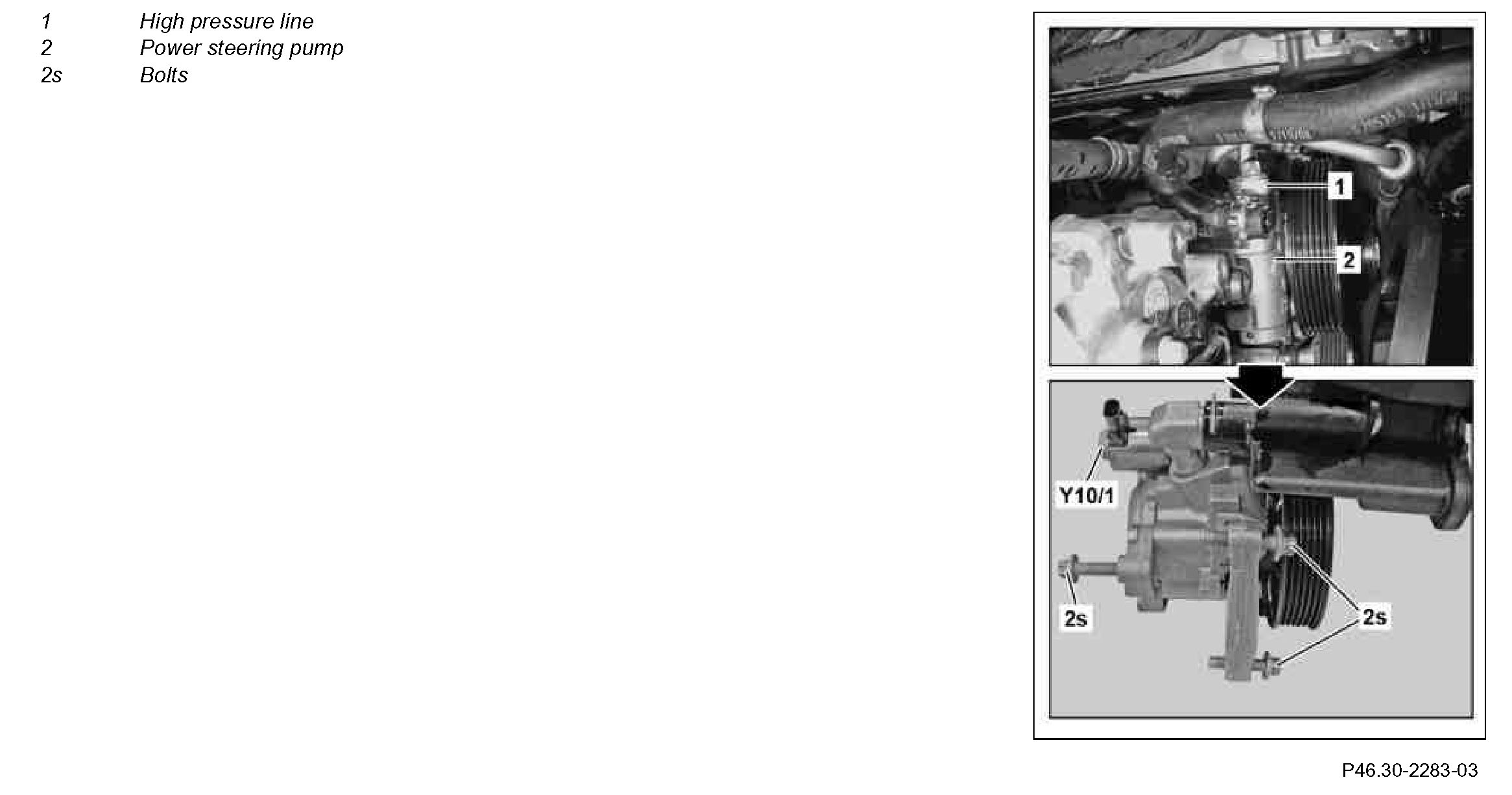

Component Identification:
Steps 1-13:

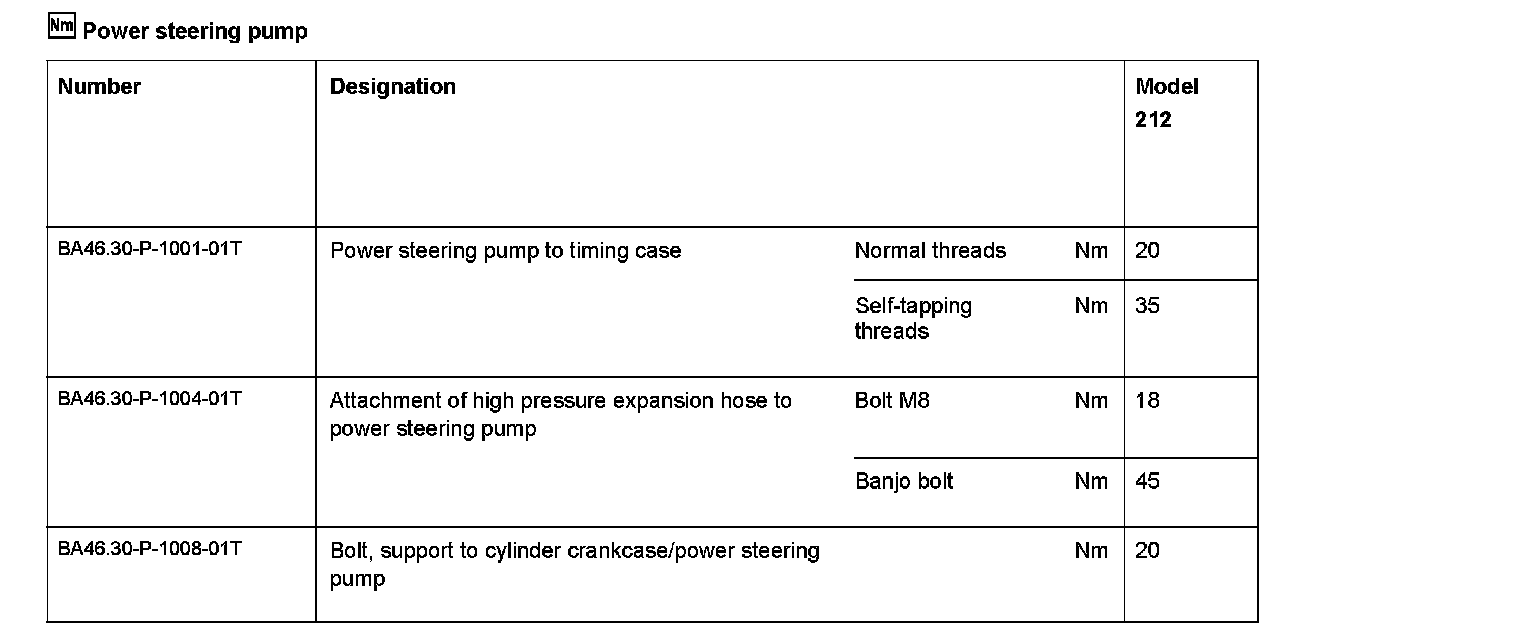

Power steering pump:

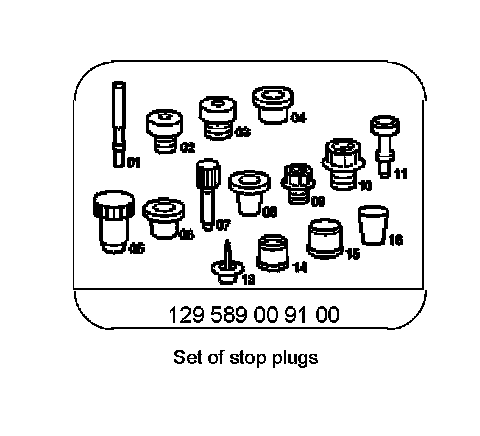

Special Tools:
