Starter Motor: Service and Repair
AR15.30-P-7100EW Remove/install starter

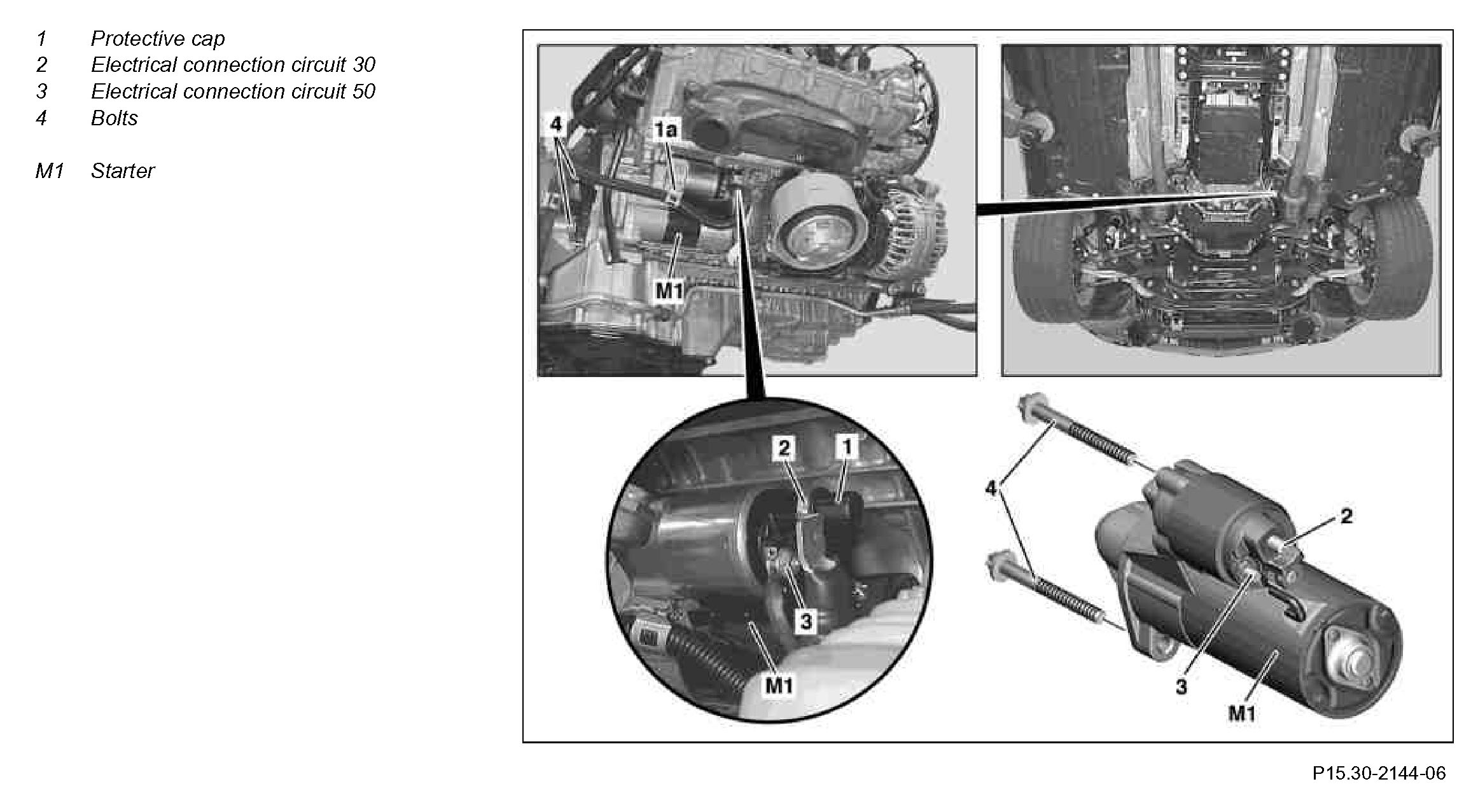

Component Identification:

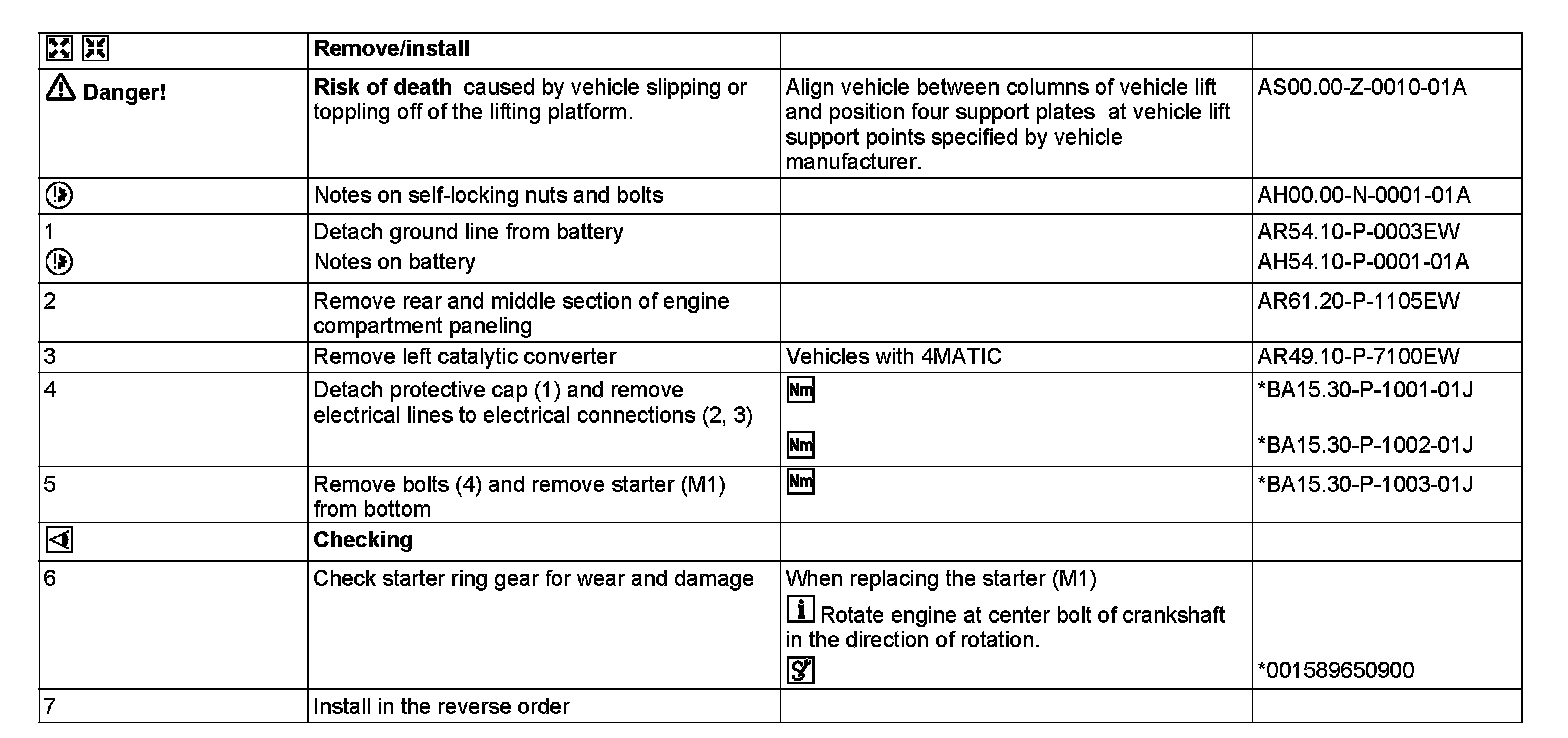

Steps 1-7:

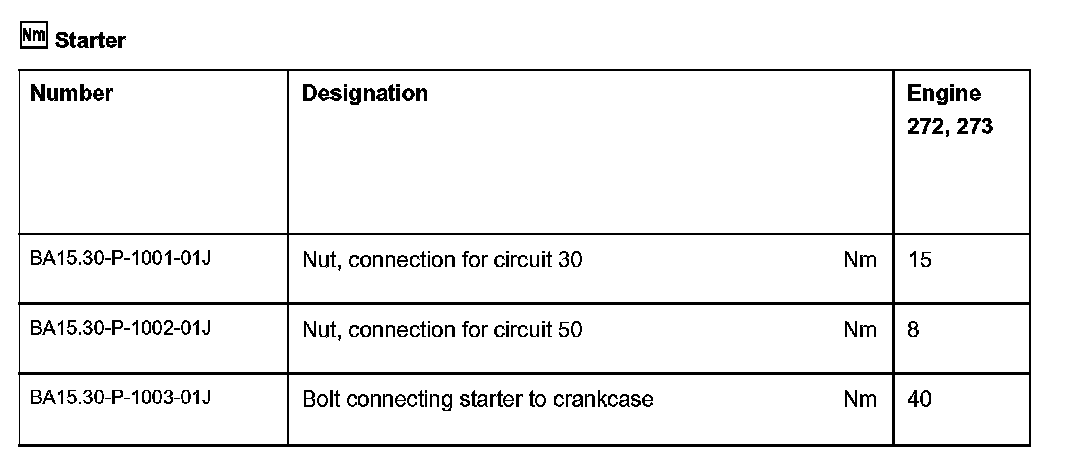

Starter:

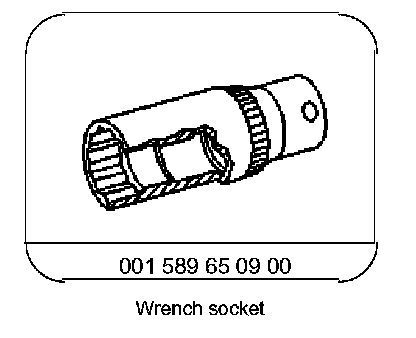

Special Tools:
