BE03.20-P-1000-04E Inspection Data of Crankshaft Bearing Clearance
BE03.20-P-1000-04E Inspection Data of Crankshaft Bearing Clearance
BE03.20-P-1000-04E Inspection data of
crankshaft
bearing clearance

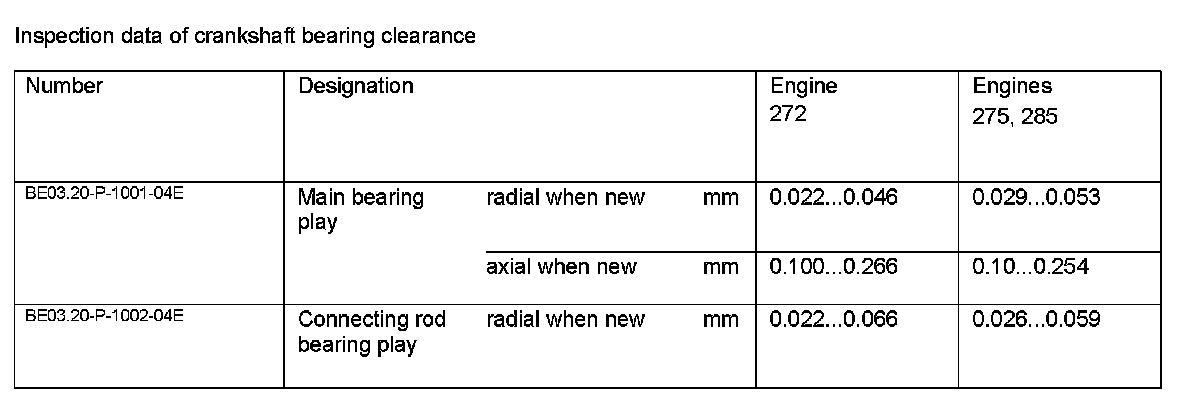

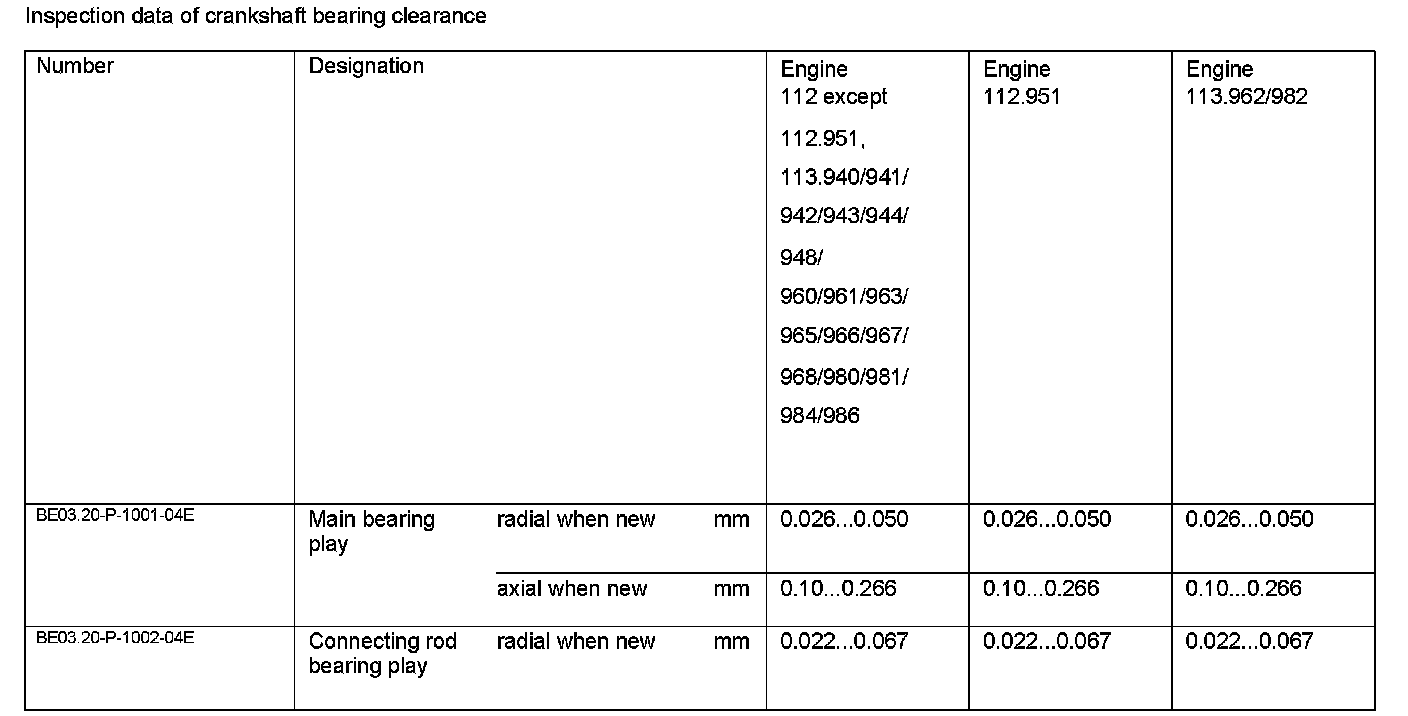

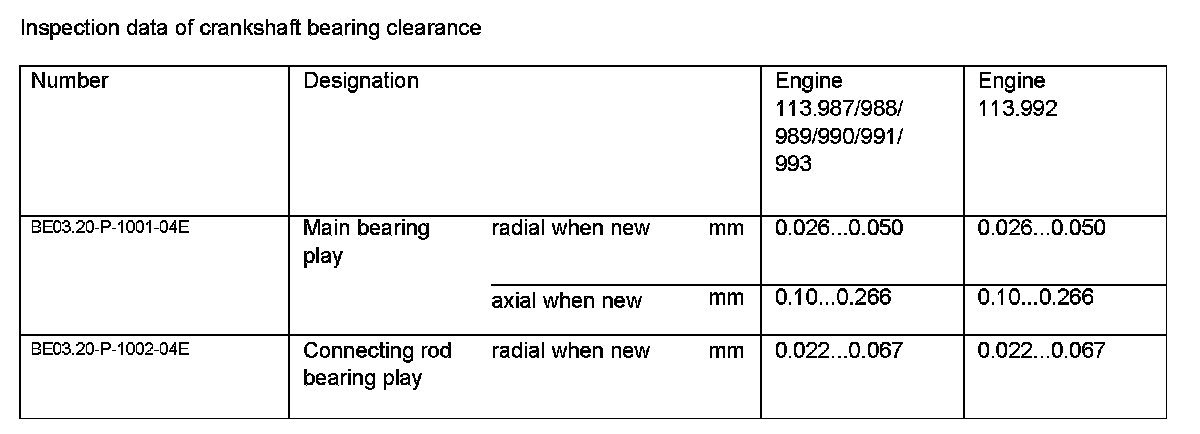

Inspection data of crankshaft bearing clearance:
