Mechanical Specifications
>>
Engine
>>
Cylinder Block Assembly
>>
Connecting Rod, Engine
>>

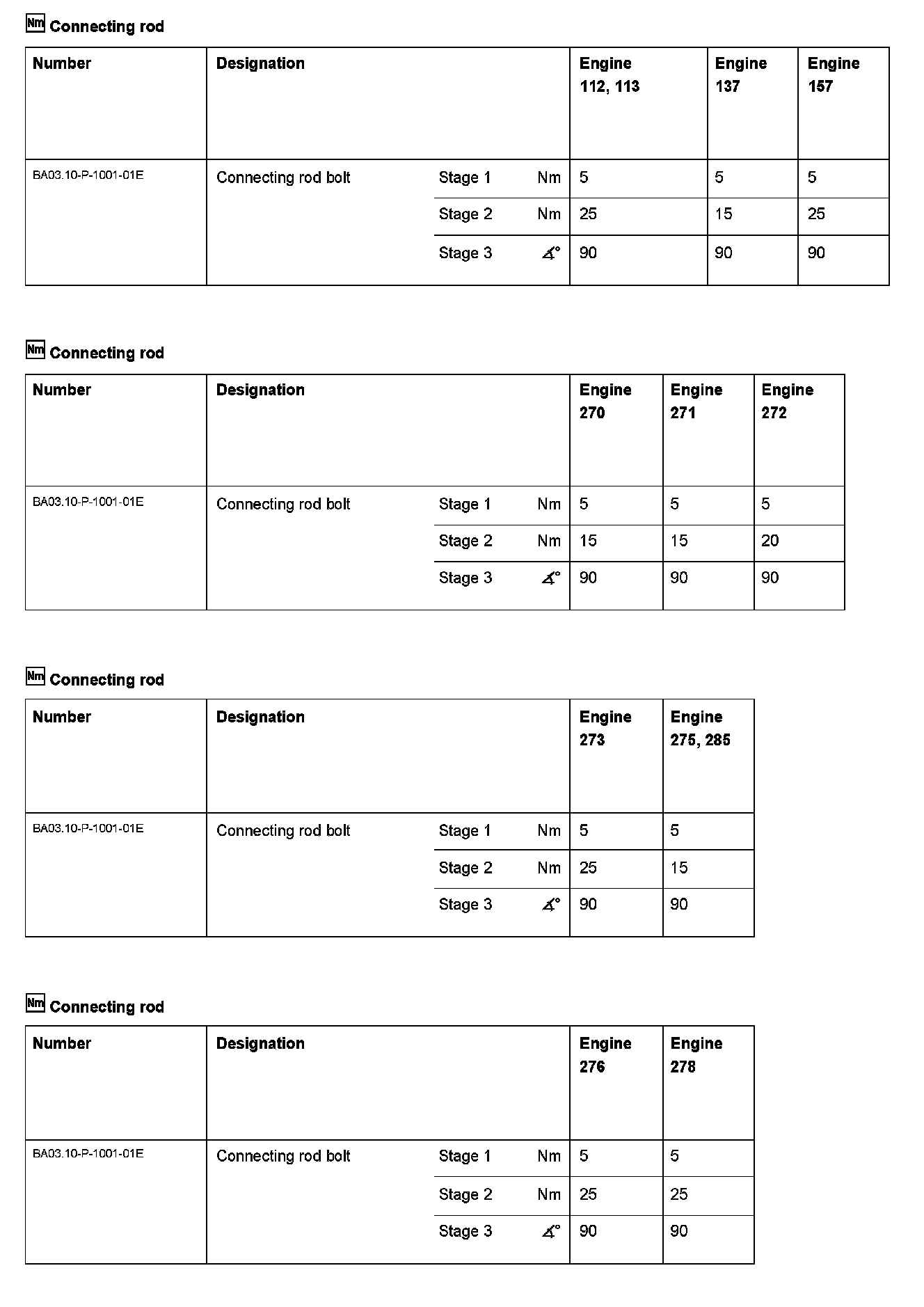

BA03.10-P-1000-01E Connecting Rod
BA03.10-P-1000-01E Connecting Rod
BA03.10-P-1000-01E
Connecting Rod
ENGINE 112, 113, 137, 157, 270, 271, 272, 273, 275, 276, 278, 285
