Fuel Pressure Sensor/Switch: Service and Repair
AR07.04-P-0030EW Remove/Install
Fuel Pressure Sensor

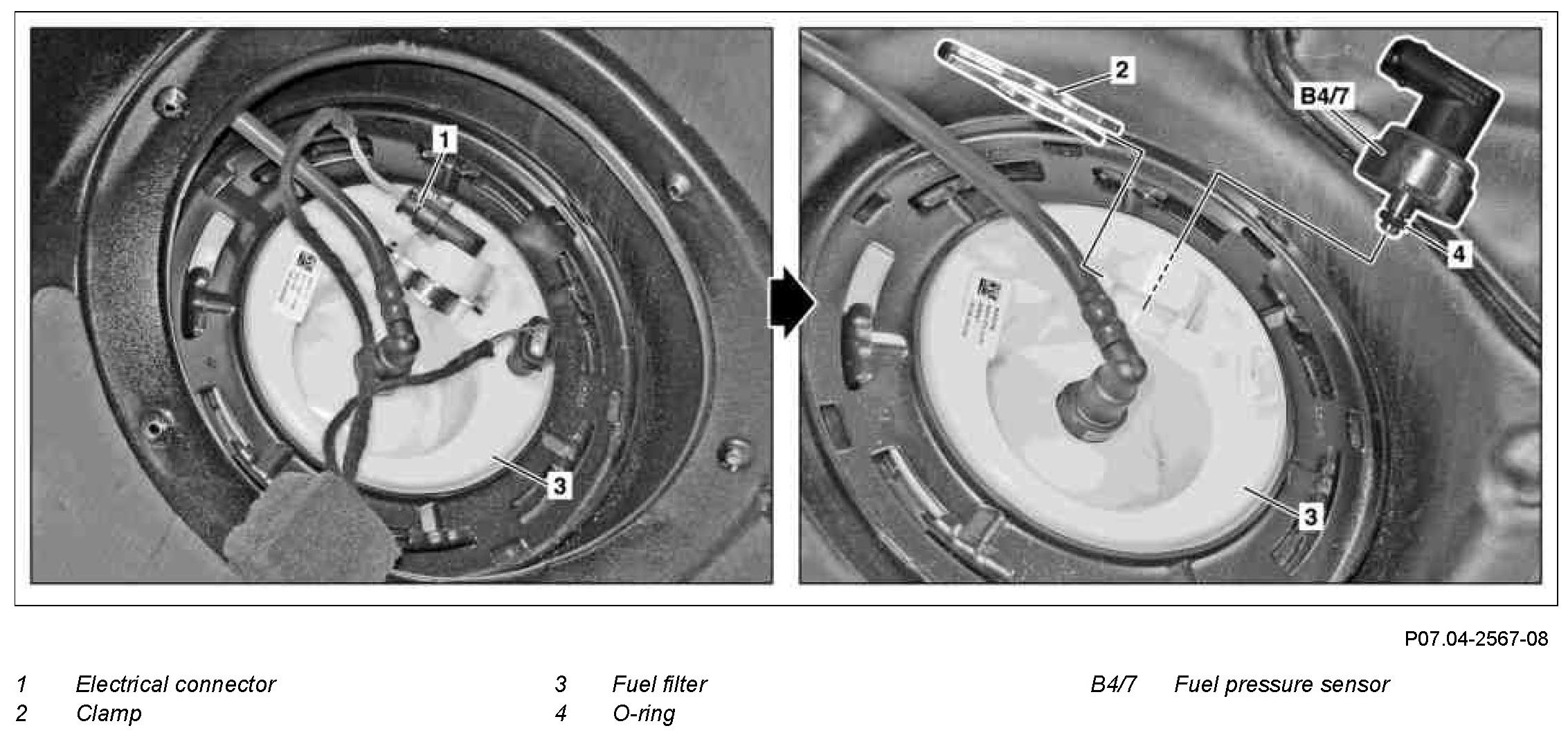

Component Identification:

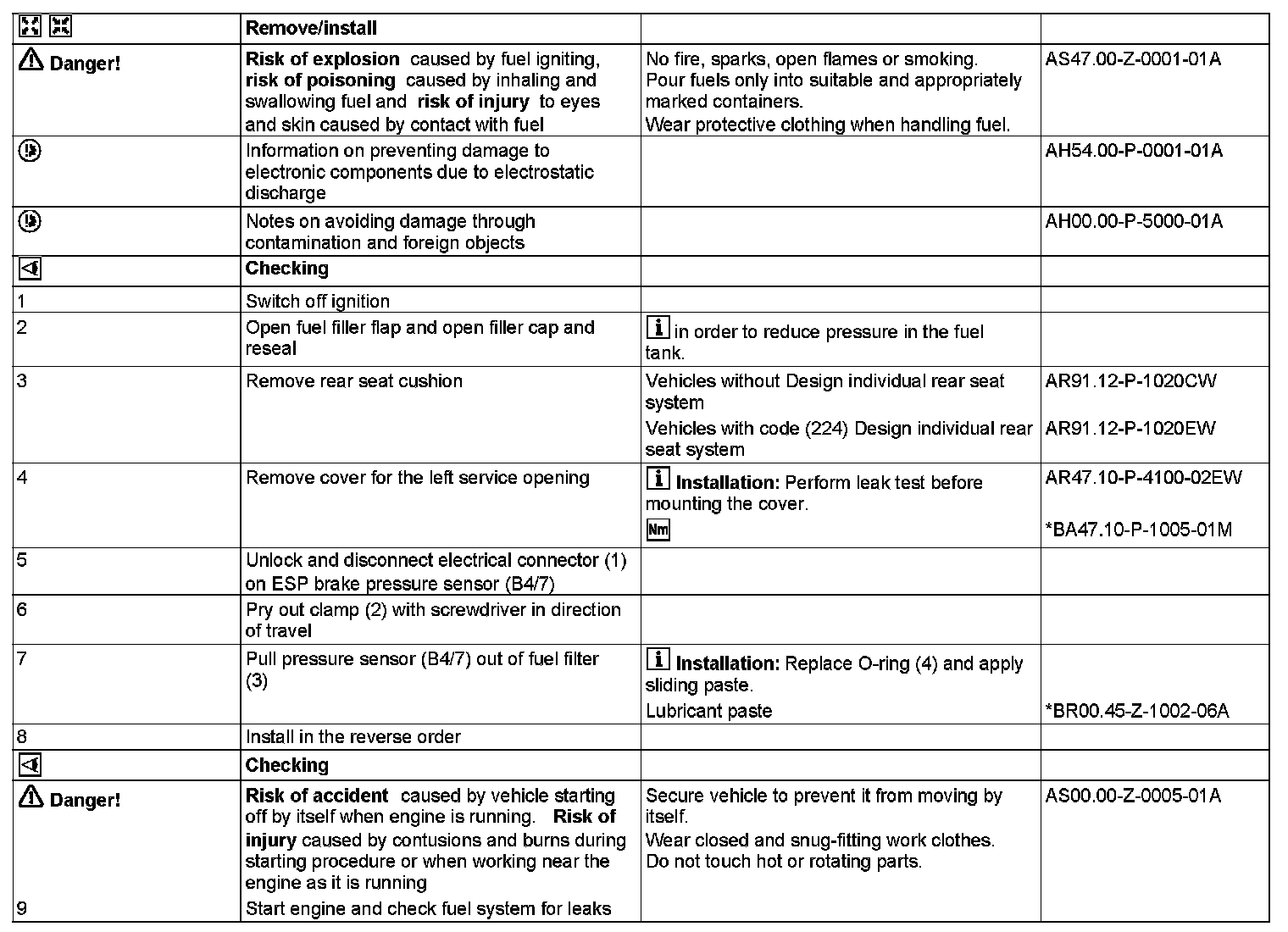

Steps 1 - 9:

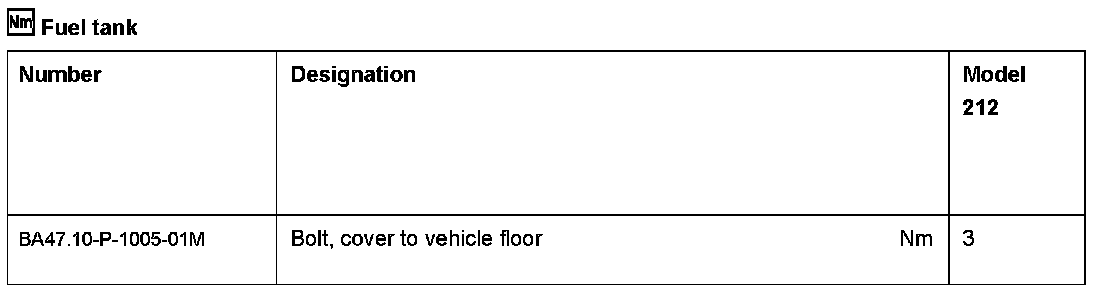

Fuel Tank:

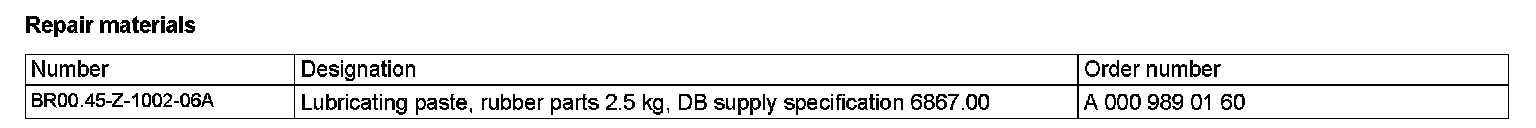

Repair Materials:
