Knock Sensor: Service and Repair
AR15.12-P-2184EW Remove/install
knock sensors

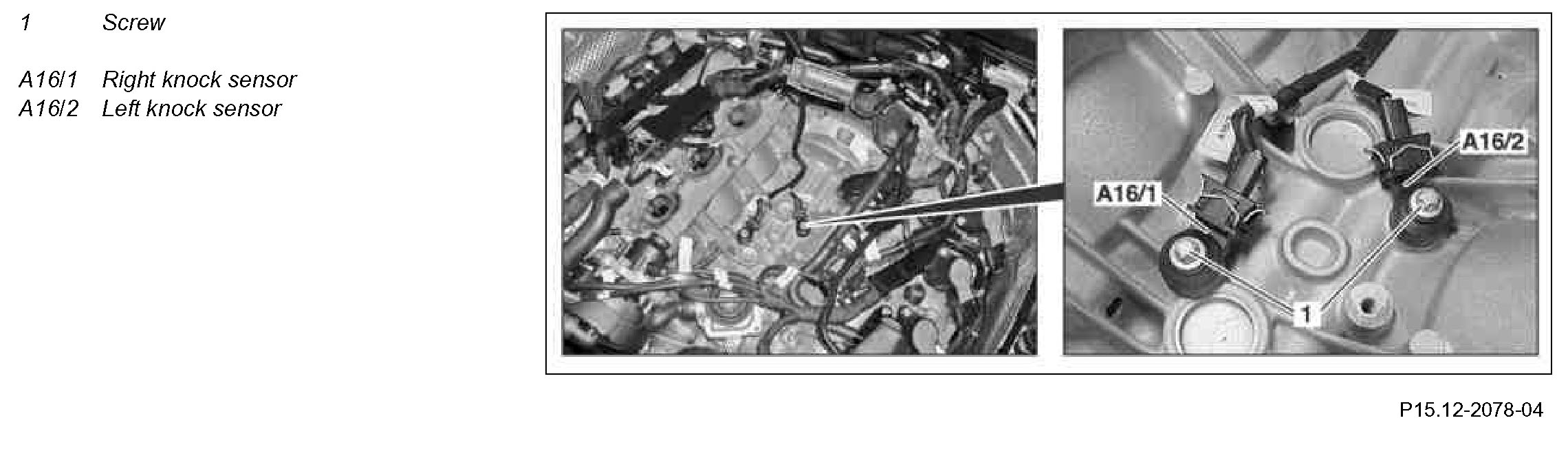

Component Identification:

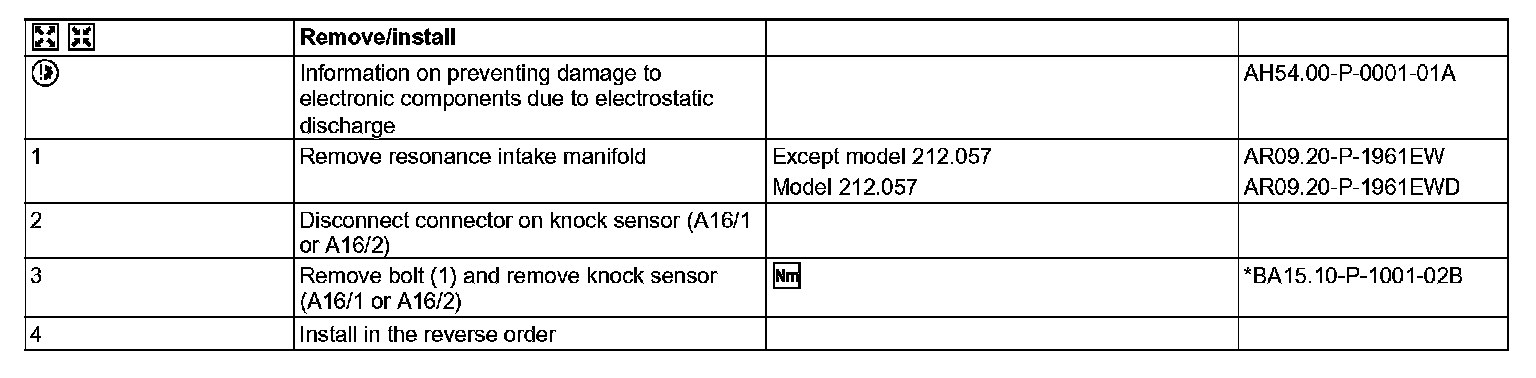

Steps 1-4:

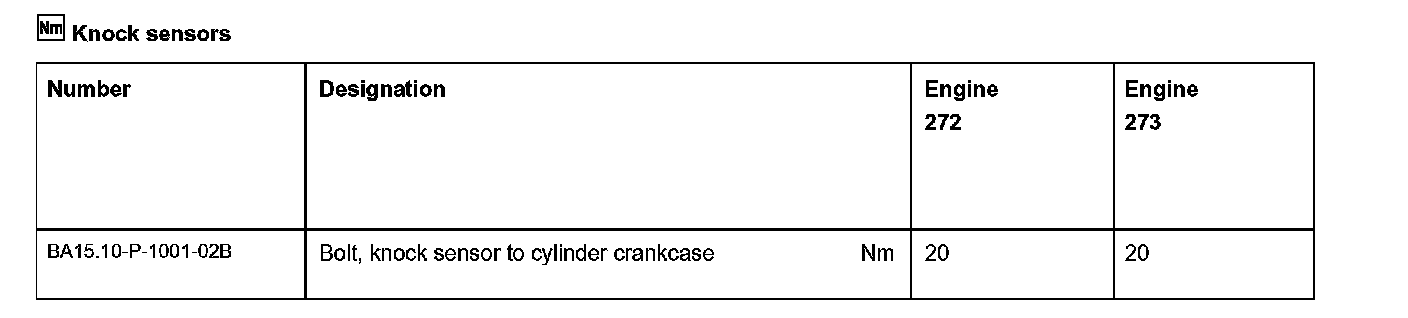

Knock sensors:
