Crankshaft Position Sensor: Service and Repair
AR15.12-P-2136EW Remove/install crankshaft Hall sensor

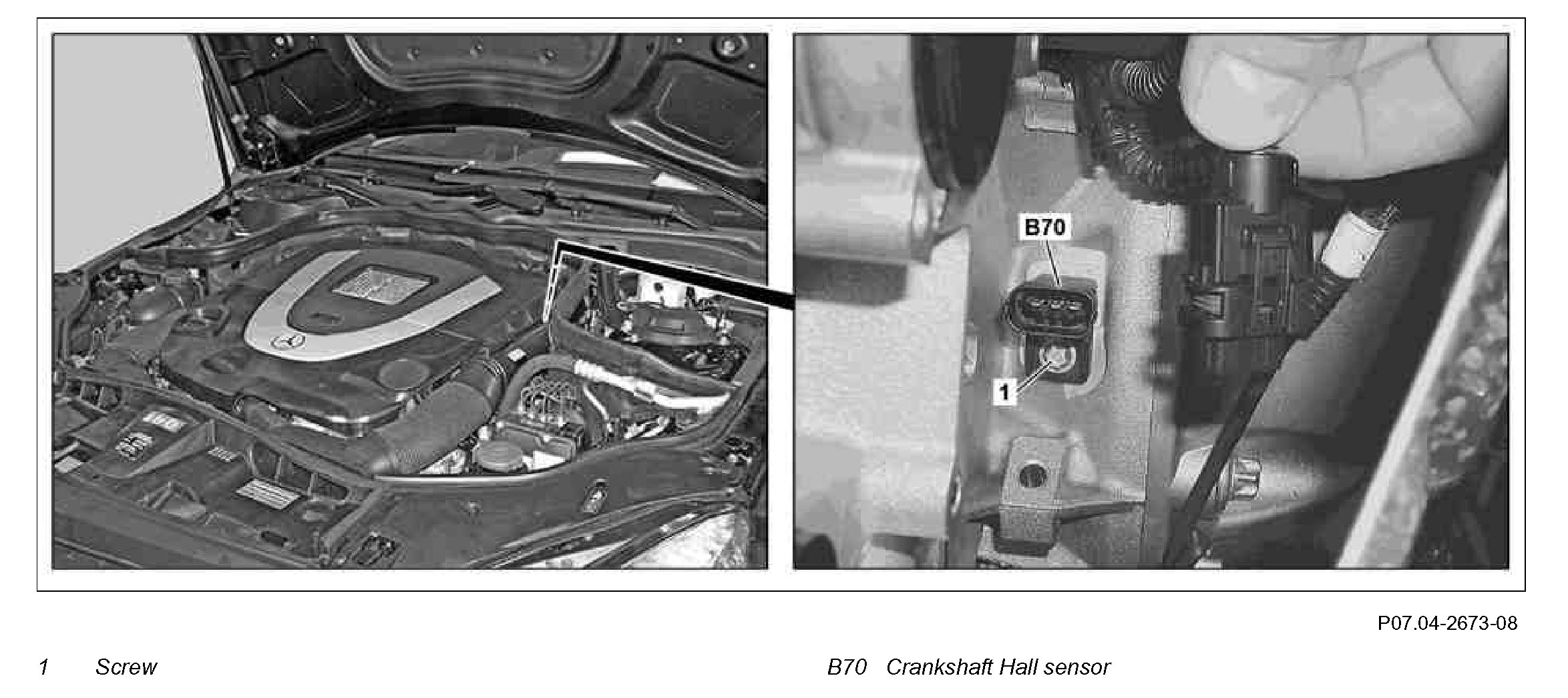

Component Identification:

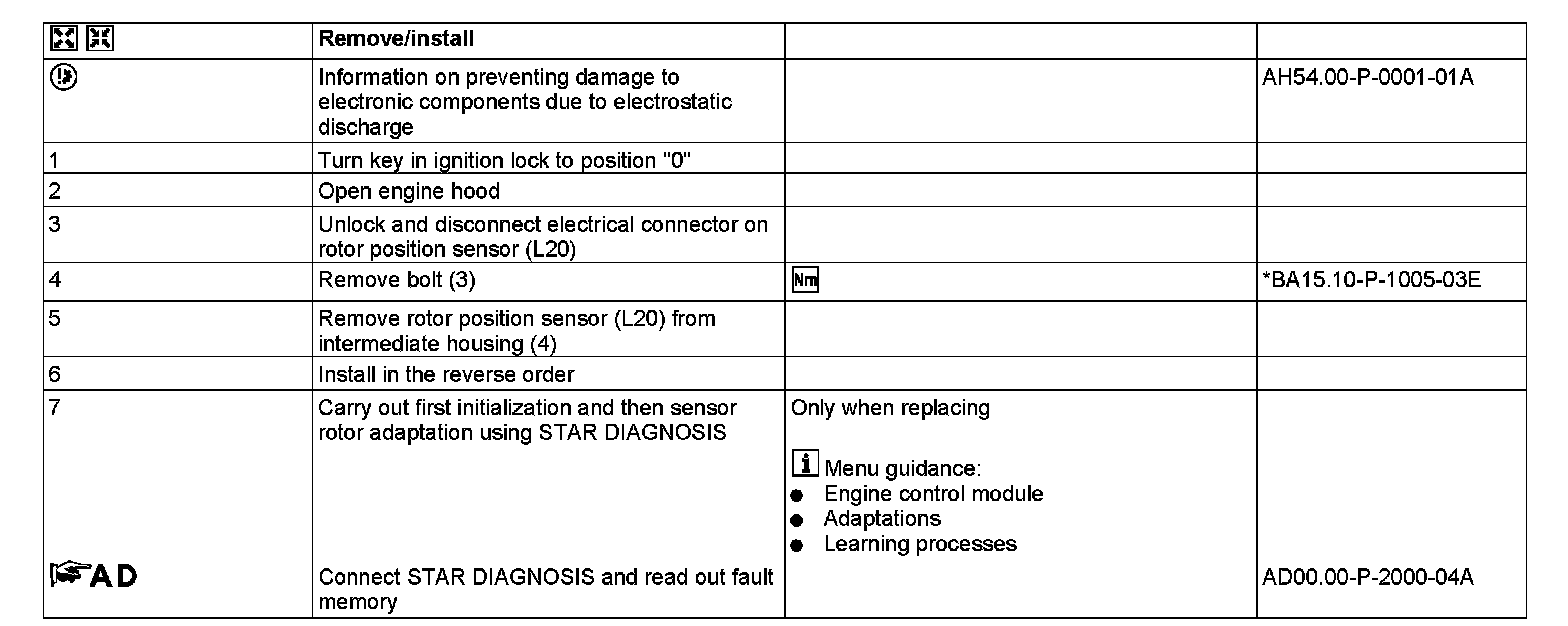

Steps 1-7:

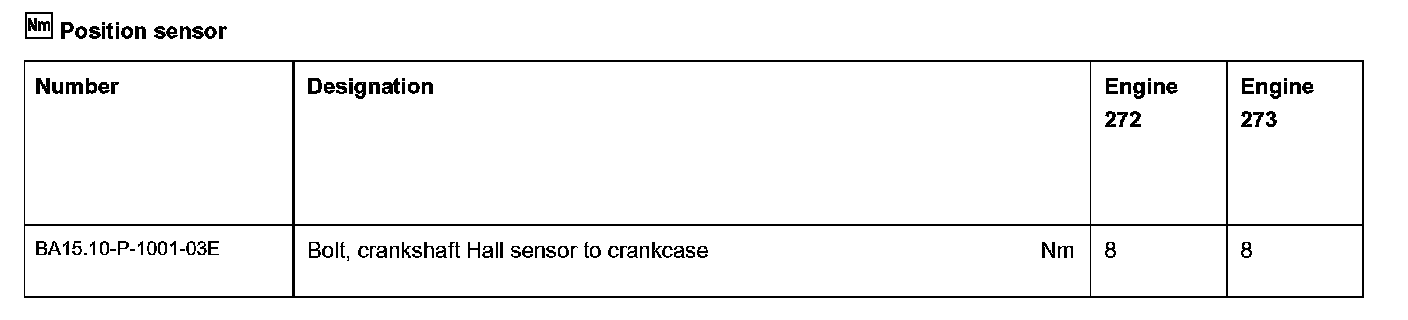

Position sensor:
