Air Flow Meter/Sensor: Service and Repair
AR07.07-P-1453EW Remove/Install Hot Film Mass Air Flow Sensor

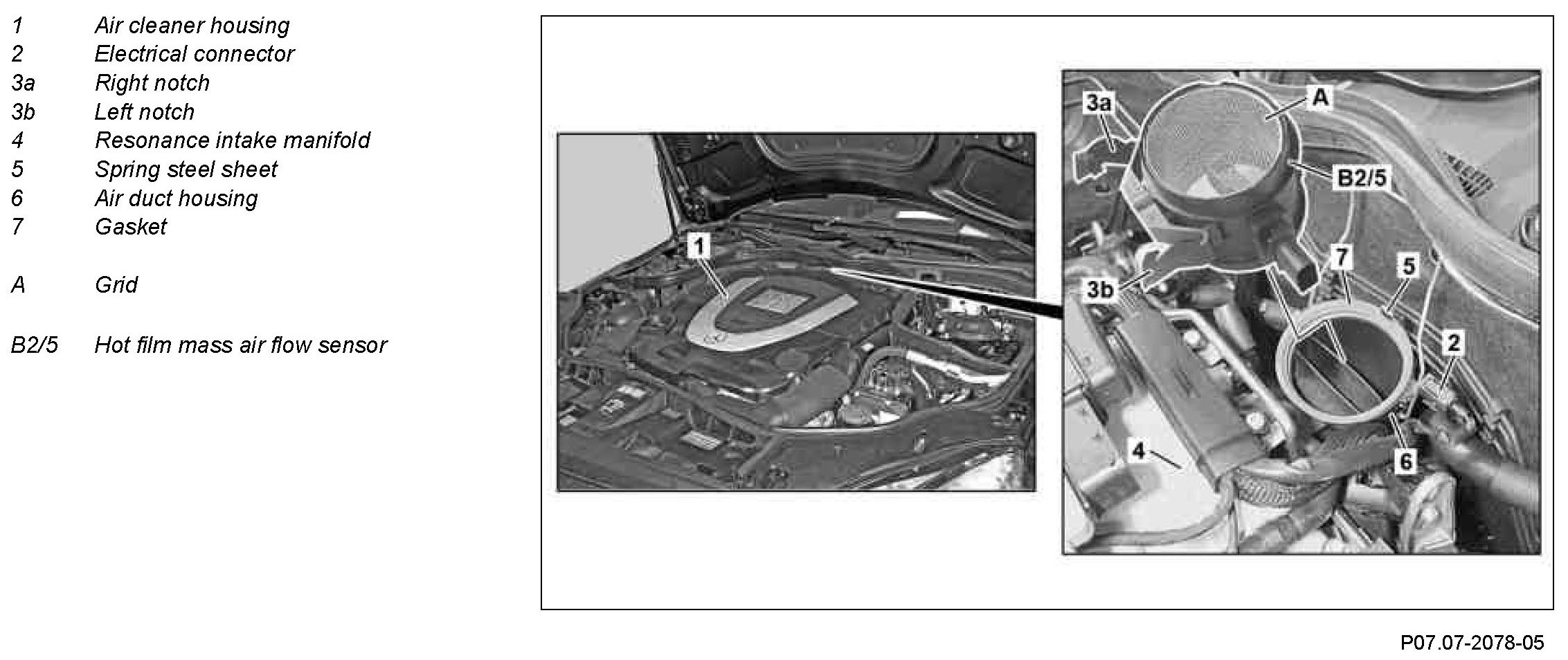

Component Identification:

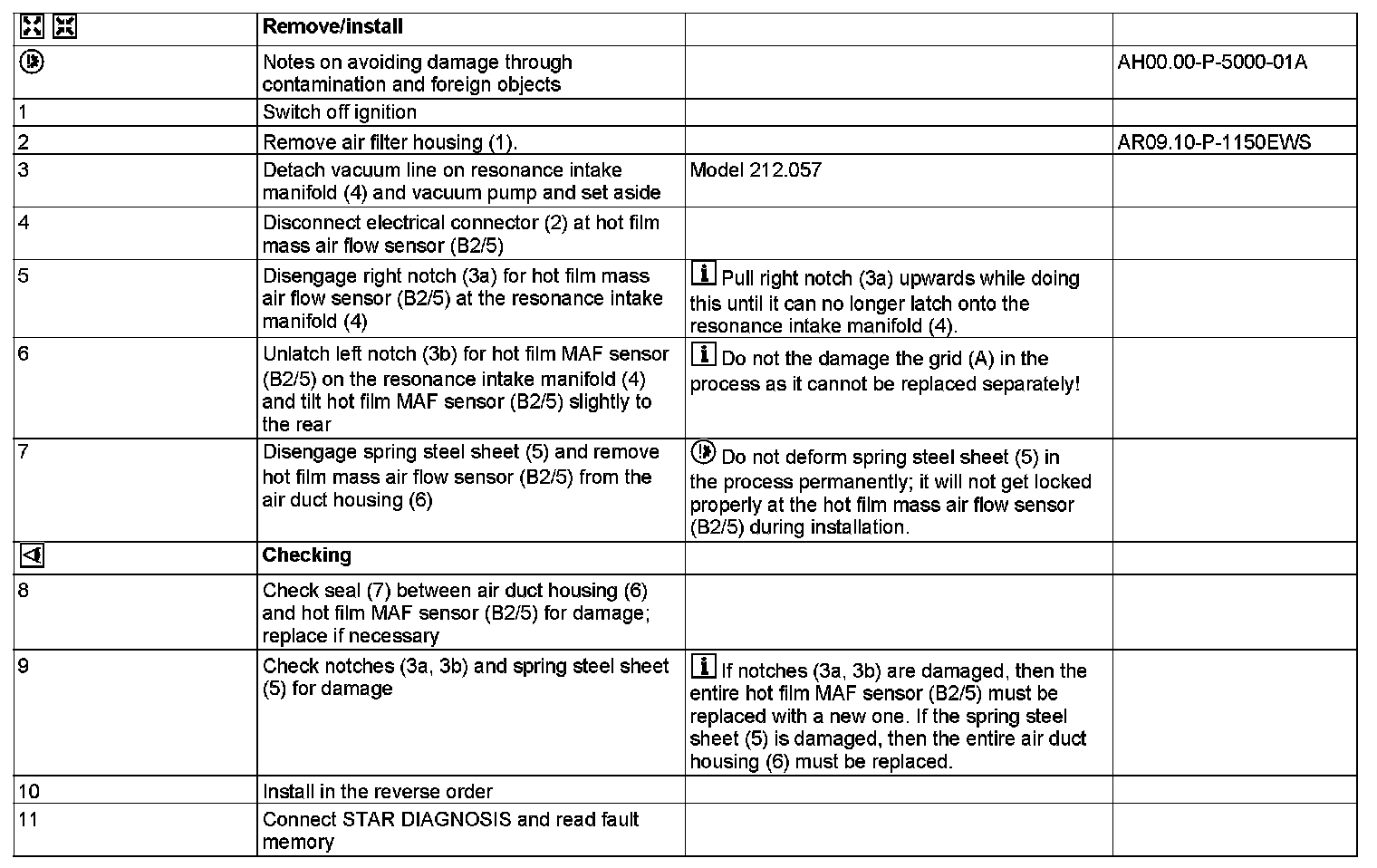

Steps 1 - 11:
