Oil Level Sensor: Service and Repair

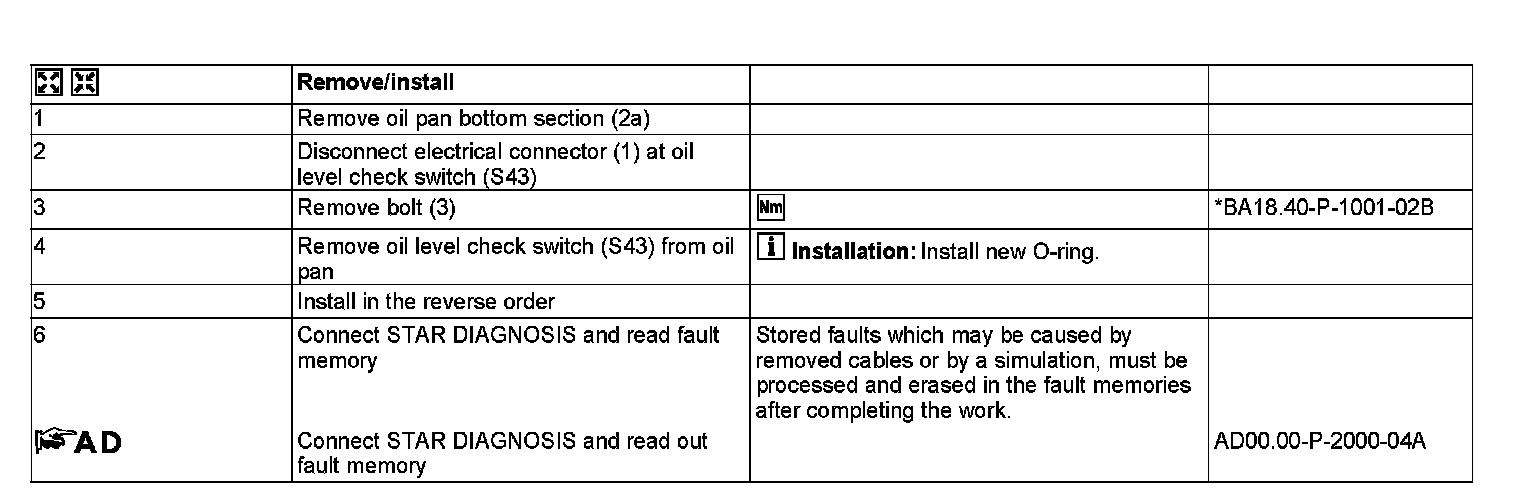

AR18.40-P-5113SX Remove/Install Oil Level Check Switch

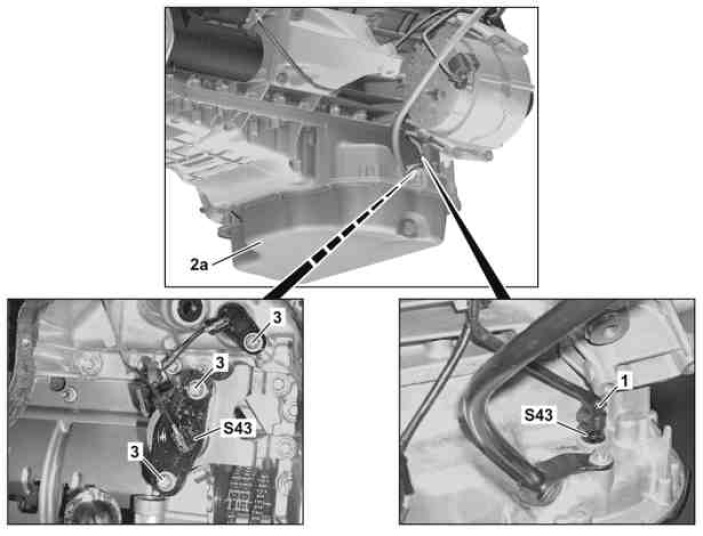

ENGINES 272, 273/





1 Electrical connector
2a Oil pan bottom section
3 Bolts

S43 Oil level check switch
