Collision Avoidance Sensor: Service and Repair

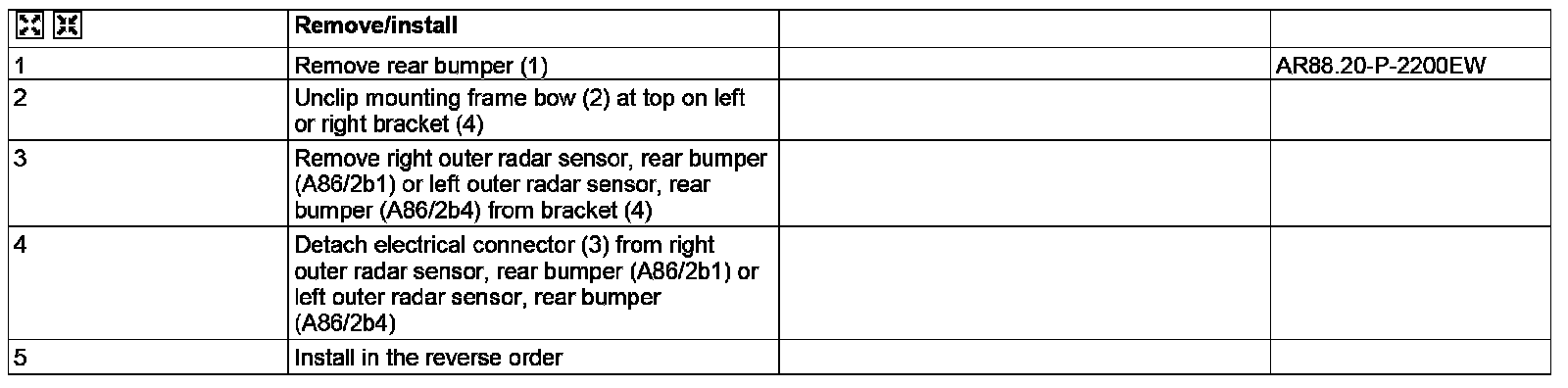

AR54.71-P-0100ES Remove/install Blind Spot Assist Sensors
- MODEL 212.2
- with CODE (234) Blind Spot Assist

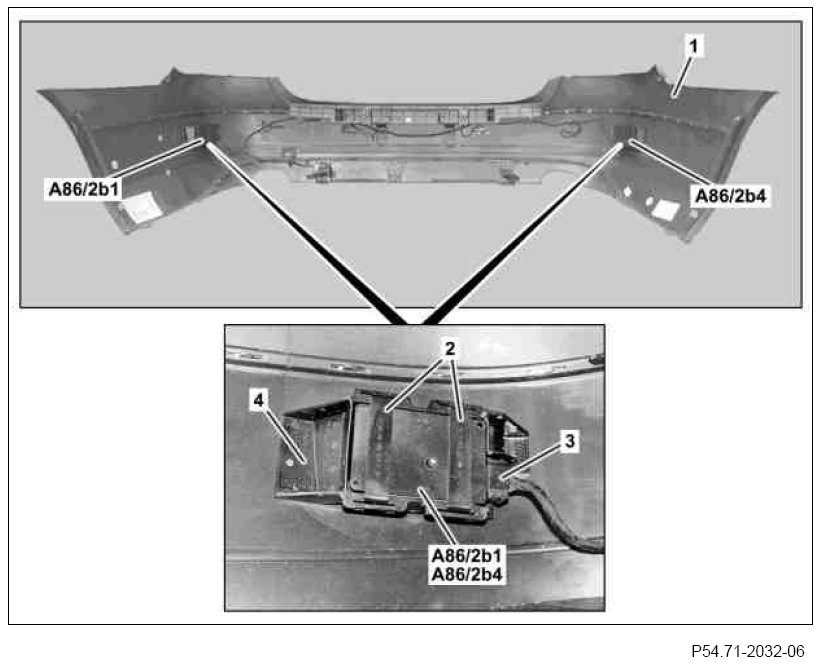

1 Rear bumper
2 Retaining clip
3 Electrical connector 4 Bracket
A86/2b1 Right outer radar sensor, rear bumper
A86/2b4 Left outer radar sensor, rear bumper
