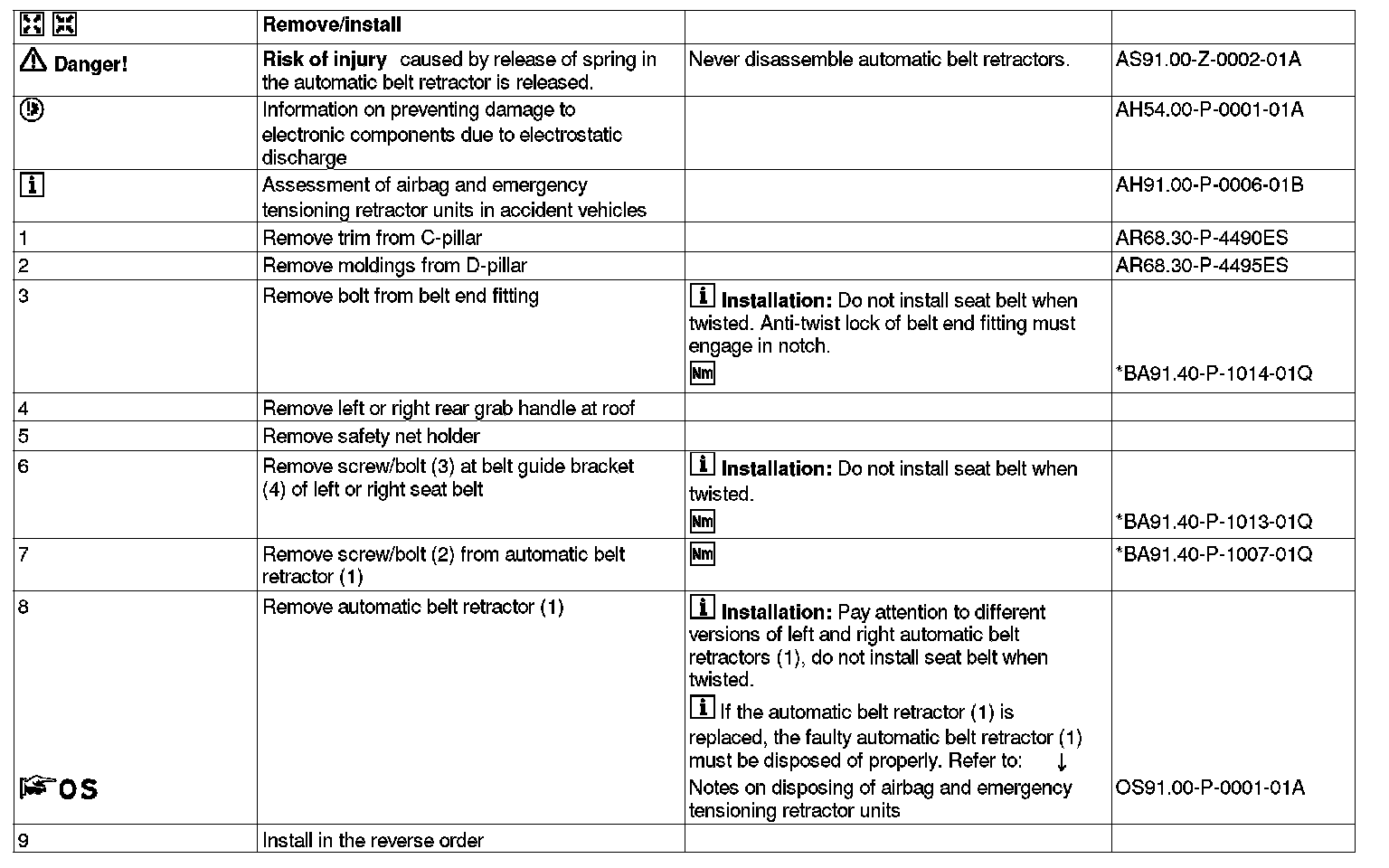

AR91.40-P-1220ES Remove/Install Seat Belt of Bench Seat In Cargo Area
AR91.40-P-1220ES Remove/install Seat Belt Of Bench Seat In Cargo Area

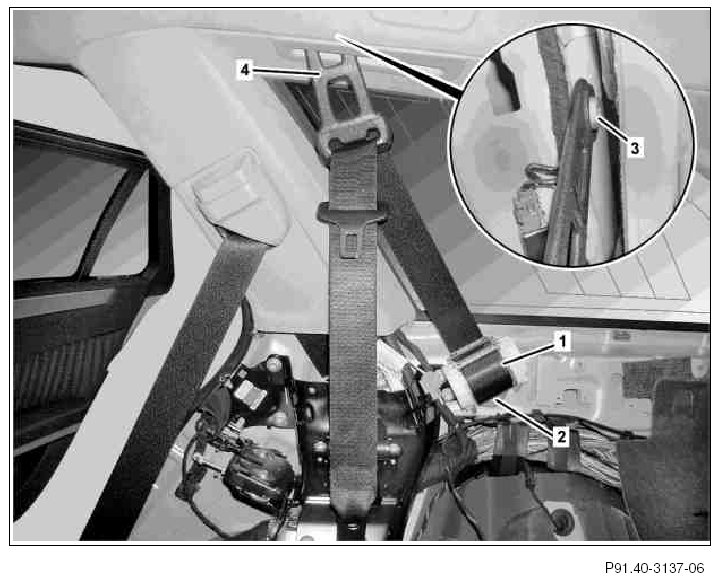

Shown on right side of vehicle
1 Automatic belt retractor
2 Screw
3 Screw
4 Seat belt guide bracket
AR91.40-P-1220ES Remove/install Seat Belt Of Bench Seat In Cargo Area
Shown on right side of vehicle
1 Automatic belt retractor
2 Screw
3 Screw
4 Seat belt guide bracket
