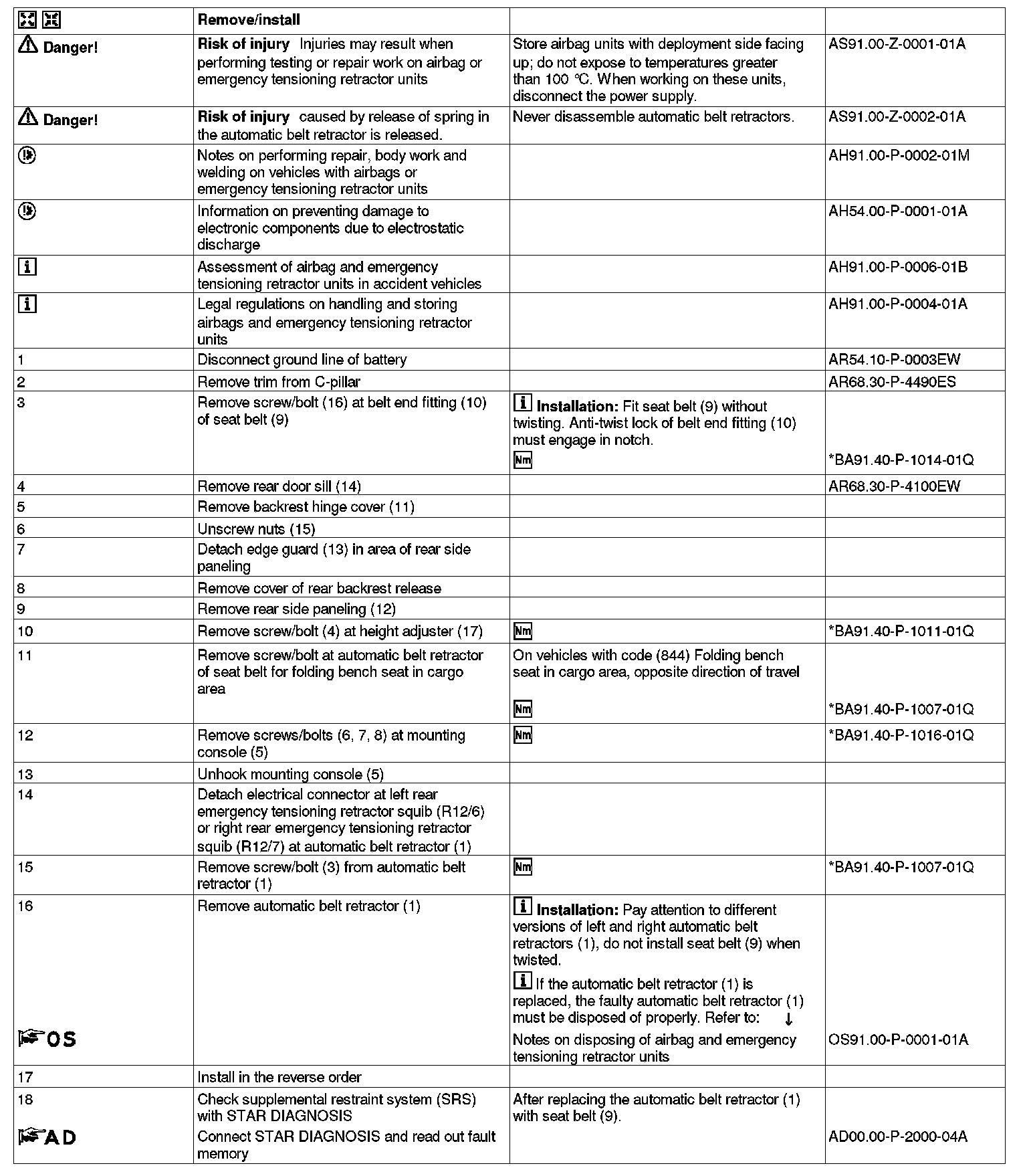

AR91.40-P-0681ES Remove/Install Rear Seat Belts

AR91.40-P-0681ES Remove/install Rear Seat Belts

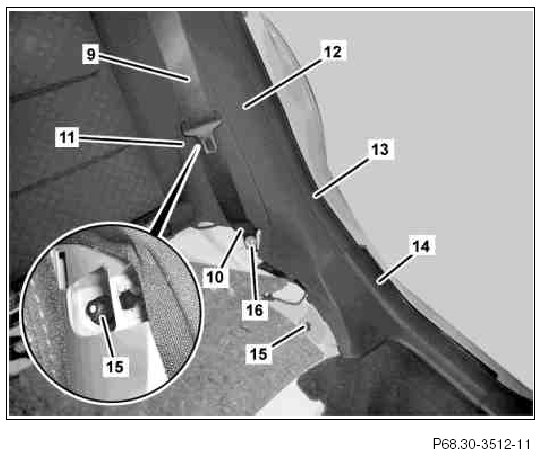

9 Seat belt
10 Belt end fitting
11 Backrest hinge cover
12 Rear side paneling
13 Edge guard
14 Rear door sill molding
15 Nuts
16 Screw

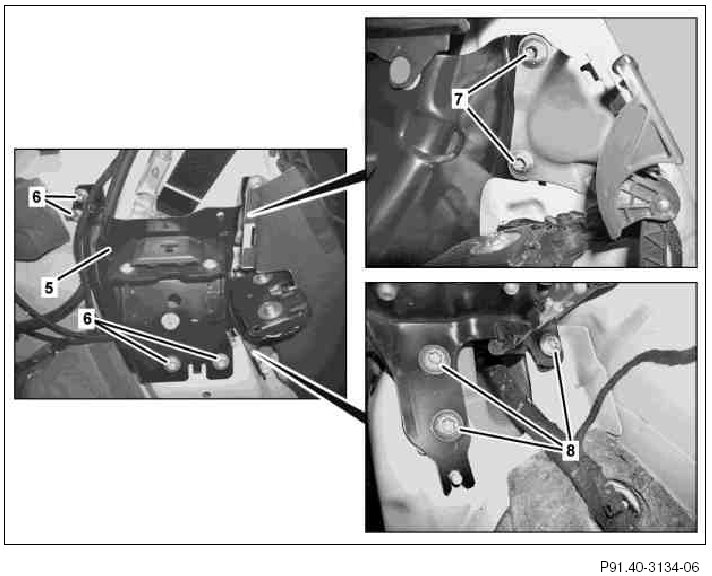

5 Mounting console
6 Screw
7 Screw
8 Screw










1 Automatic belt retractor
3 Screw
4 Screw

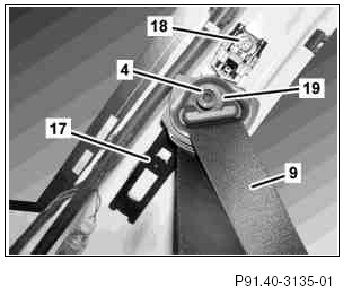

9 Seat belt
17 Height adjuster
18 Screw
19 Seat belt guide bracket
R12/6 Left rear emergency tensioning retractor squib
R12/7 Right rear emergency tensioning retractor squib
