AR91.40-P-1107ES Remove/Install Rear Seat Belt Height Adjuster

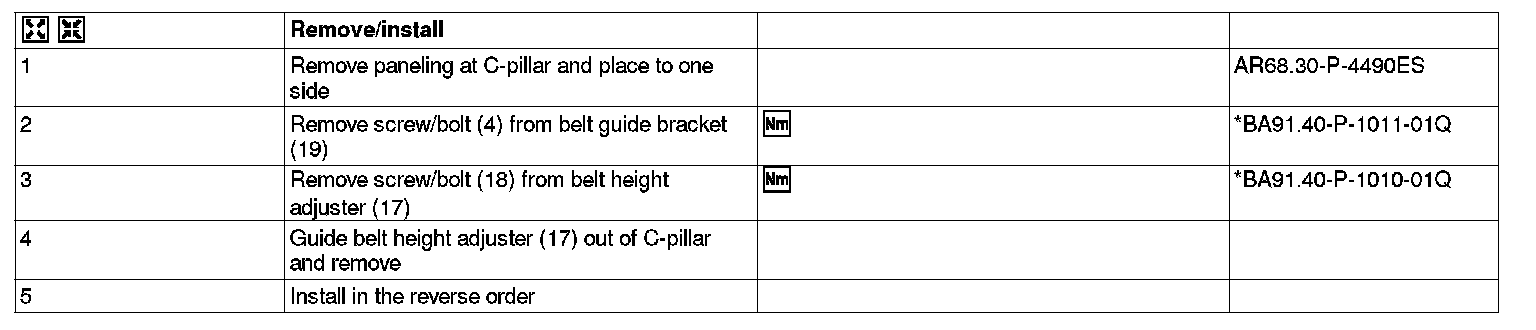

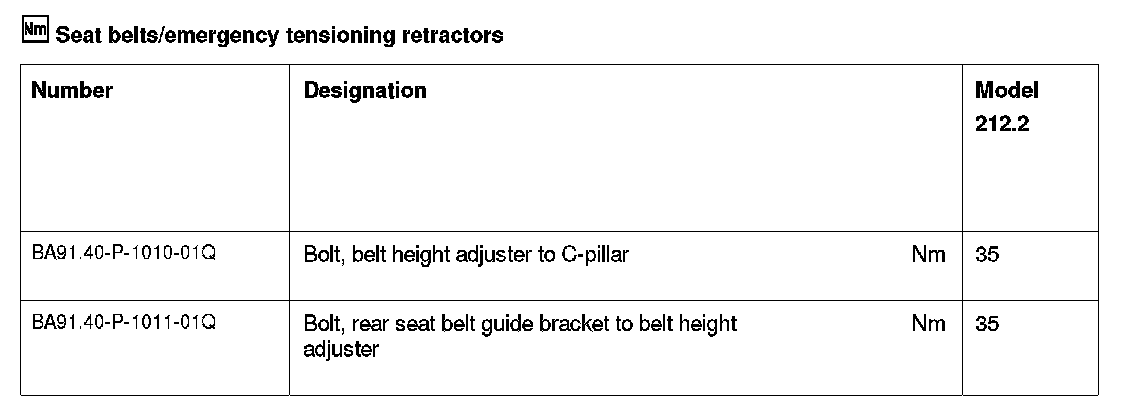

AR91.40-P-1107ES Remove/install Rear Seat Belt Height Adjuster

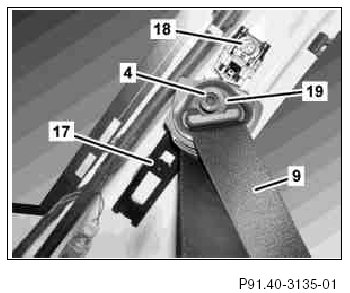

4 Screw
9 Seat belt
1 Height adjuster
18 Screw
19 Seat belt guide bracket
