GF09.20-P-6001V Component Description For the Variable Intake Manifold Switchover Valve

Component Description For The Variable Intake Manifold Switchover Valve

Component Identification:

Location

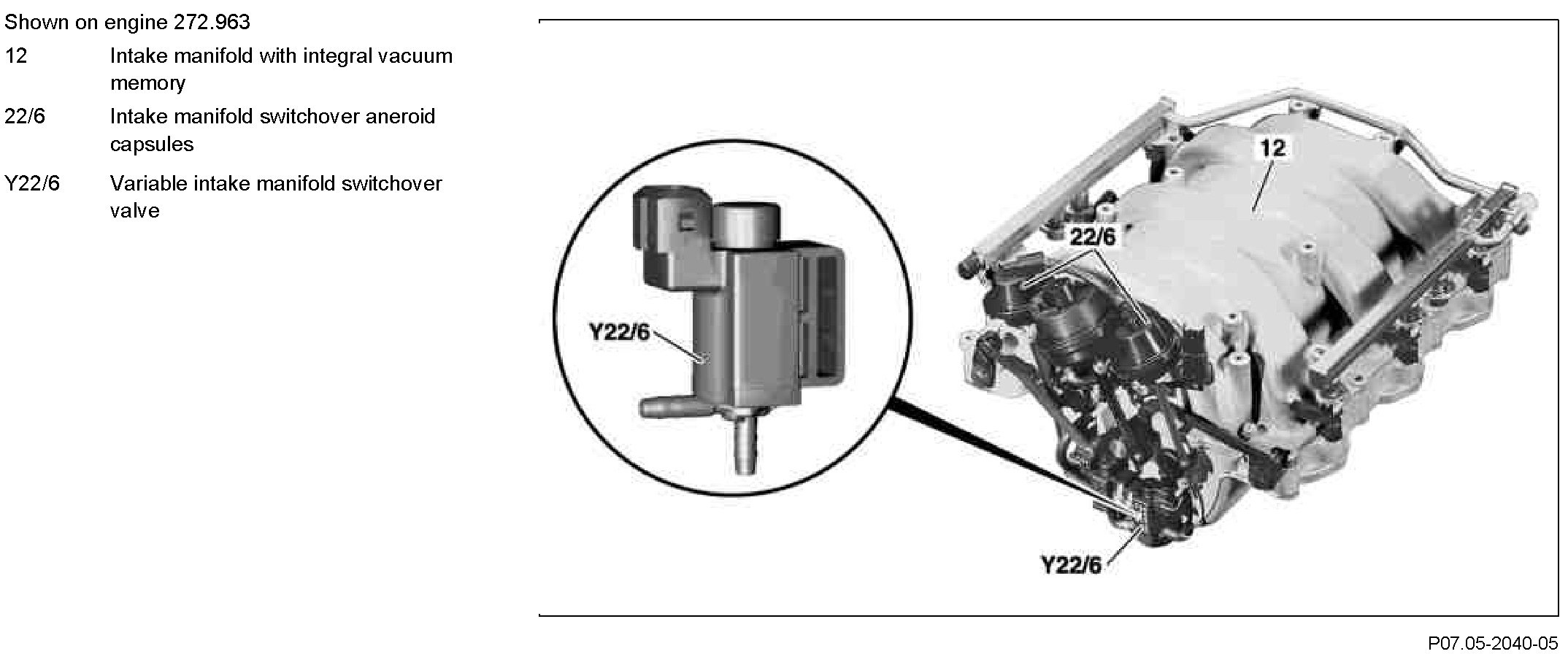

The variable intake manifold switchover valve is mounted at the front of the variable intake manifold.


Task
Pressurize intake manifold switchover aneroid capsules with vacuum or admitting air.

Design
Electromagnetic switchover valve in the plastic housing, coil resistance approx. 30 t. Ventilation via cap.

Component Identification:

Function
The variable intake manifold switchover valve is actuated on the earth side by the engine control unit through its own output stage.
The voltage is supplied through circuit 87.

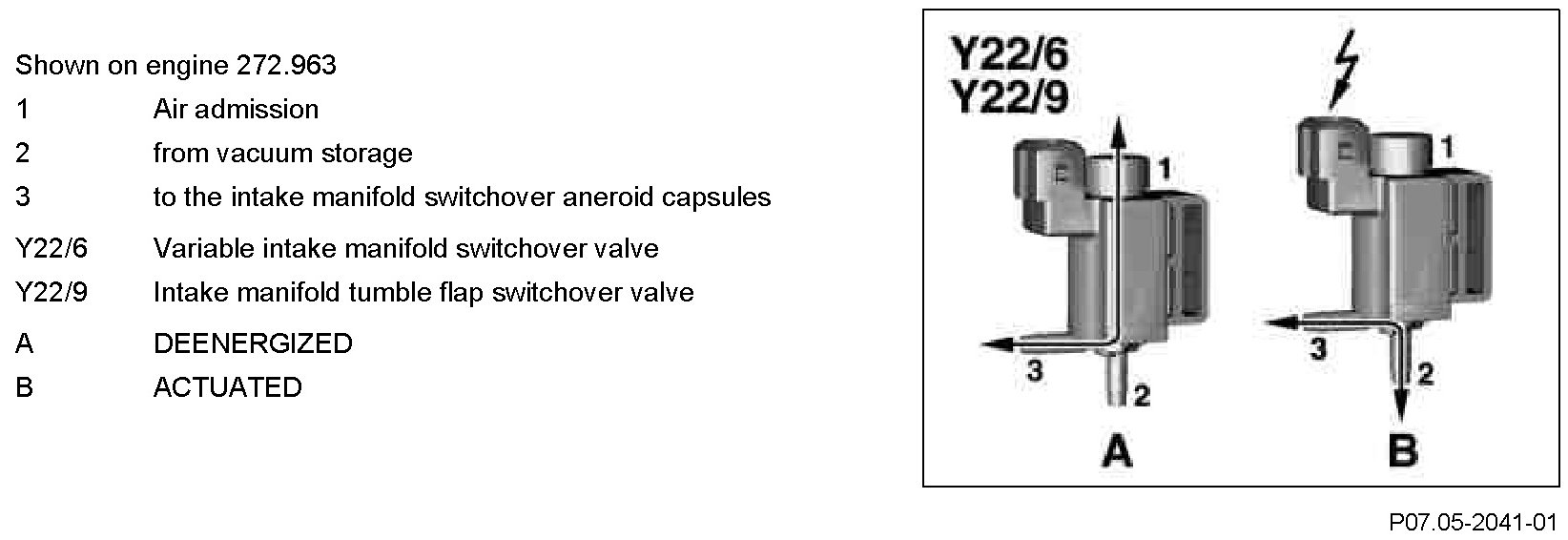

A valve plate operated by a coil armature shifts between atmosphere and vacuum storage.
