Intake Air Duct: Service and Repair
AR09.20-P-0080EW Remove/Install Air Duct Housing

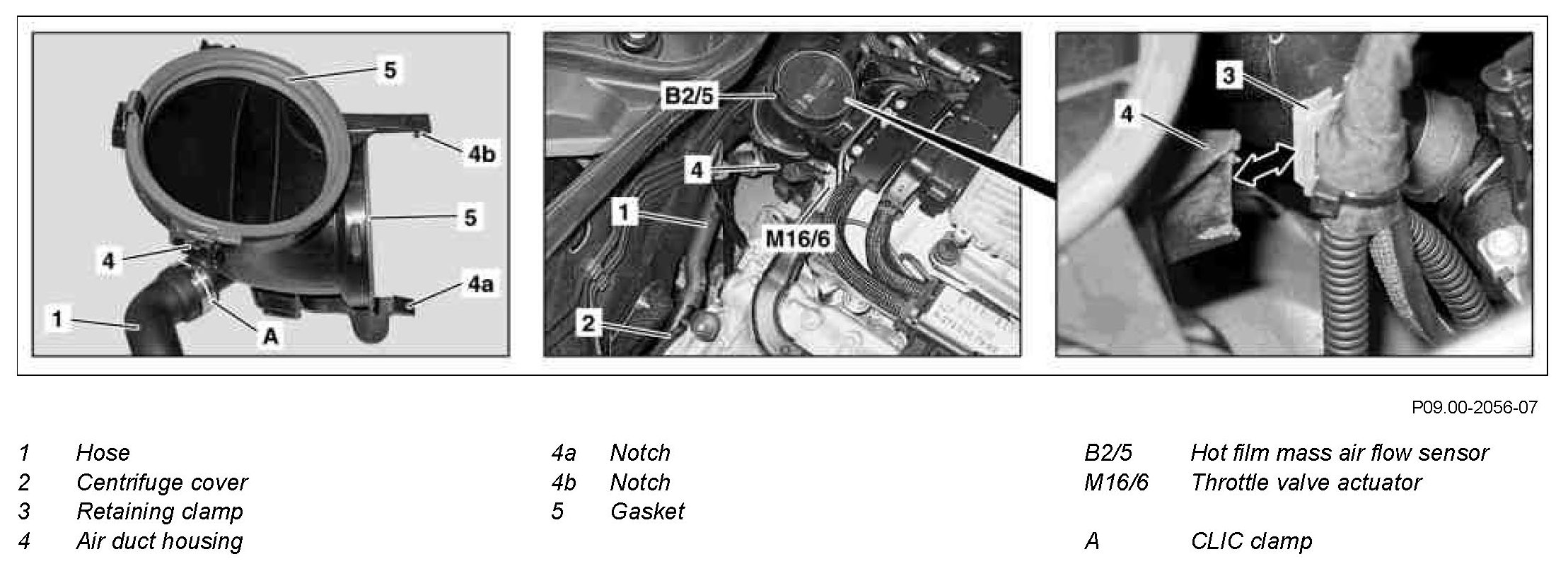

Component Identification:

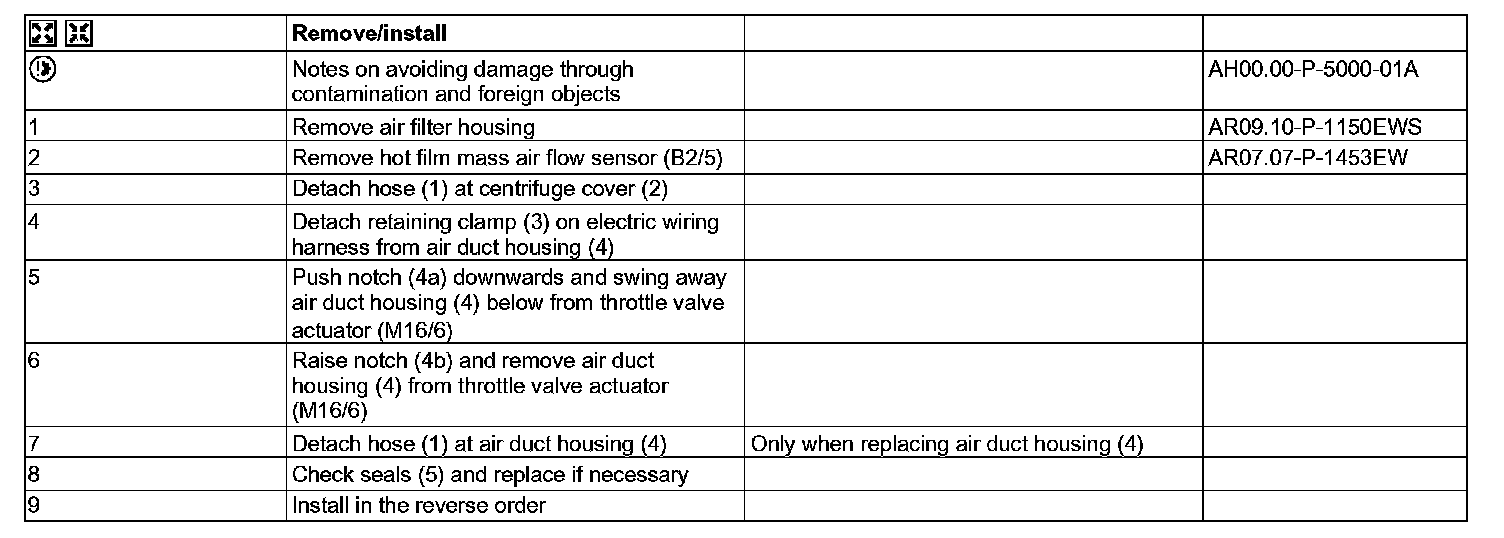

Steps 1 - 9:
