AR47.10-P-4001EW Empty/Fill Fuel Tank
AR47.10-P-4001EW Empty/Fill Fuel Tank
AR47.10-P-4001EW Empty/Fill
Fuel Tank

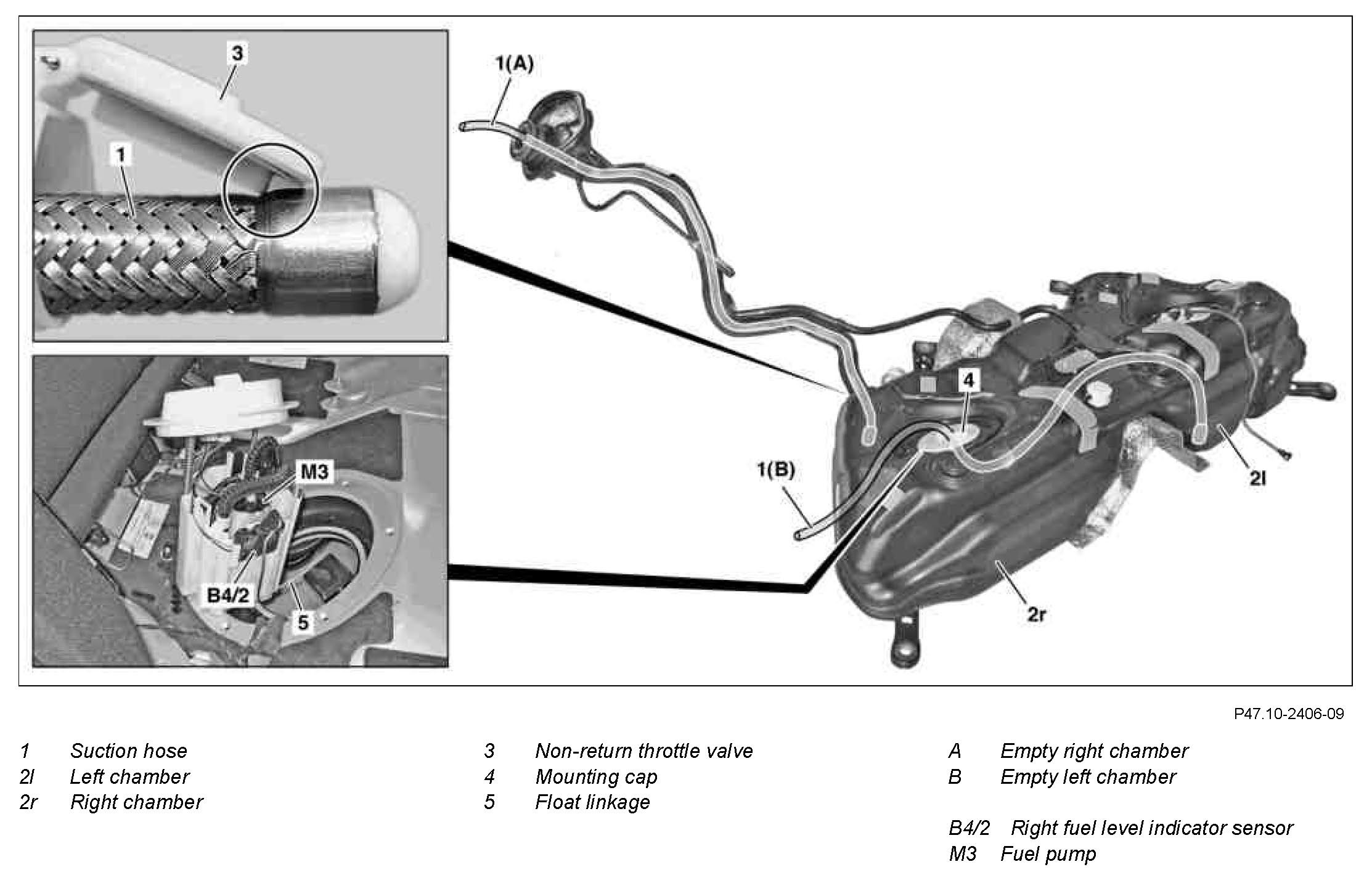

Component Identification:

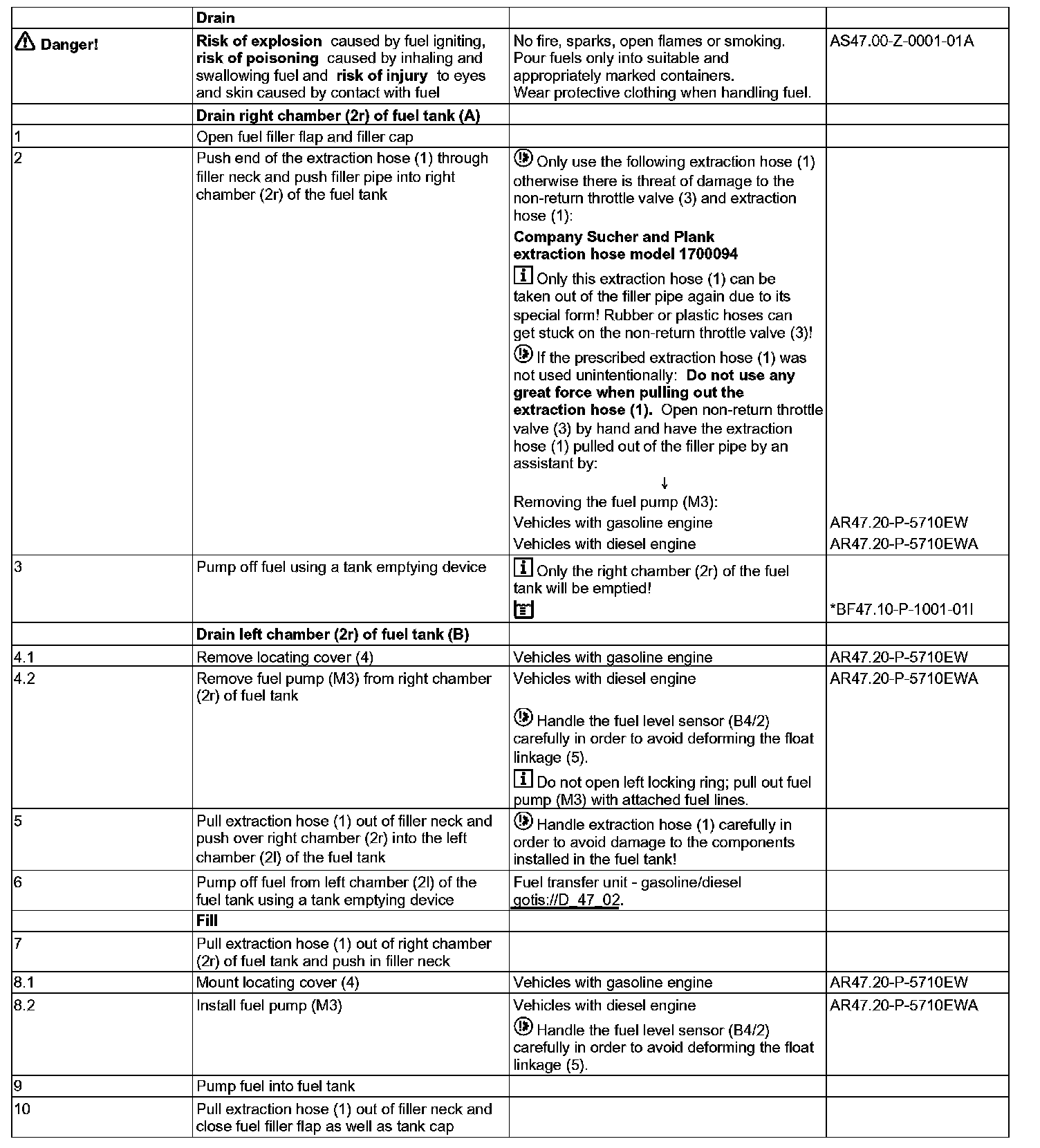

Steps 1 - 10:

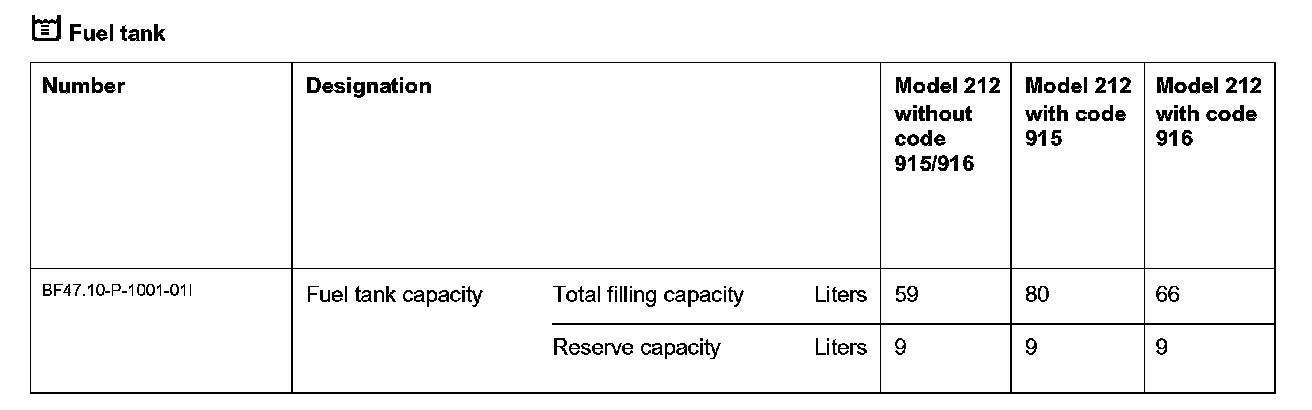

Fuel Tank:
