Fuel Pump: Service and Repair
AR47.20-P-5710EW Remove/Install
Fuel Pump

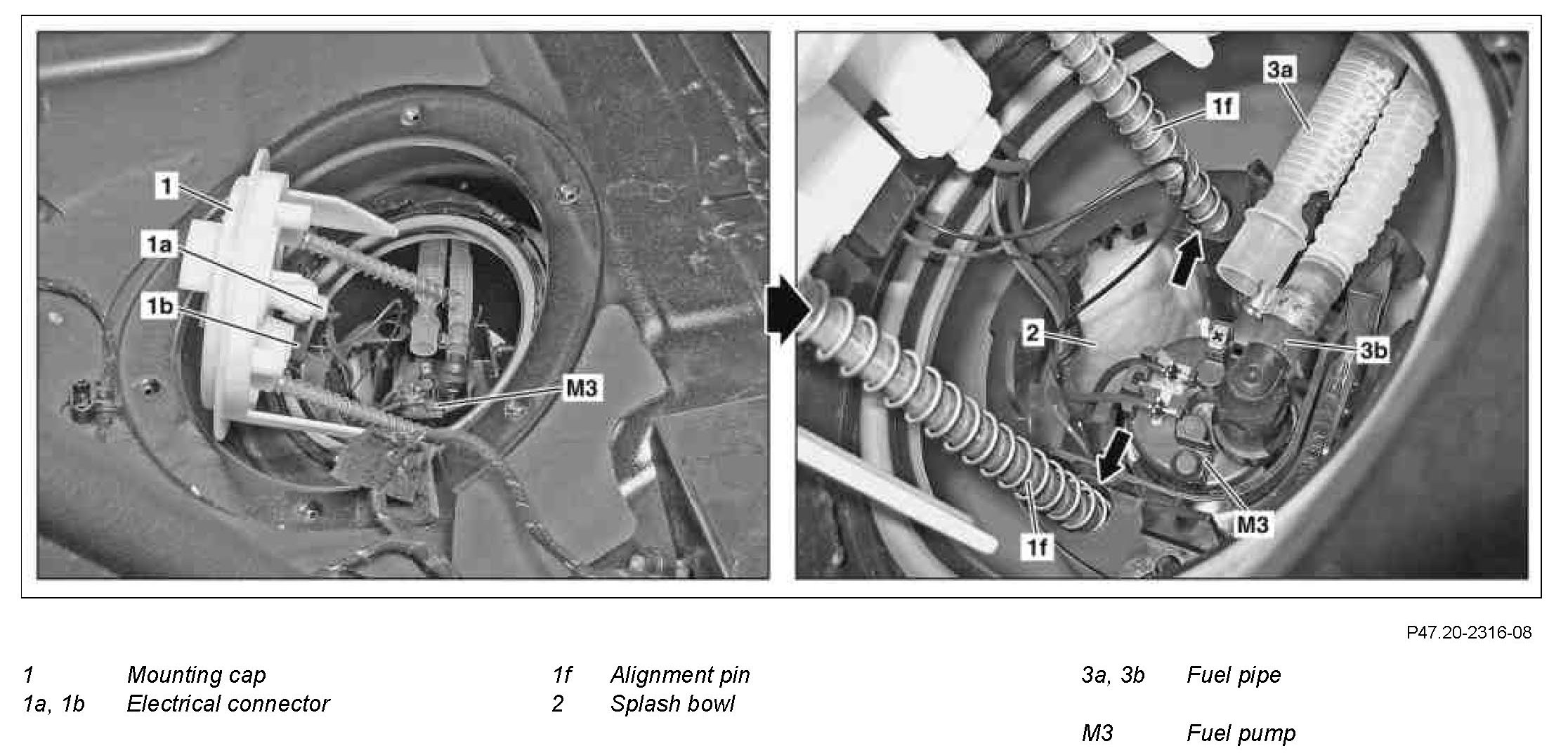

Component Identification:

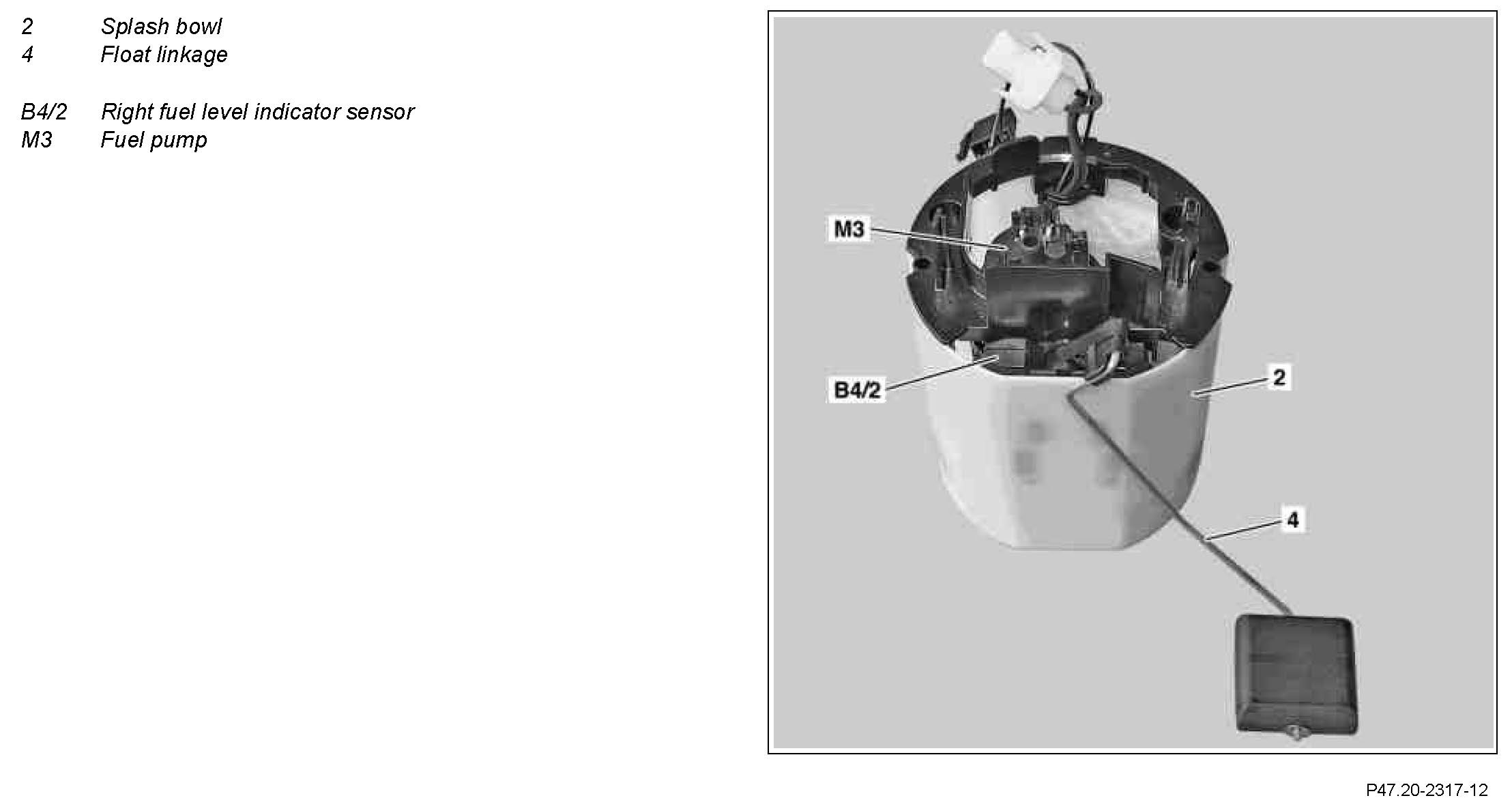

Component Identification:

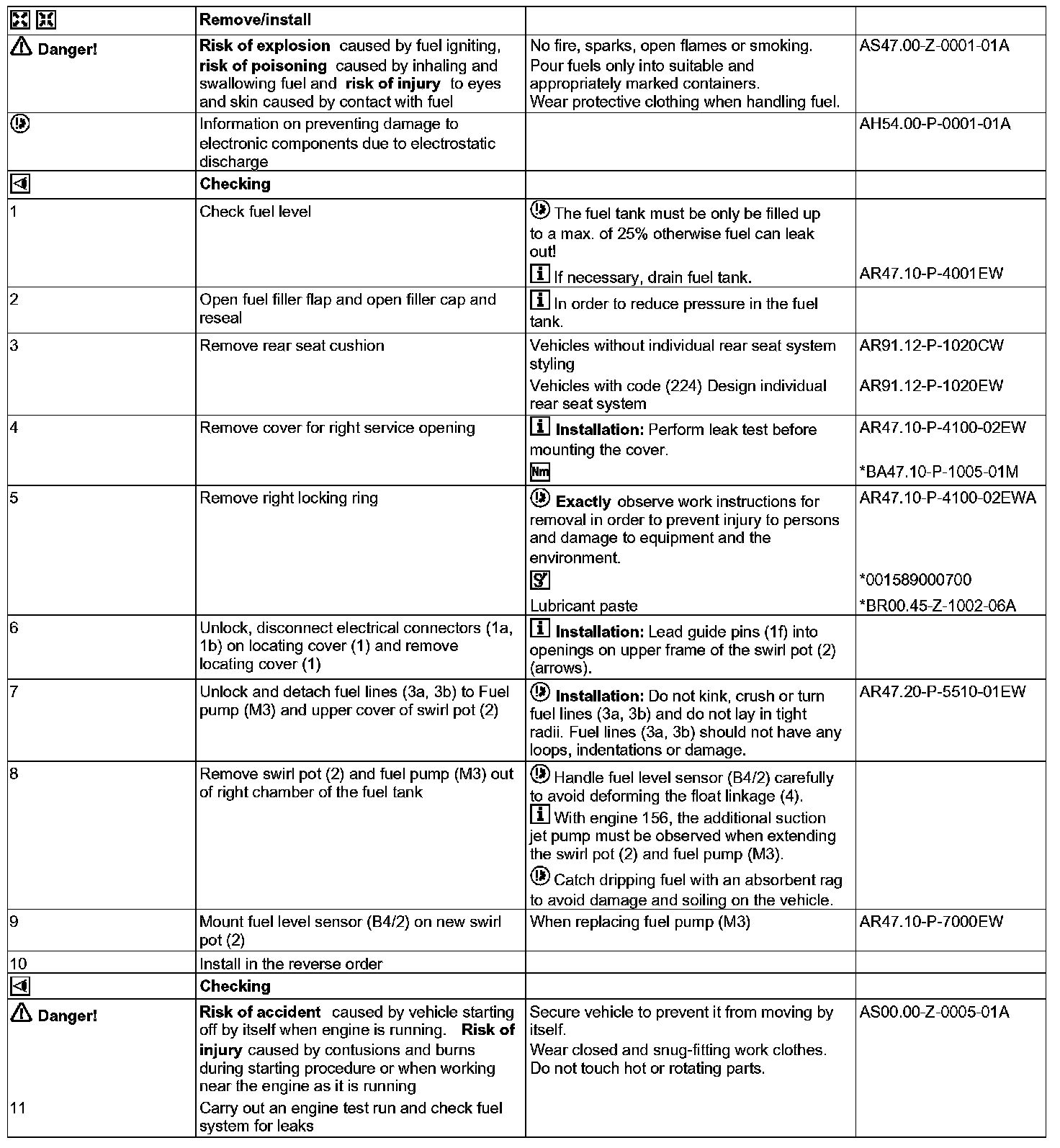

Steps 1 - 11:

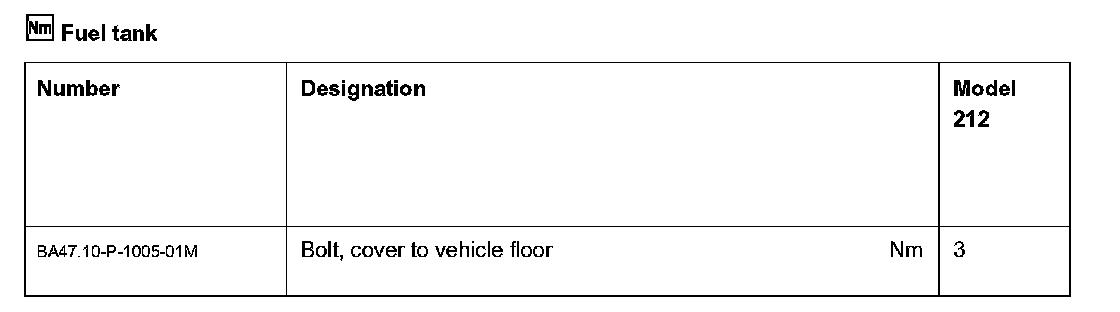

Fuel Tank:

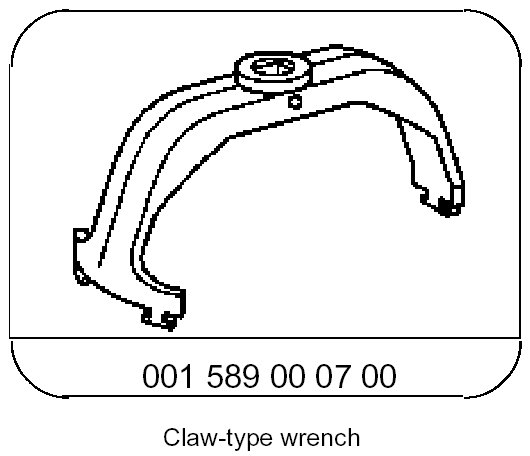

Special Tools:

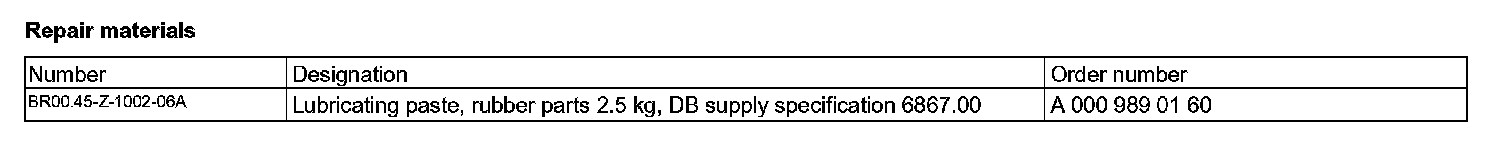

Repair Materials:
