AR07.03-P-6520EW Remove/Install Injection Valves (ME-SFI)
AR07.03-P-6520EW Remove/Install Injection Valves (ME-SFI)
AR07.03-P-6520EW Remove/Install Injection Valves (ME-SFI)

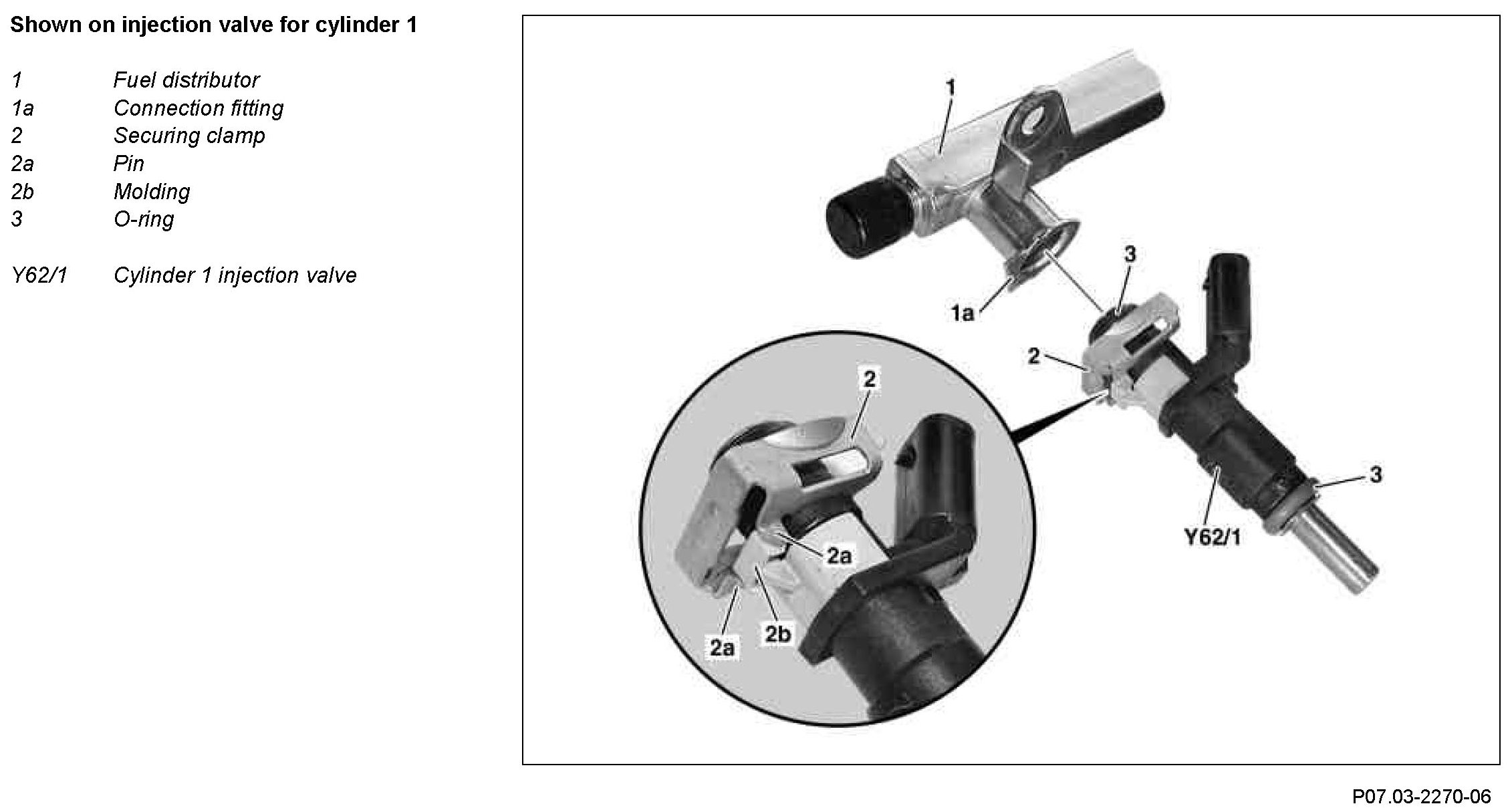

Component Identification:

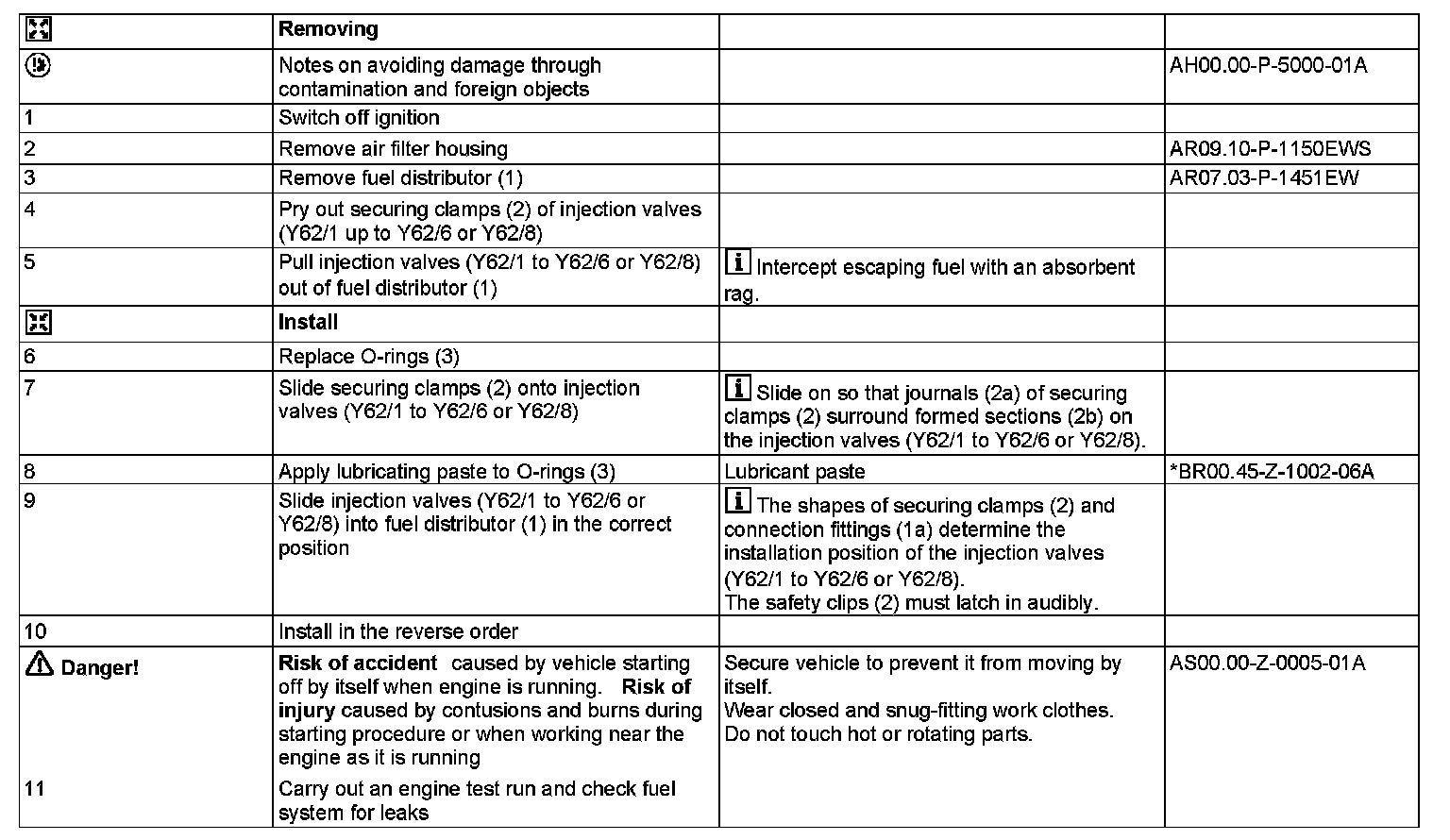

Steps 1 - 11:

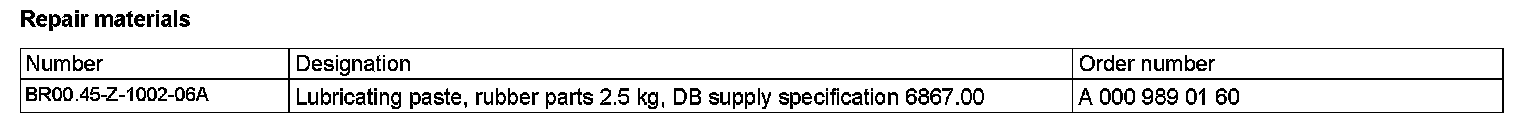

Repair Materials:
