AR07.03-P-1451EW Remove/Install Fuel Distributor With Injection Valves (ME-SFI)

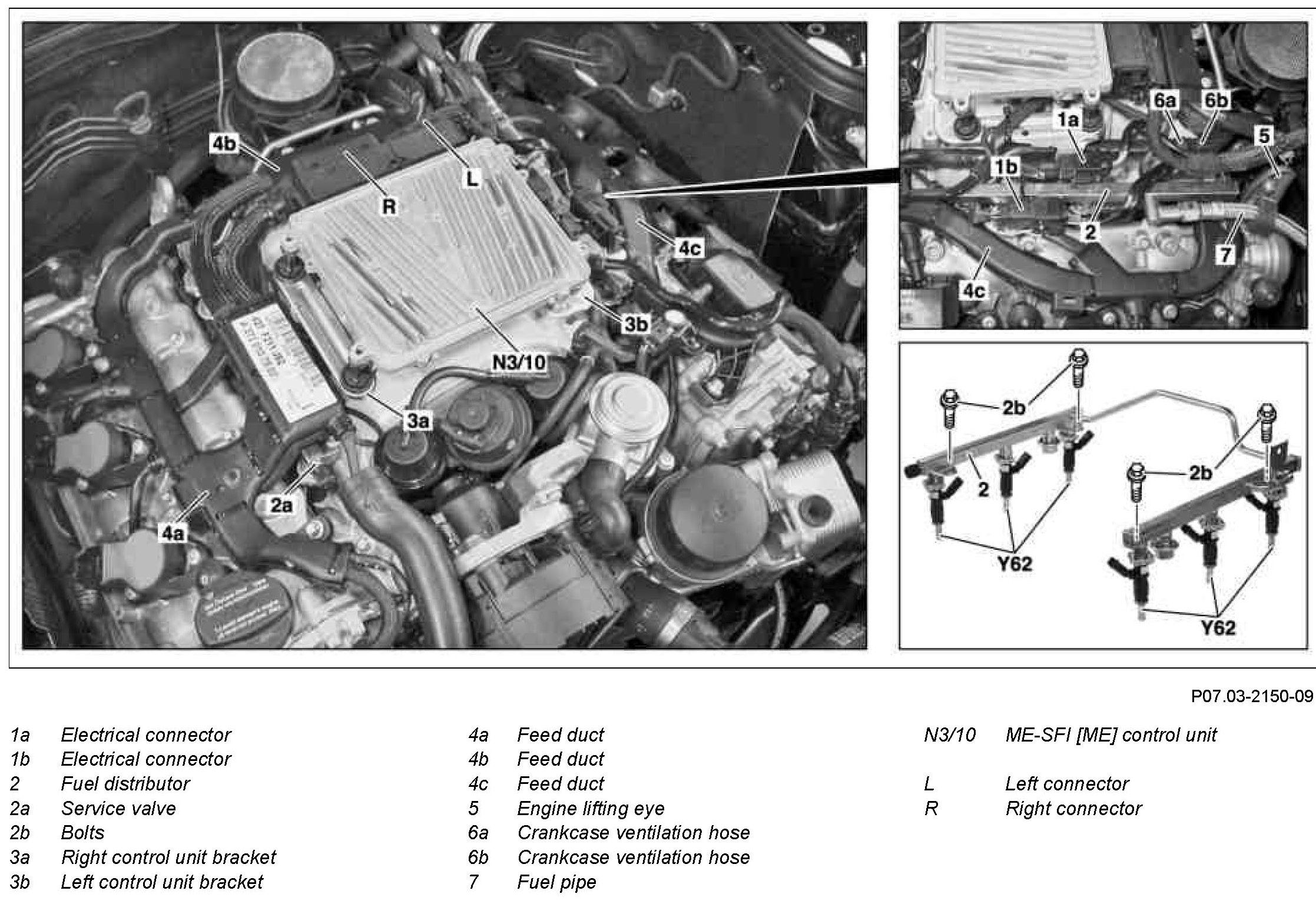

Component Identification:

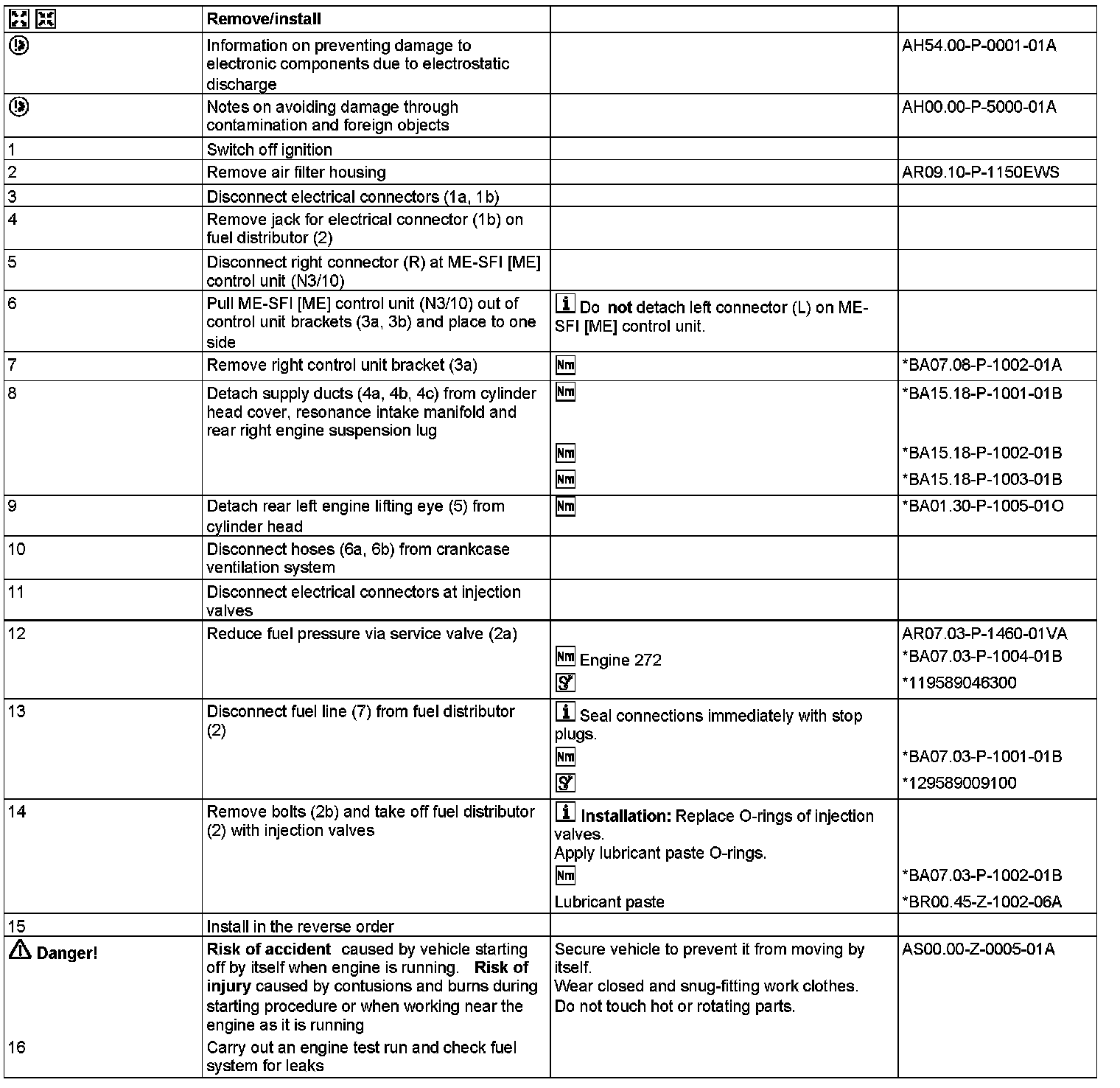

Steps 1 - 16:

Control Unit:

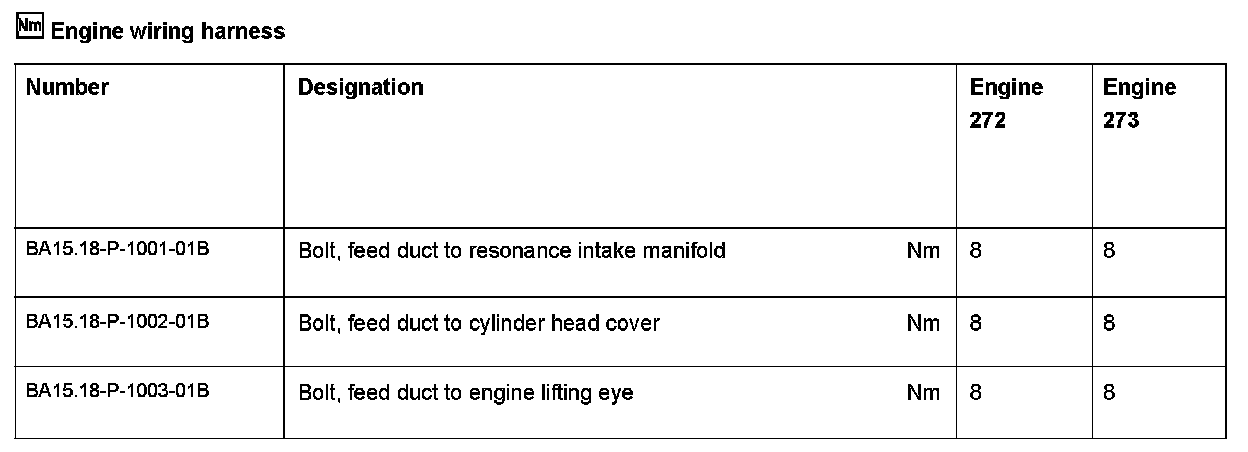

Engine Wiring Harness:

Cylinder Head:

Injectors, Injection Valves, Lines:

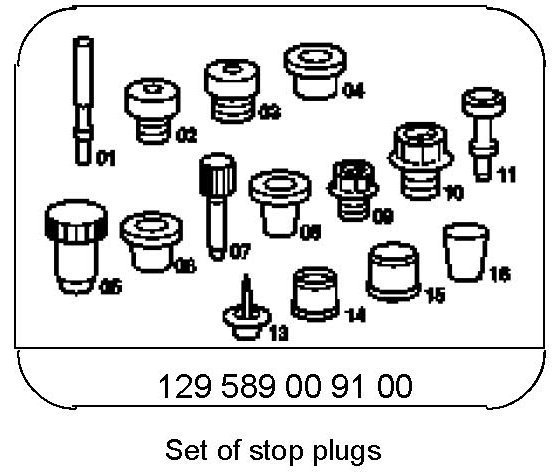

Special Tools:

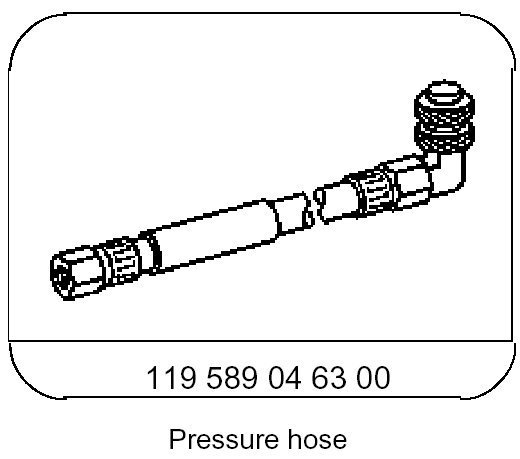

Special Tools:

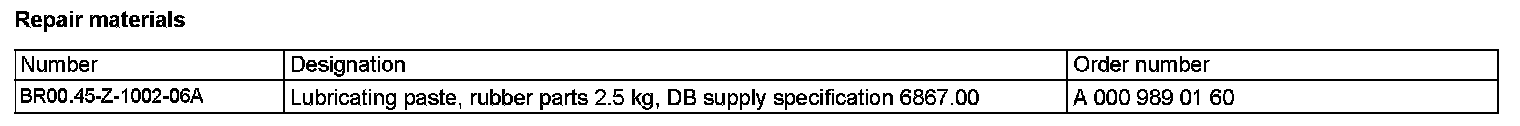

Repair Materials:
