Home >> Mercedes Benz >> 2011 >> E 350 4MATIC Wagon (212.287) V6-3.5L (272.977) >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Positive Crankcase Ventilation >> Specifications

Positive Crankcase Ventilation: Specifications

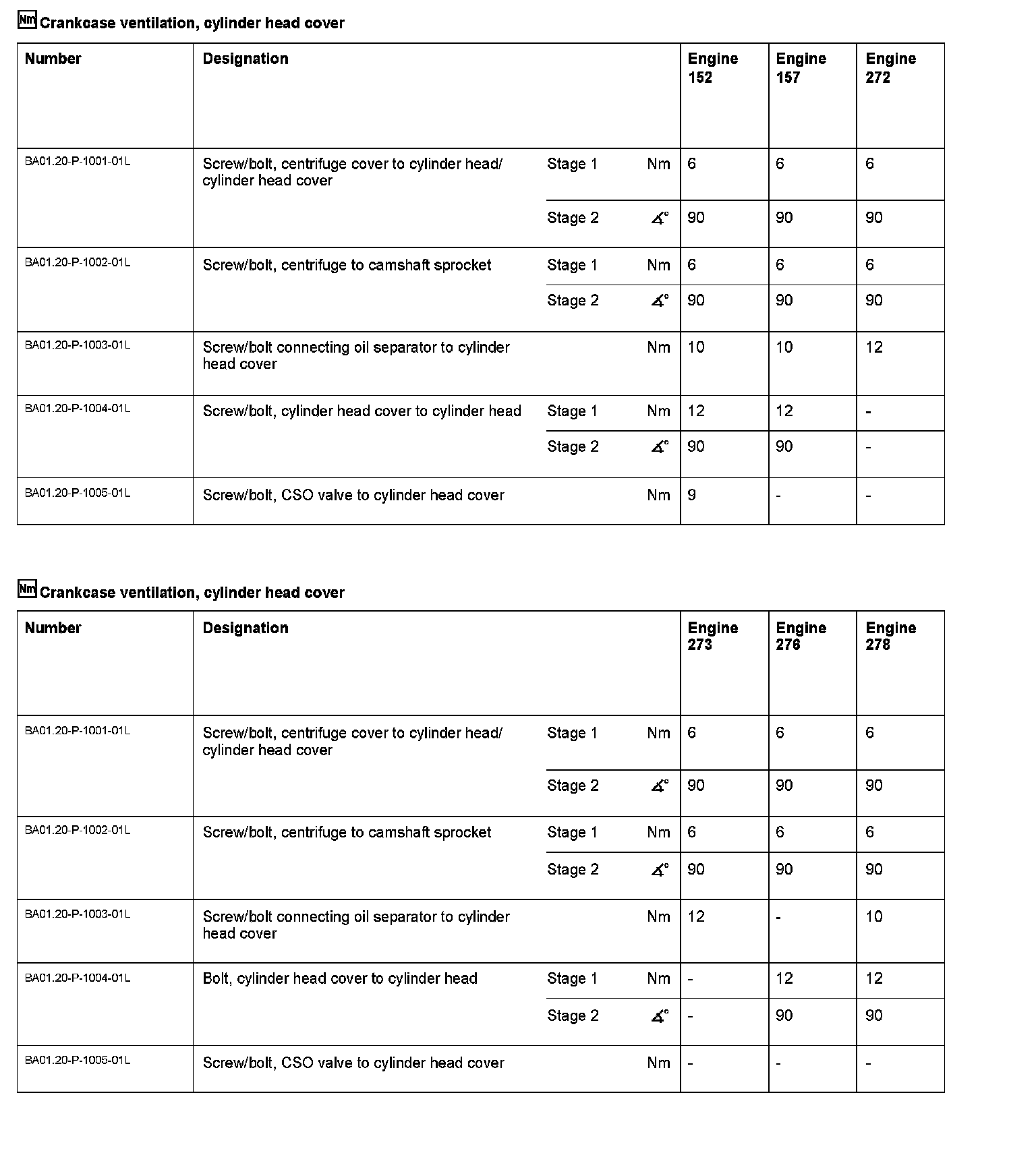

BA01.20-P-1000-01L Crankcase Ventilation, Cylinder Head Cover
ENGINE 152, 157, 272, 273, 276, 278
