Oil Separator: Service and Repair
AR01.20-P-9750EWS Remove/install
oil separator

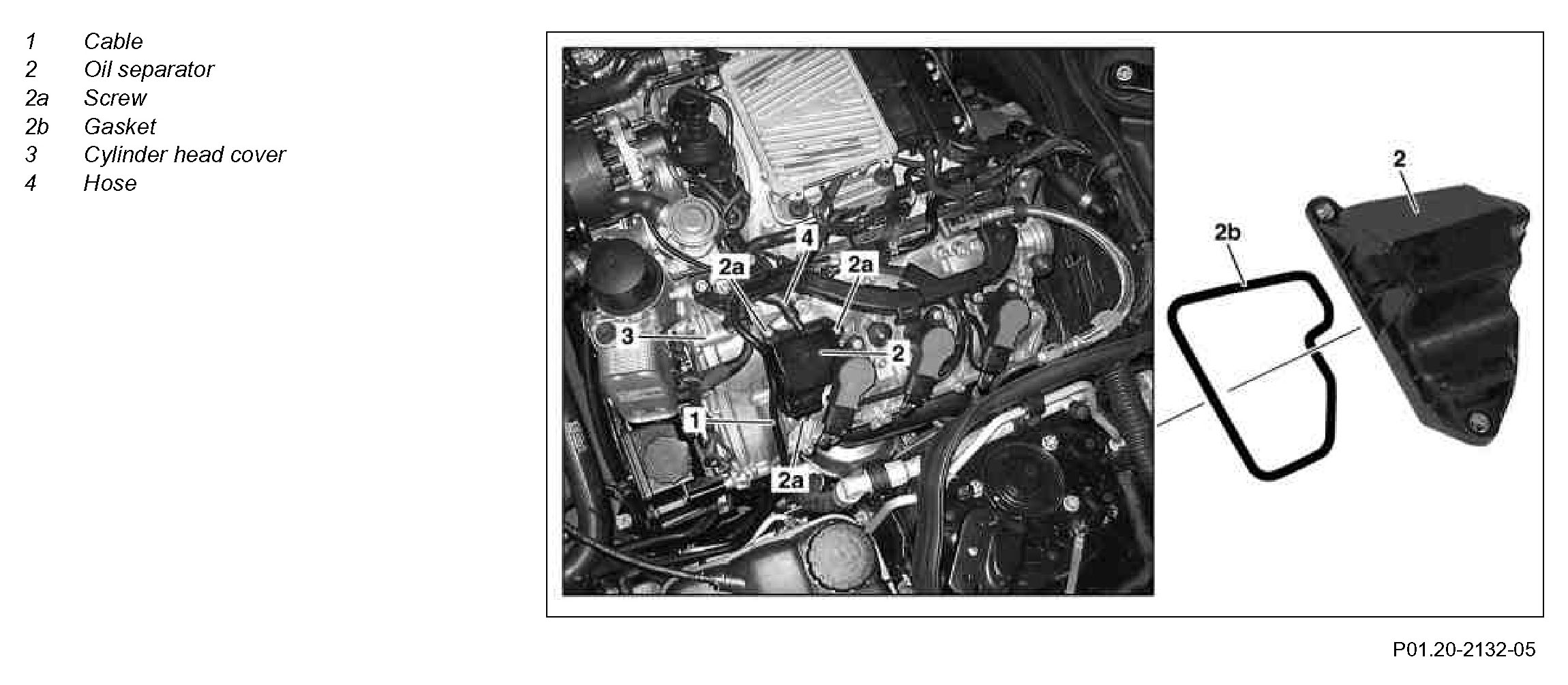

Component Identification:

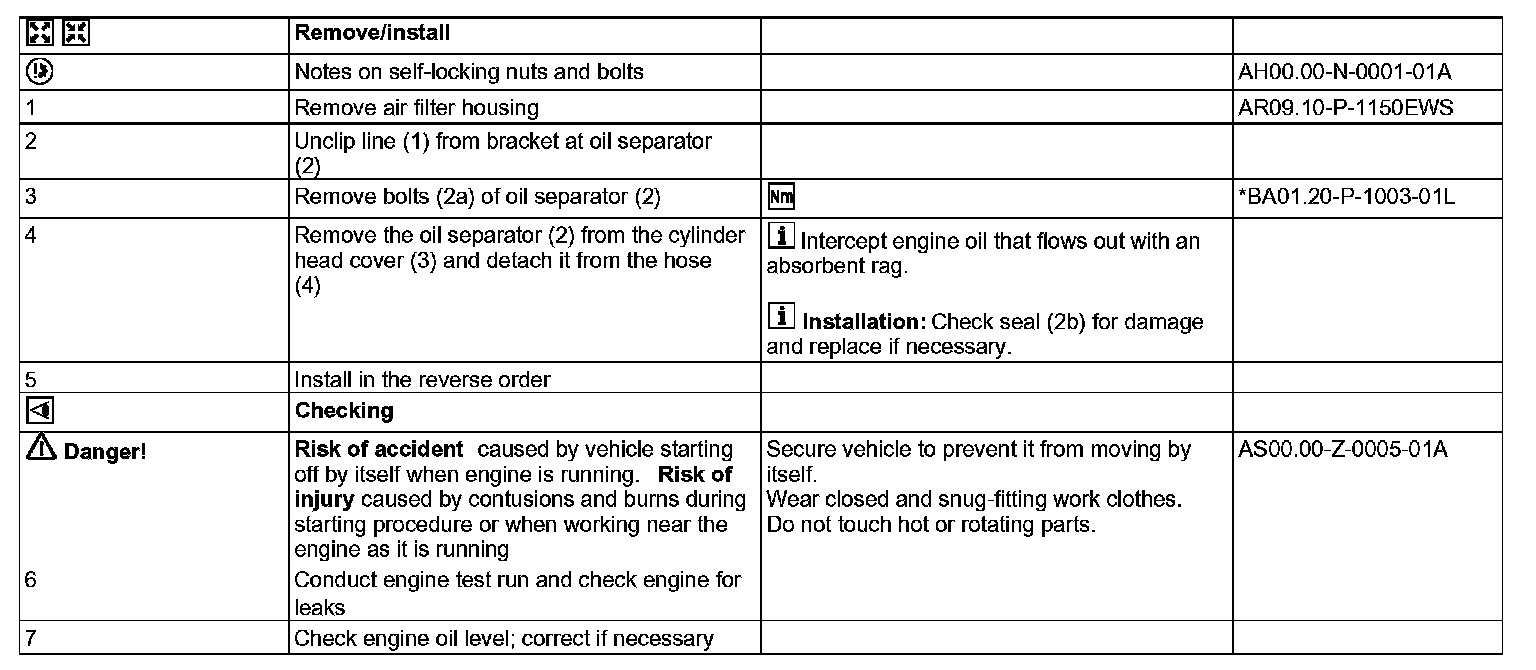

Steps 1-7:

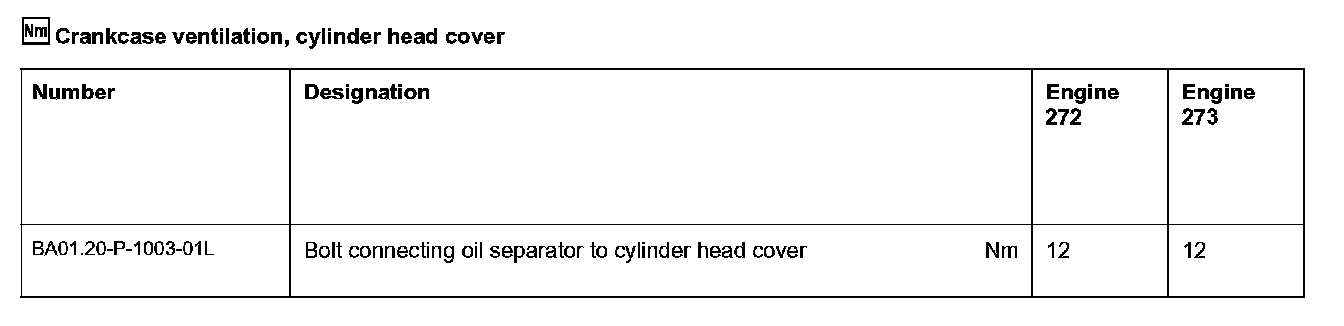

Crankcase ventilation, cylinder head cover:
