AR47.30-P-8212EWU Remove/ Install Activated Charcoal Canister



AR47.30-P-8212EWU Remove/ Install Activated Charcoal Canister
- with CODE (494) USA version

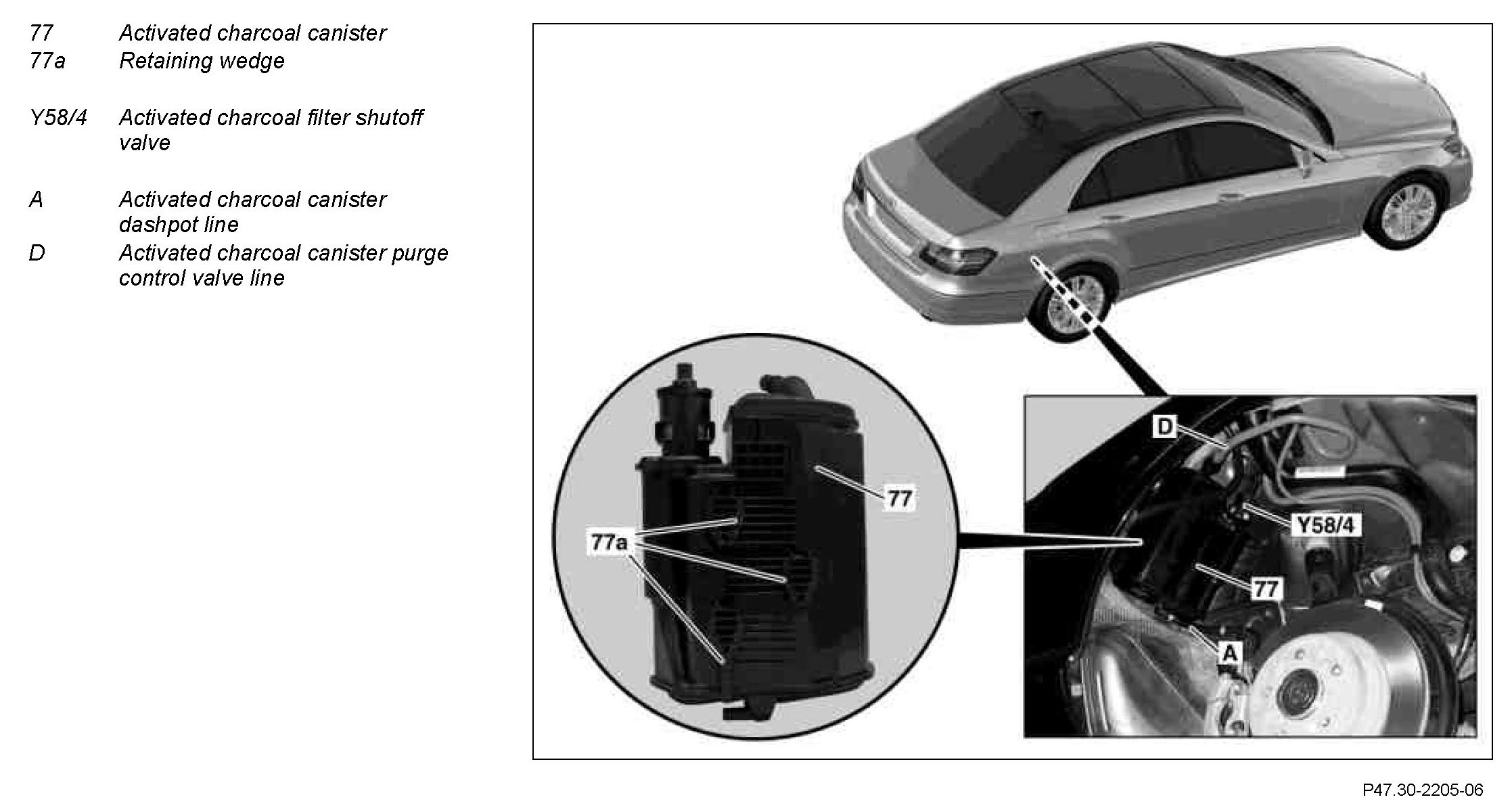

Component Identification:

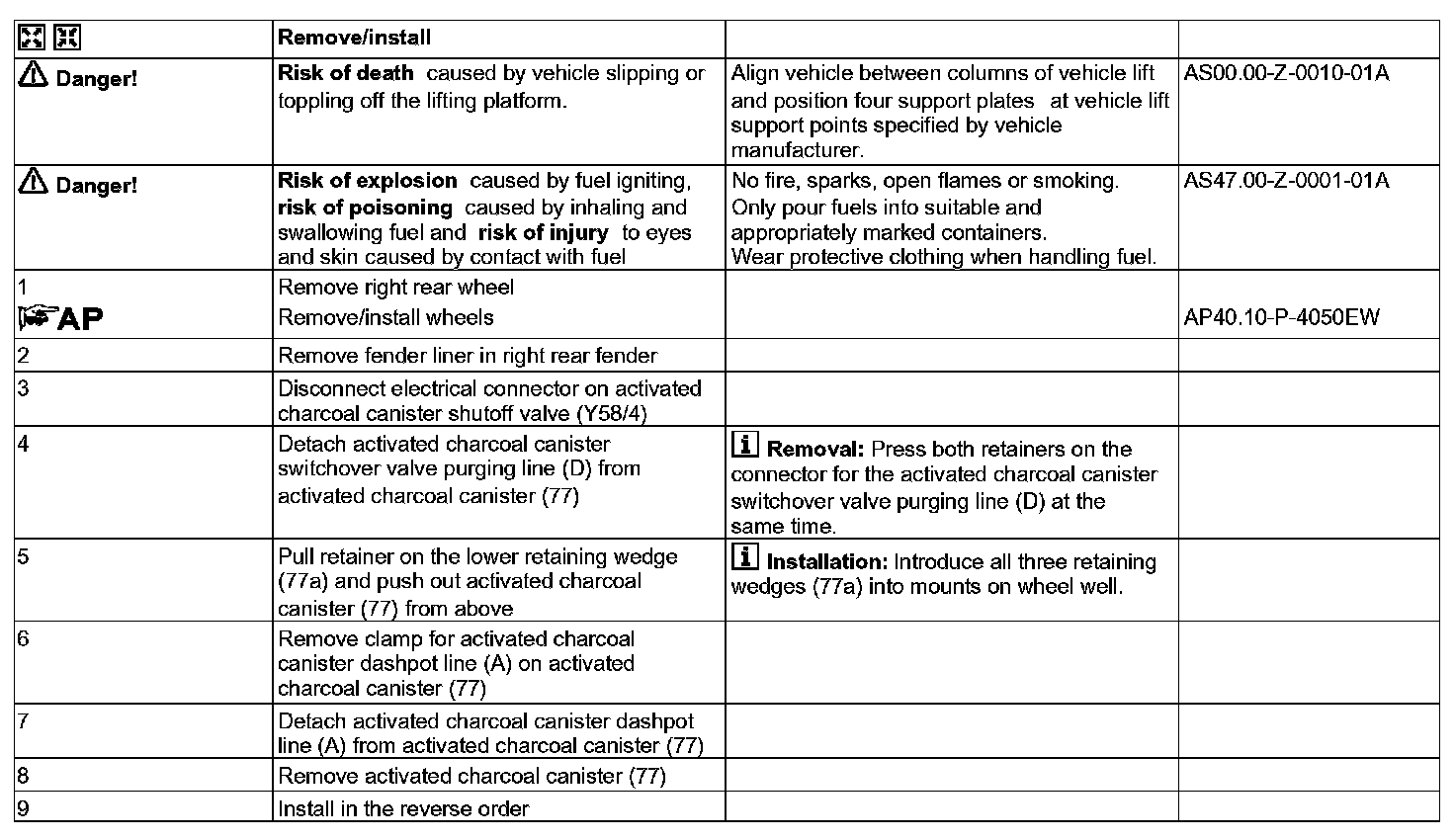

Steps 1 - 9:
