Air Injection Control Valve: Service and Repair
AR14.30-P-7255EW Remove/install air pump switchover valve

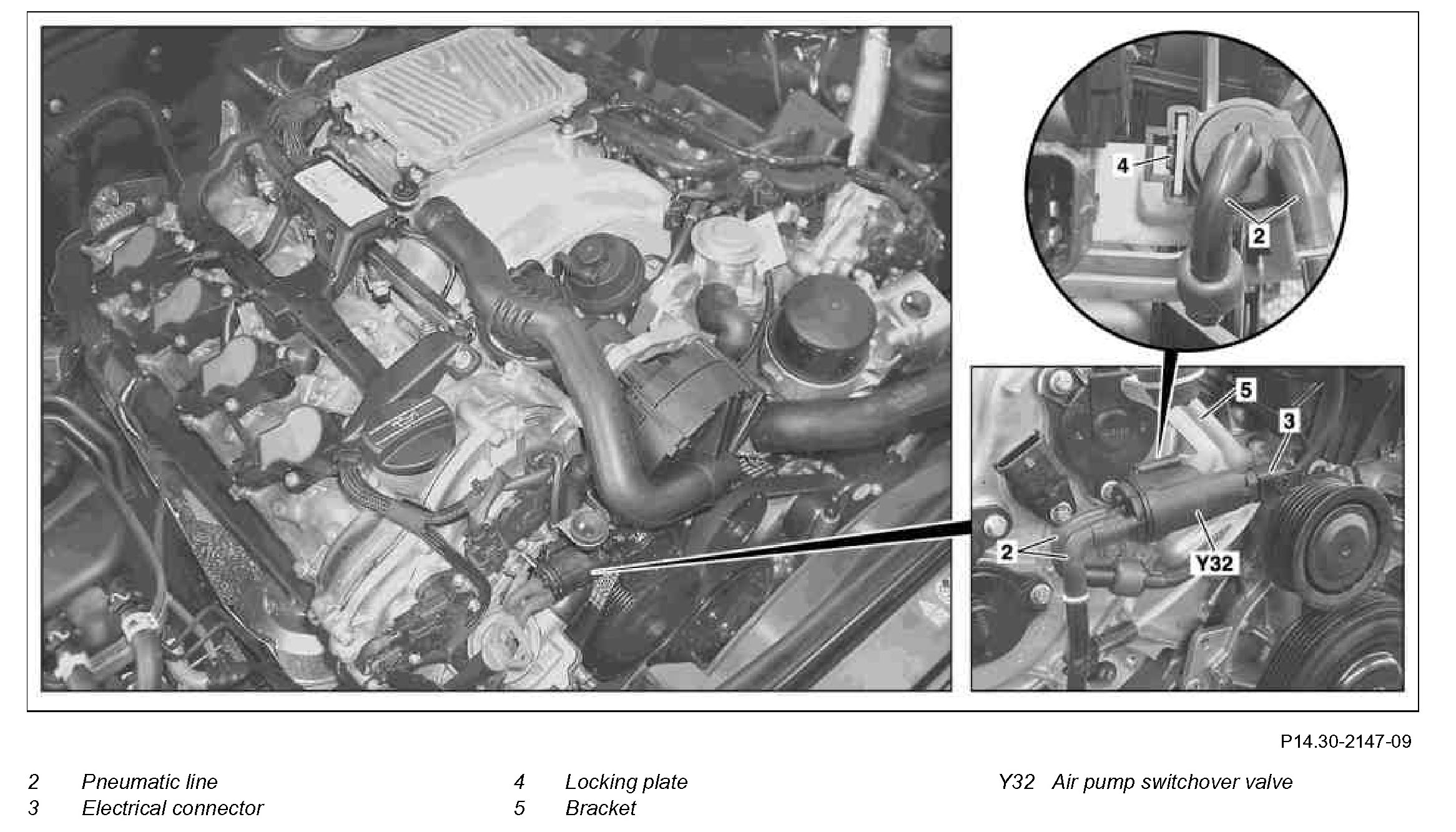

Component Identification:

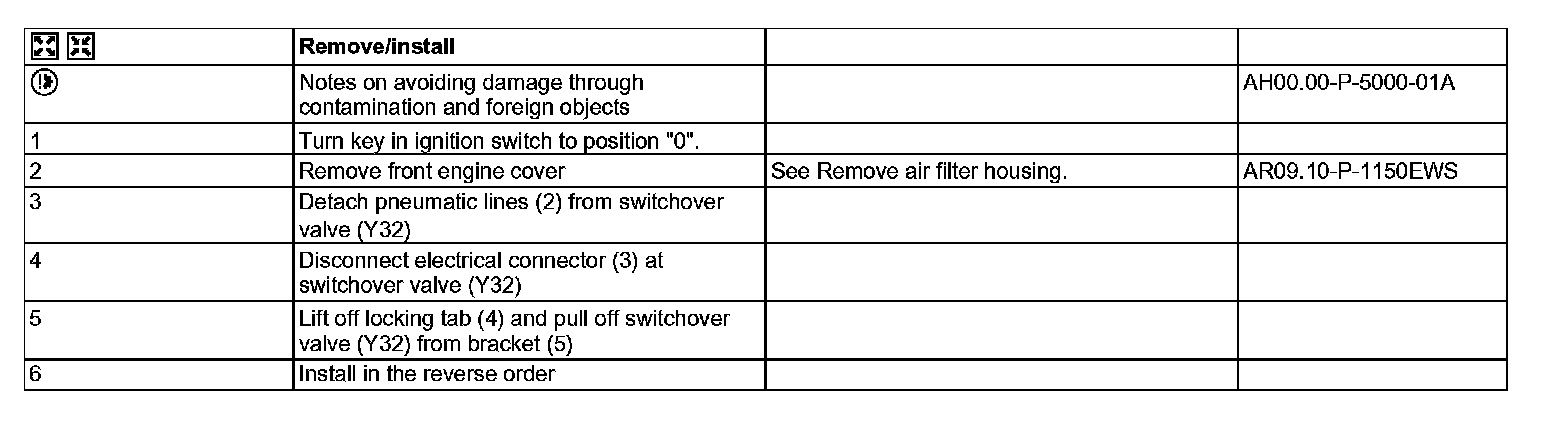

Steps 1-6:
