E 350 4MATIC Wagon (212.287) V6-3.5L (272.977)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Air Injection
>>
Air Diverter Valve
>>
Specifications
>>

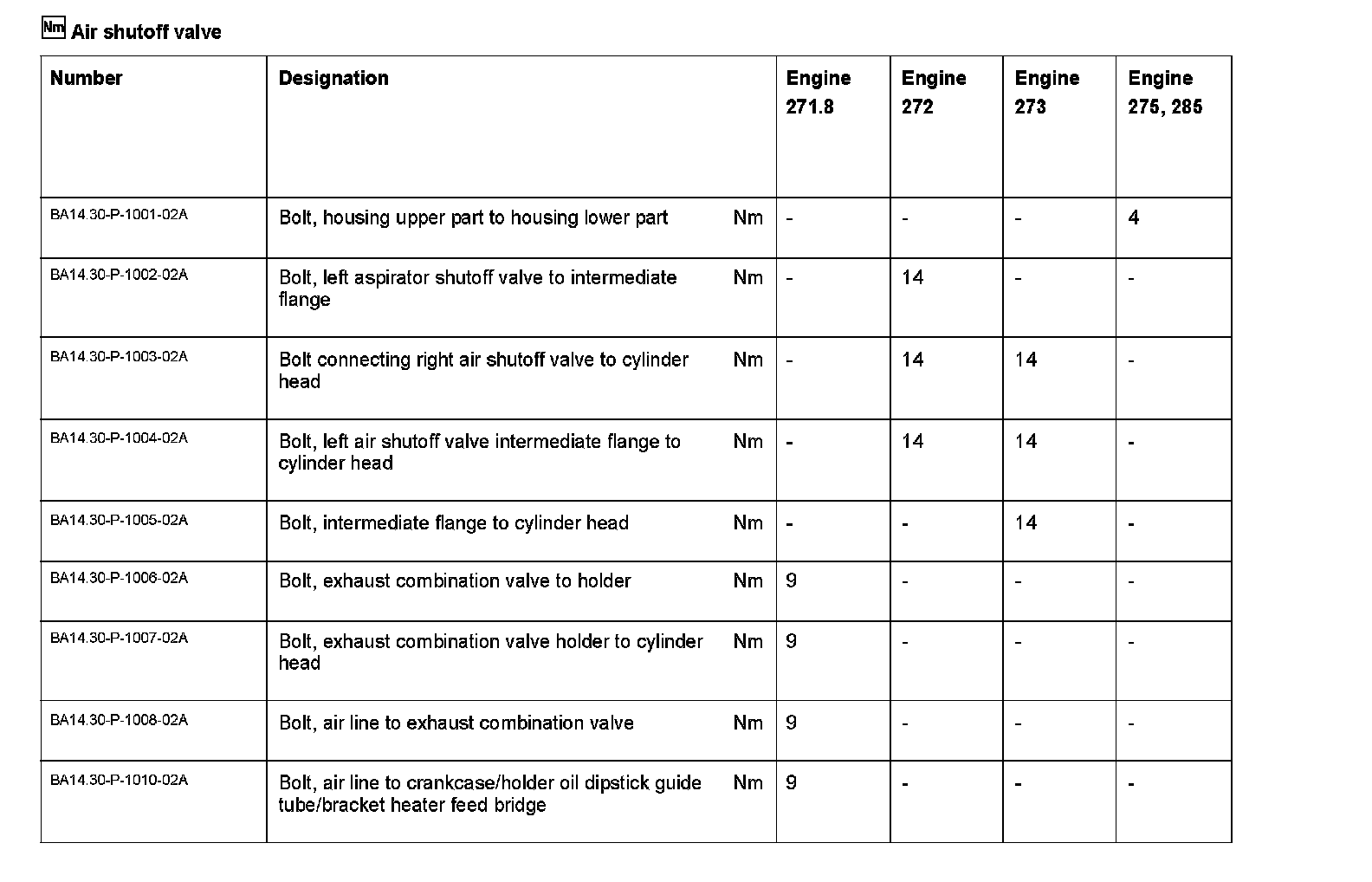

BA14.30-P-1000-02A Air Shutoff Valve
BA14.30-P-1000-02A Air Shutoff Valve
BA14.30-P-1000-02A Air Shutoff Valve
ENGINE 271, 272, 273, 275, 285
