Air Diverter Valve: Service and Repair

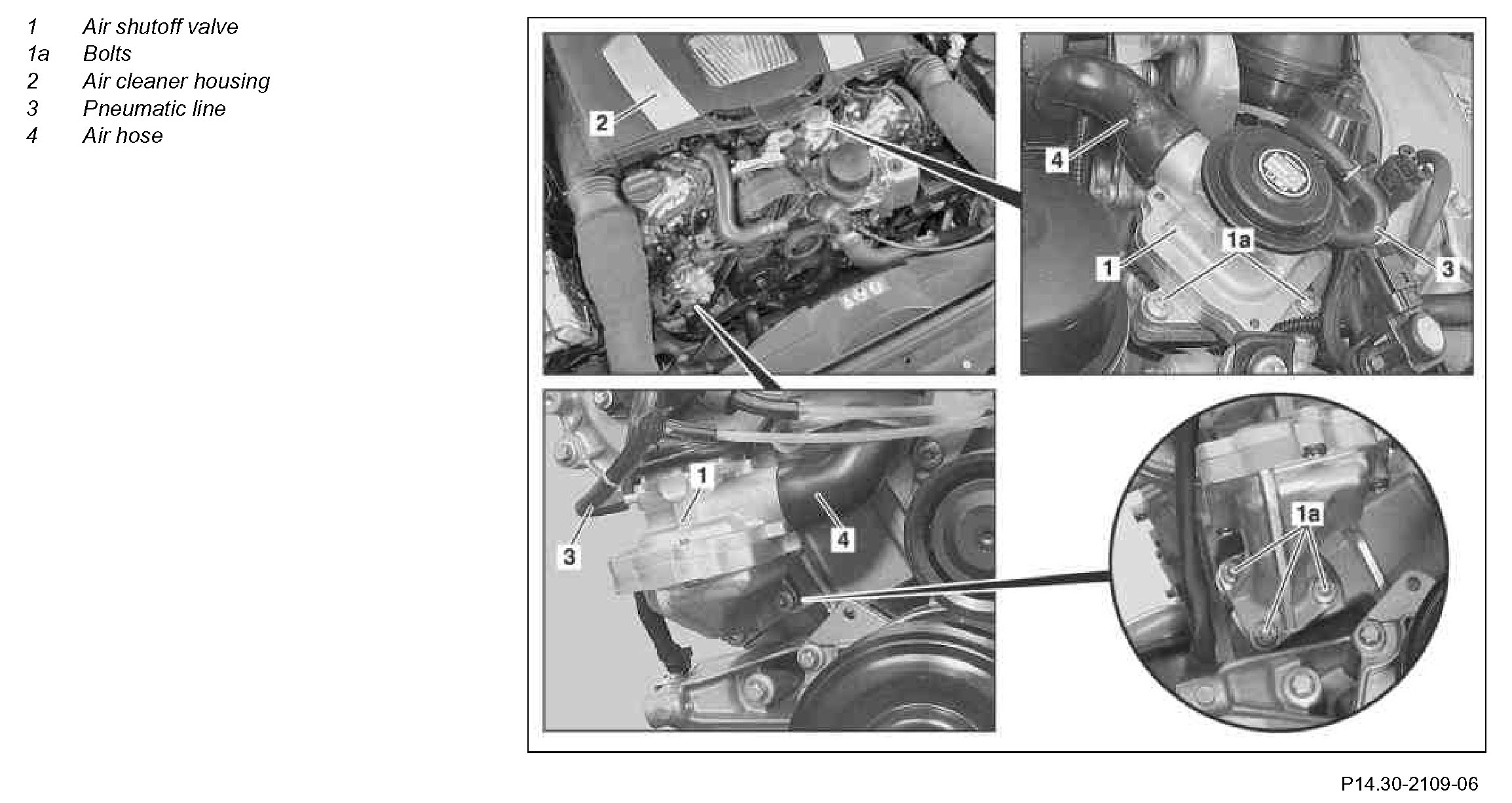

AR14.30-P-7200EW Remove/install air shutoff valve
Exhaust system:

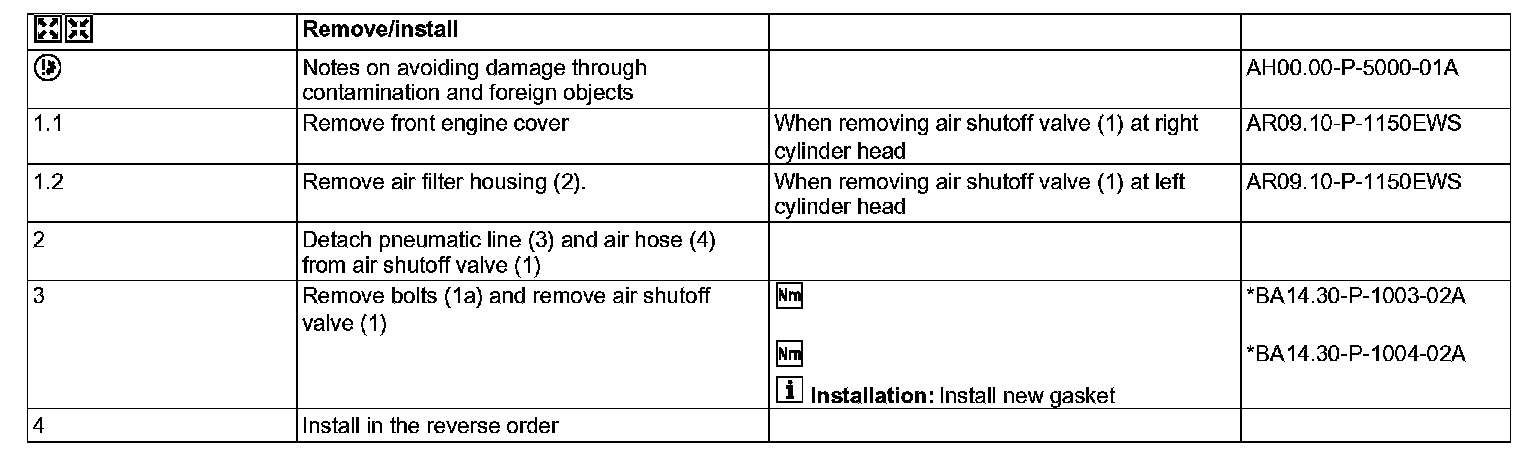

Steps 1-4:

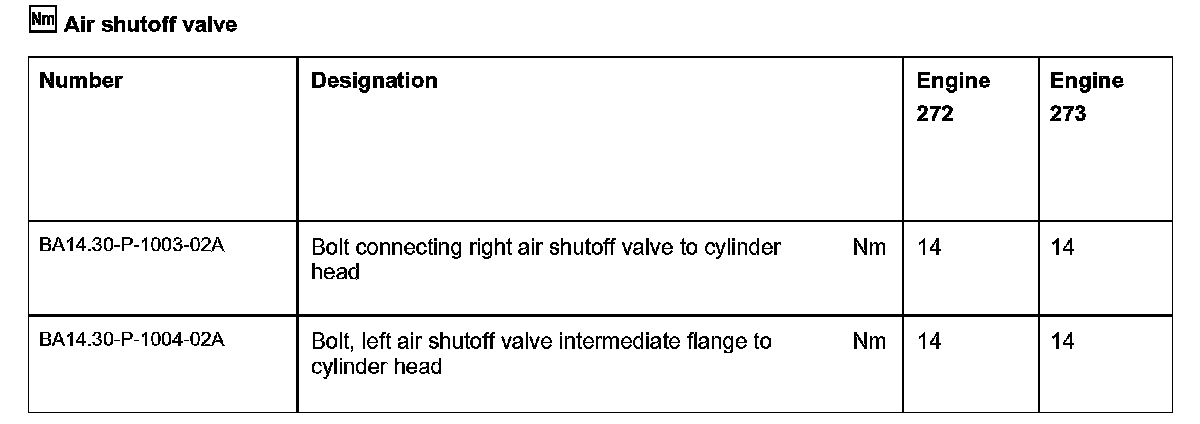

Air shutoff valve:
