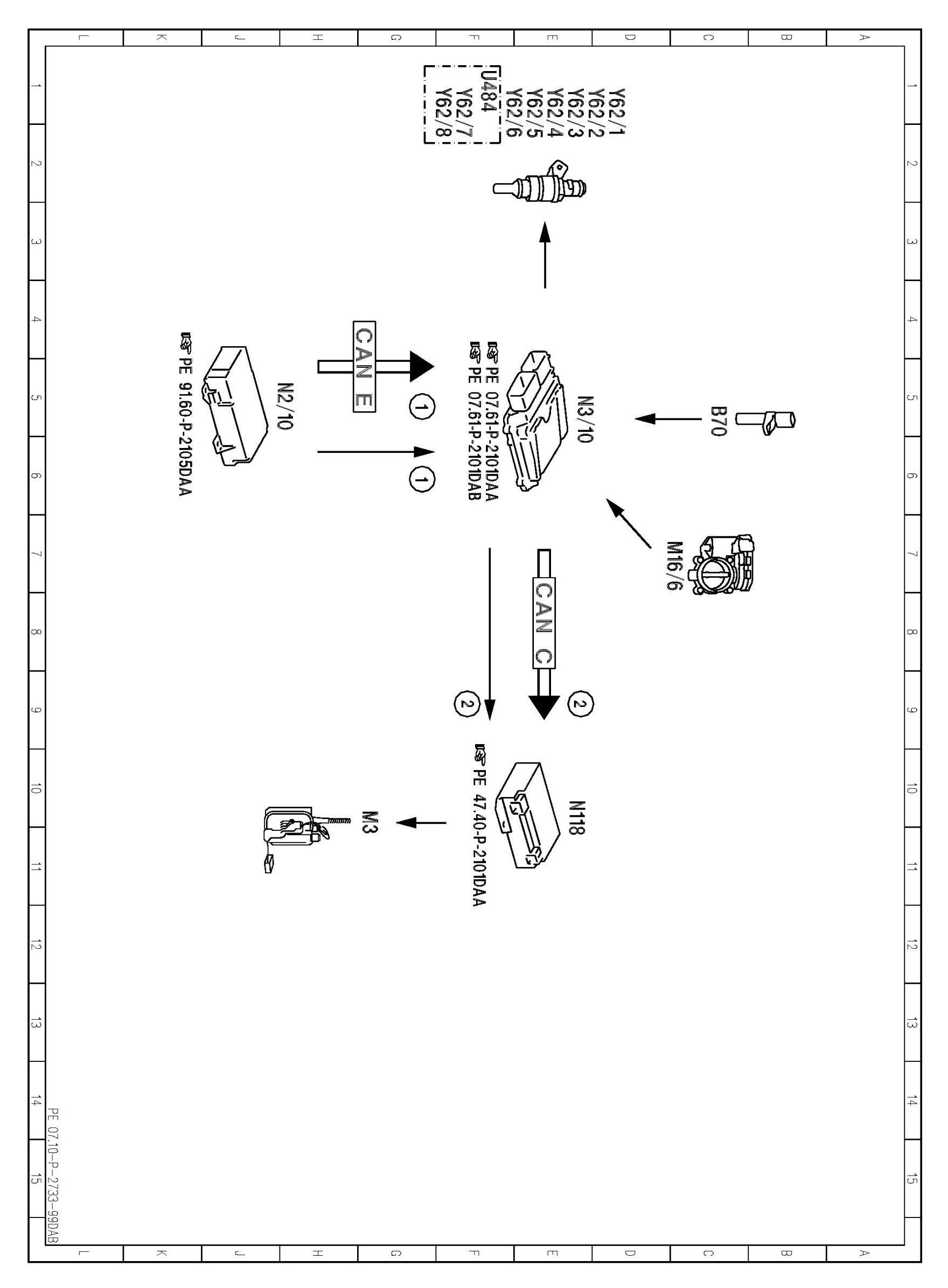

PE07.10-P-2733DAB Electrical Function Schematic, Safety Fuel Shutoff

PE07.10-P-2733DAB Electrical Function Schematic, Safety Fuel Shutoff
ENGINE 272, 273 in MODEL 212
- except engine 272.98






















































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
