FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2011
>>
E 350 4MATIC Wagon (212.287) V6-3.5L (272.977)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Sensors and Switches - Computers and Control Systems
>>
Oxygen Sensor
>>
Service and Repair
Oxygen Sensor: Service and Repair
AR07.52-P-5303EW Remove/Install Heated O2 Sensor

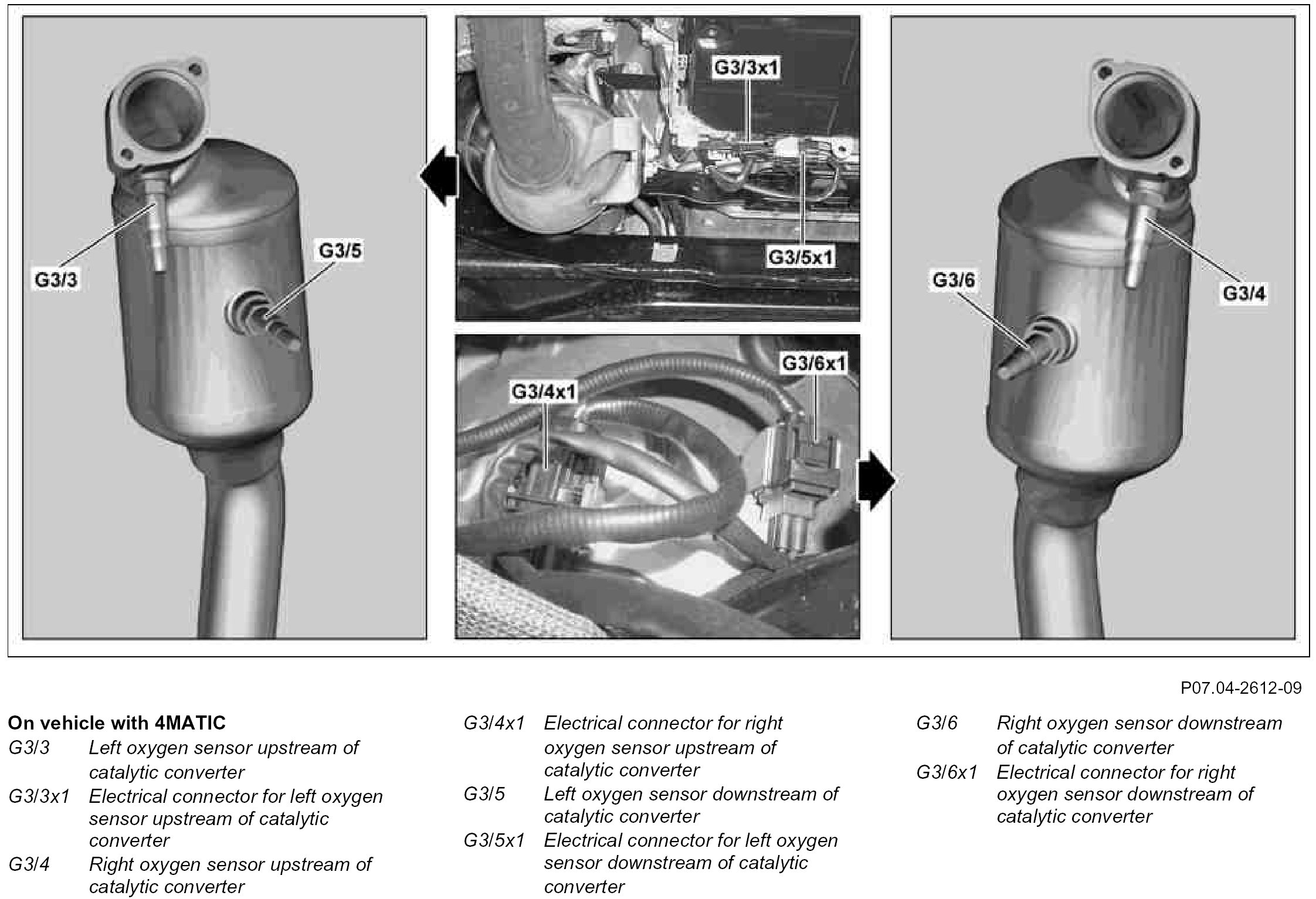

Component Identification:

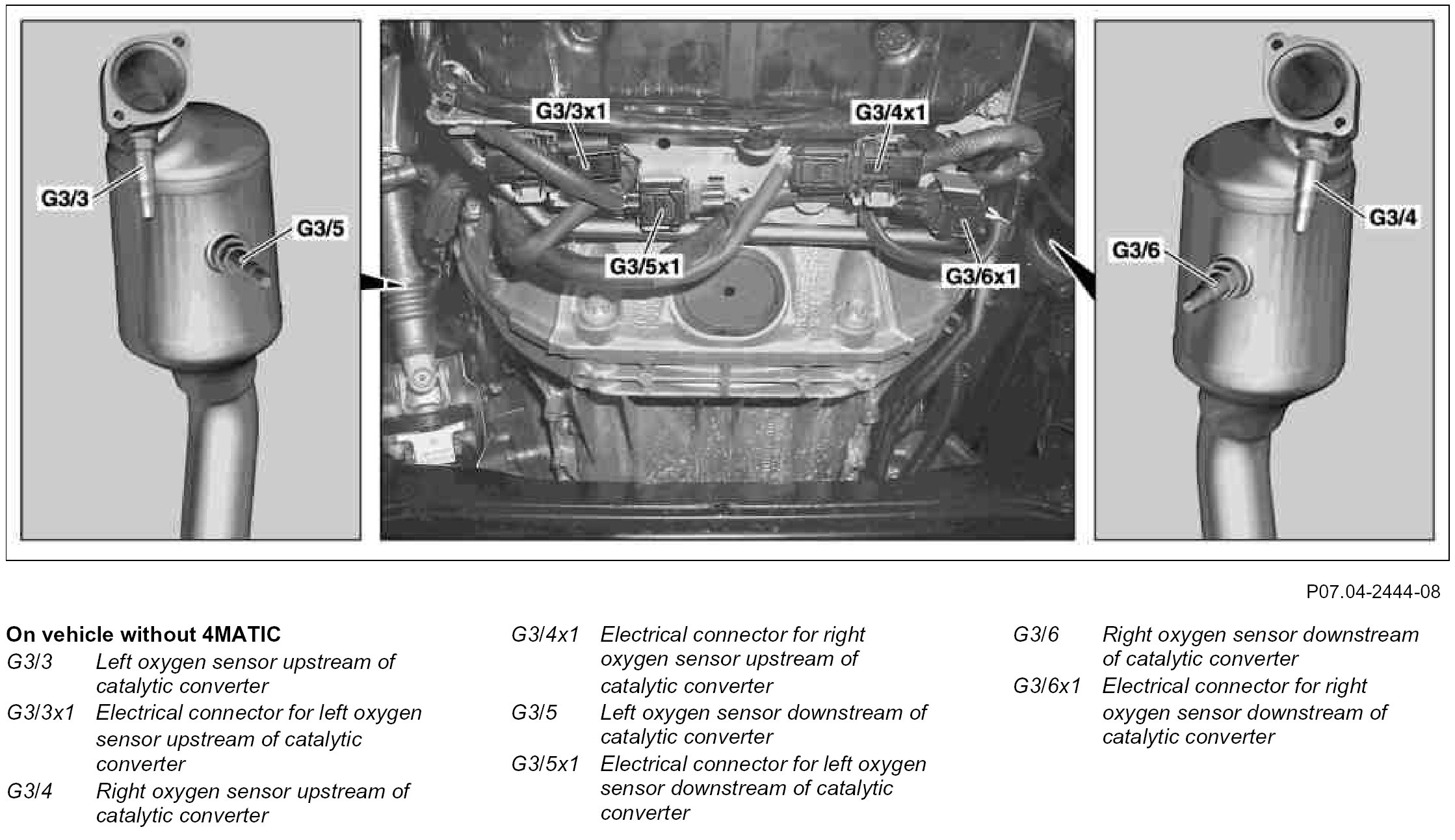

Component Identification:

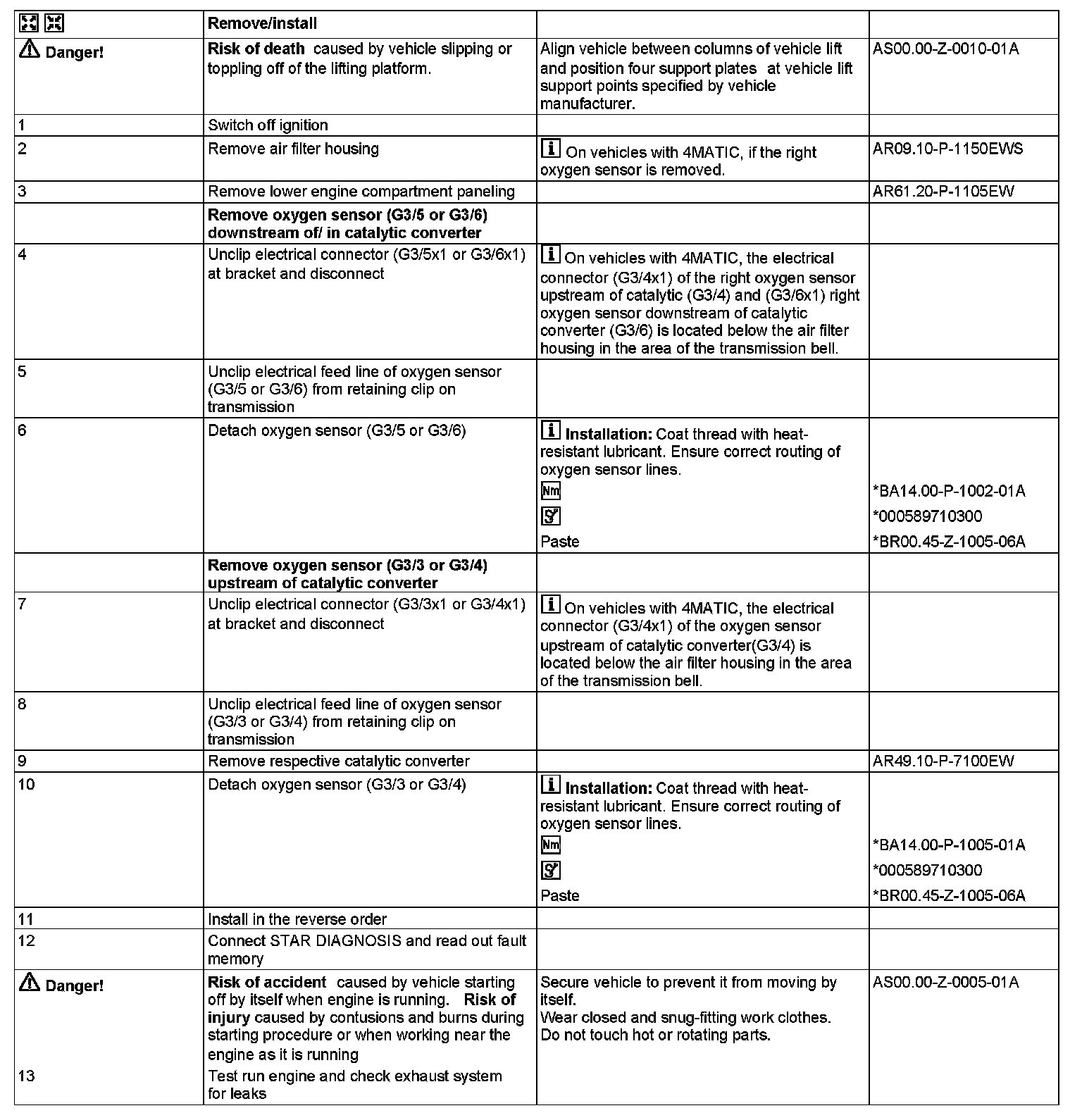

Steps 1 - 13:

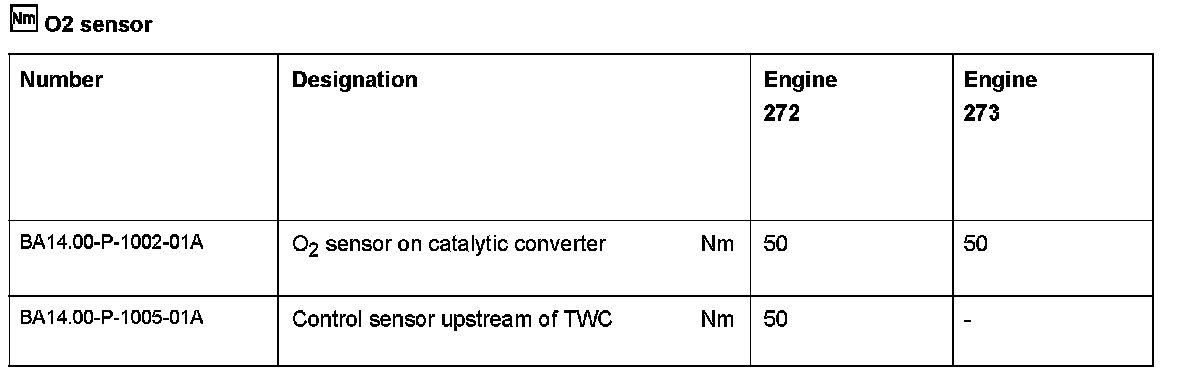

O2 Sensor:

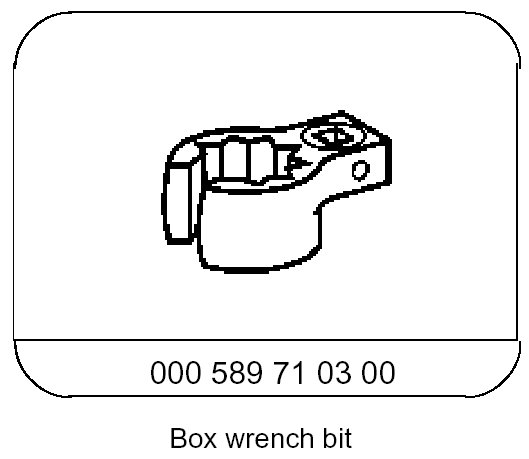

Special Tools:

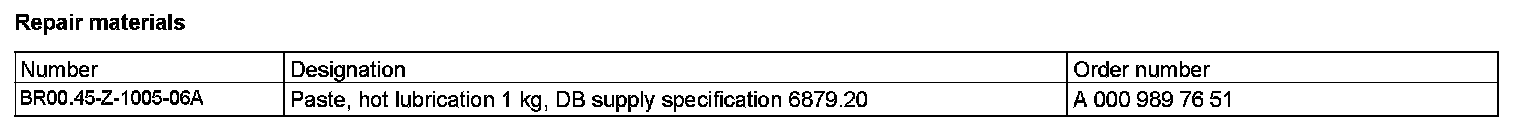

Repair Materials:
