Fuel Tank Pressure Sensor: Service and Repair



AR47.50-P-0050EW Remove/Install Fuel Tank Pressure Sensor
- with CODE (494) USA version

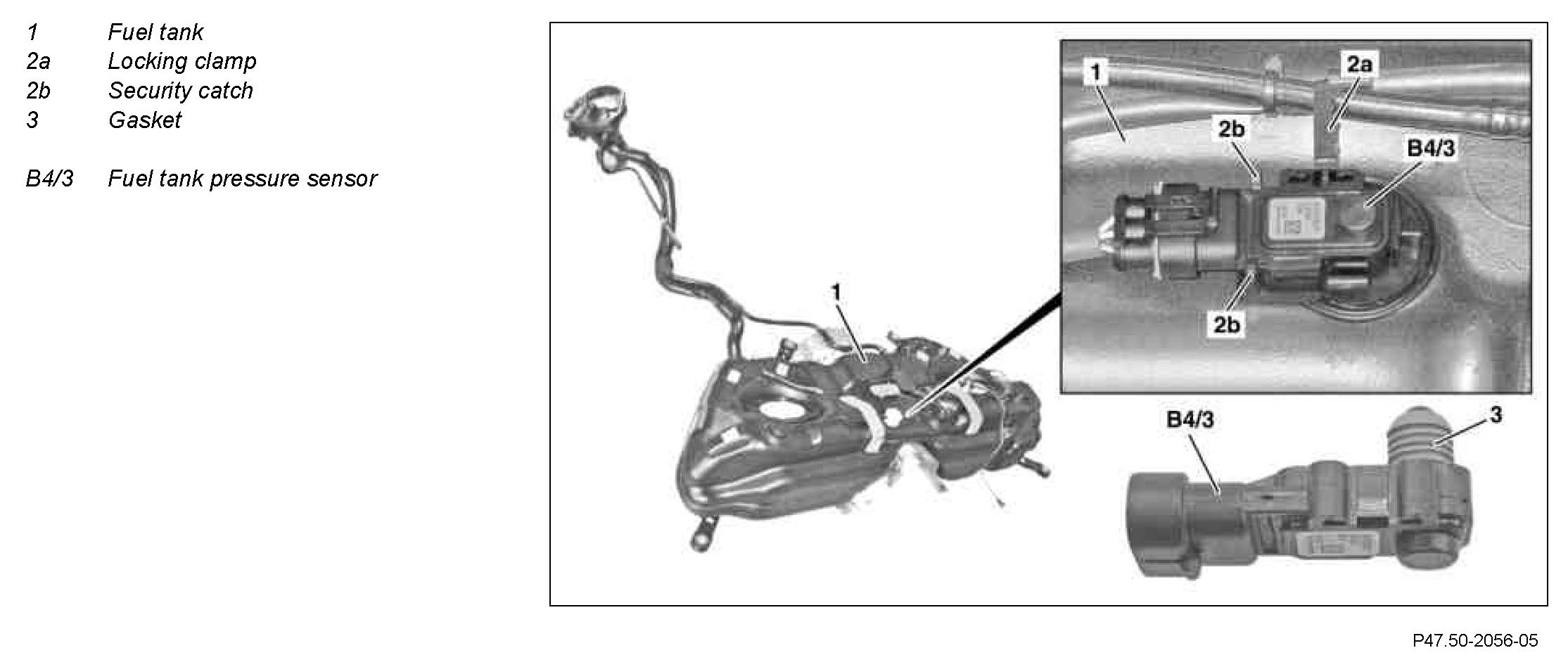

Component Identification:

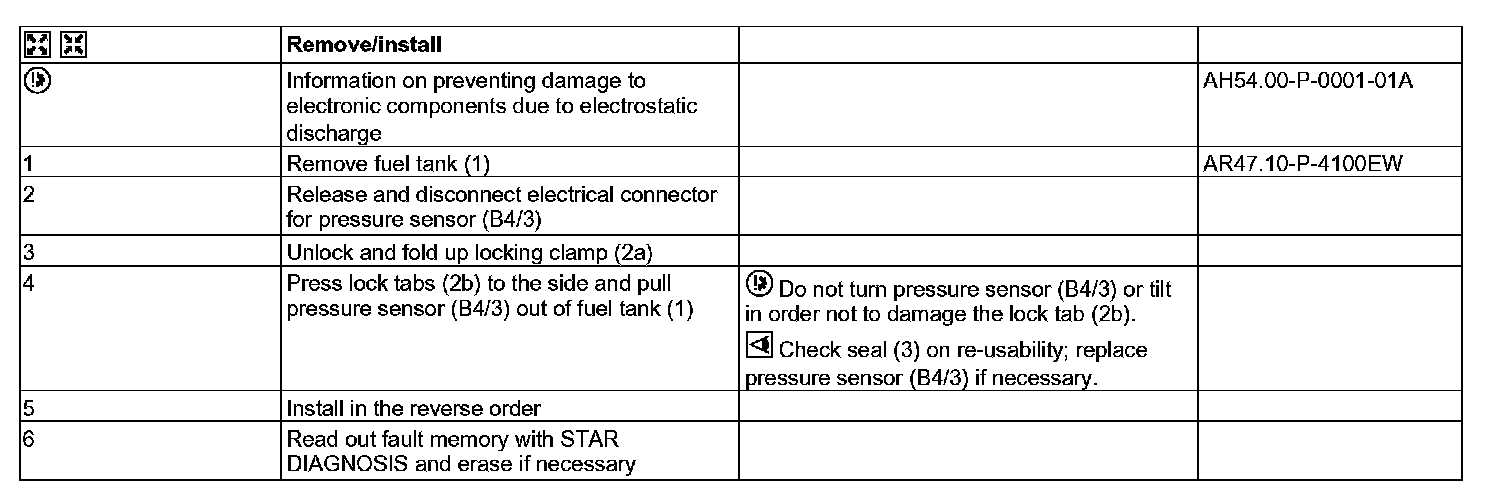

Steps 1 - 6:
