Coolant Temperature Sensor/Switch (For Computer): Service and Repair
AR15.60-P-3000EW Remove/install temperature sensor

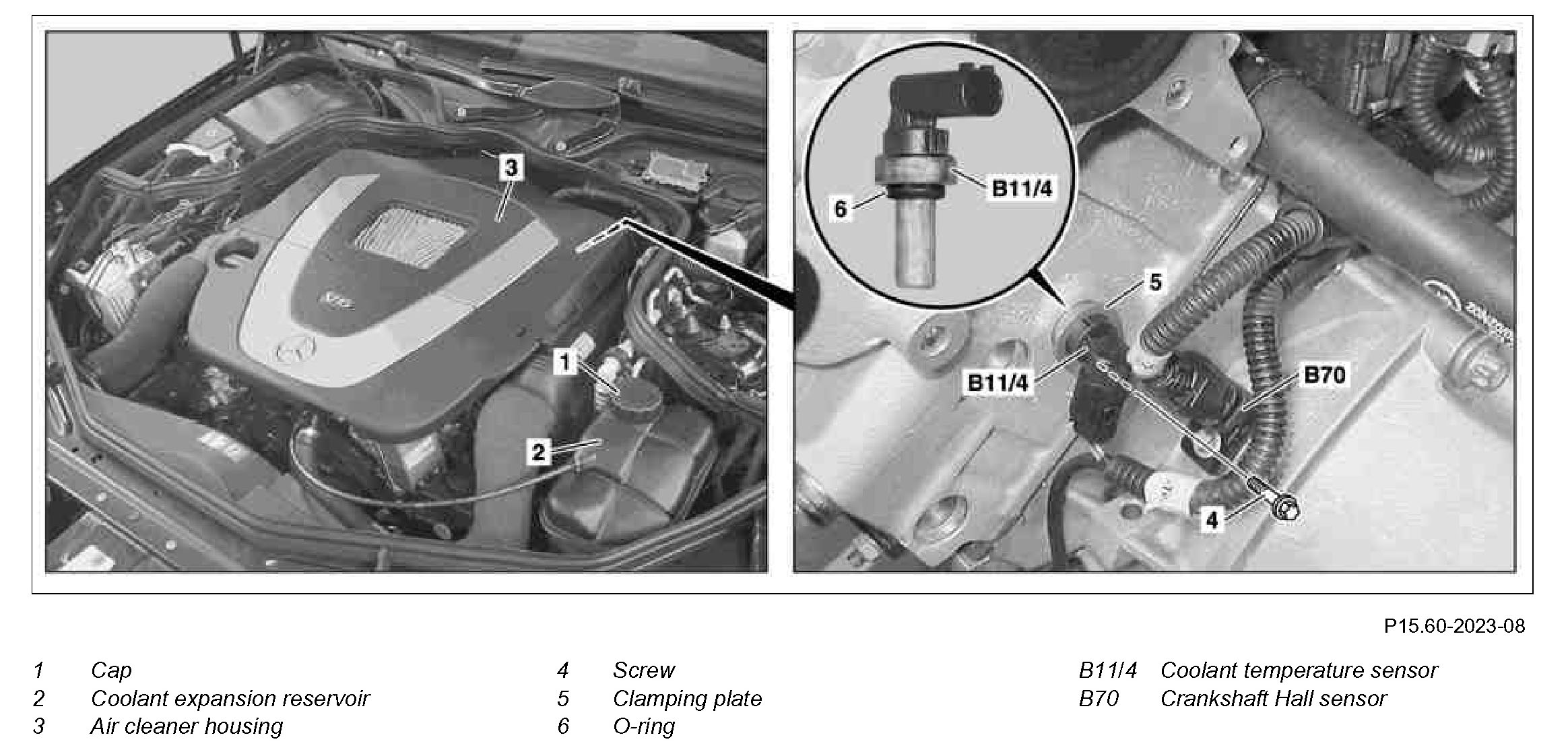

Component Identification:

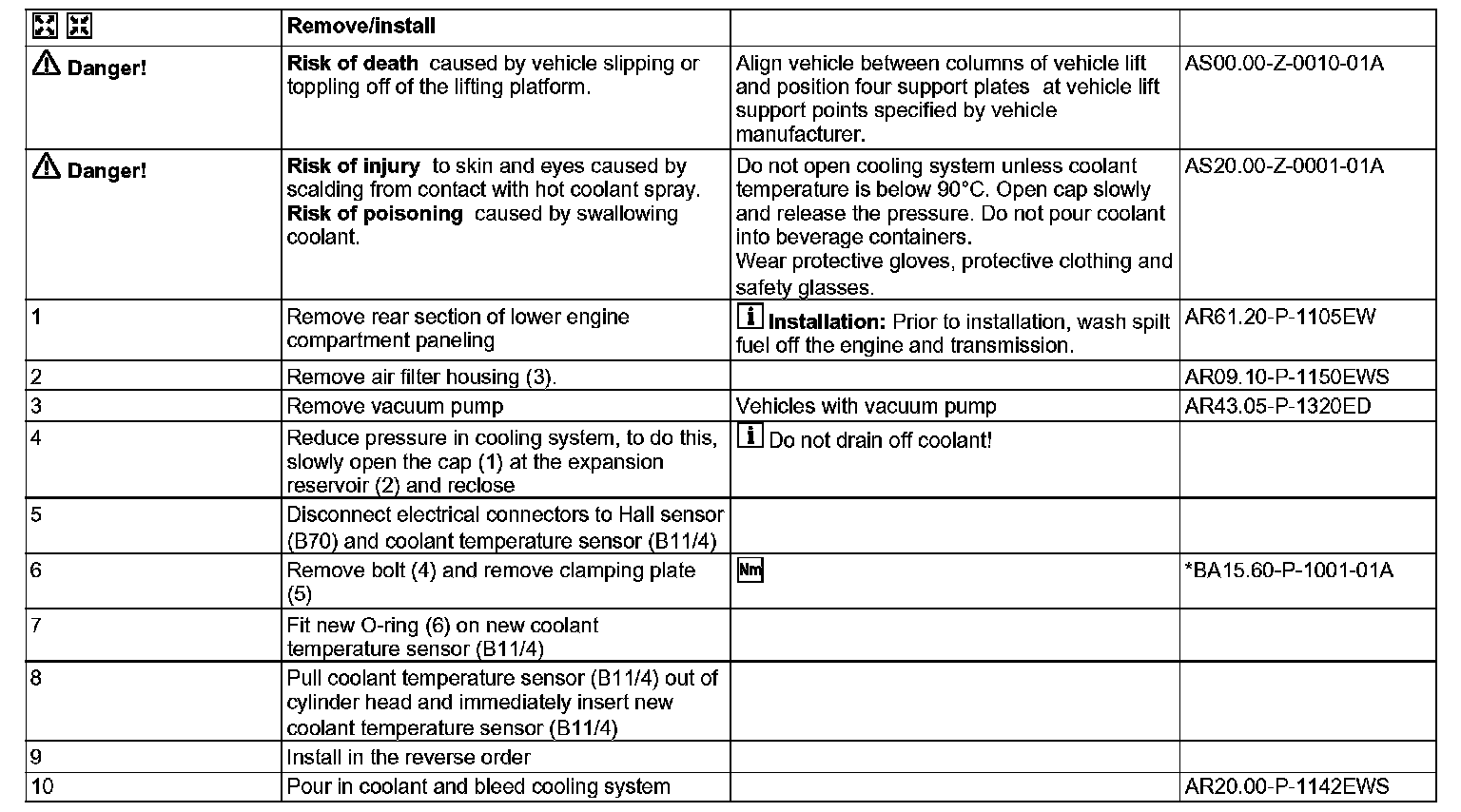

Steps 1-10:

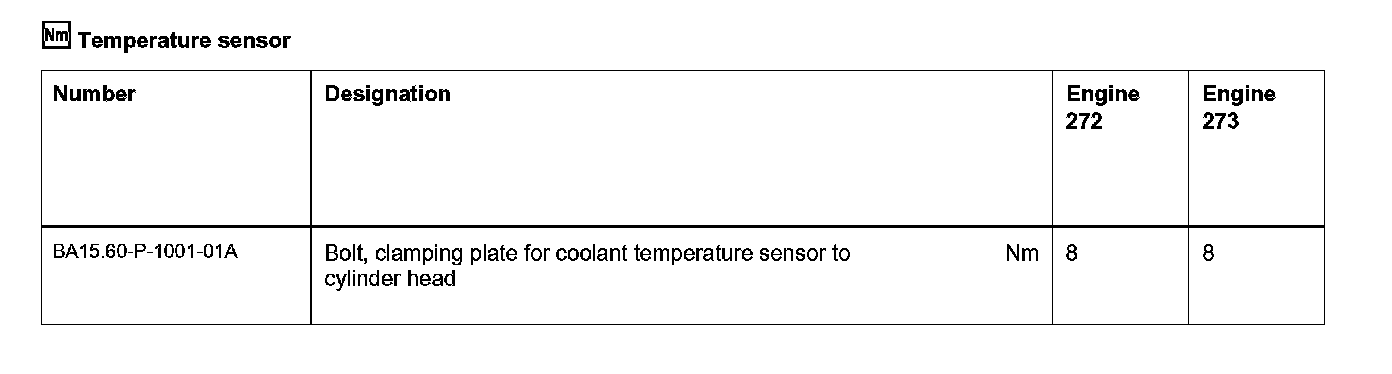

Temperature sensor:
