Home >> Mercedes Benz >> 2011 >> E 350 4MATIC Wagon (212.287) V6-3.5L (272.977) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Relays and Modules - Computers and Control Systems >> Engine Control Module >> Specifications

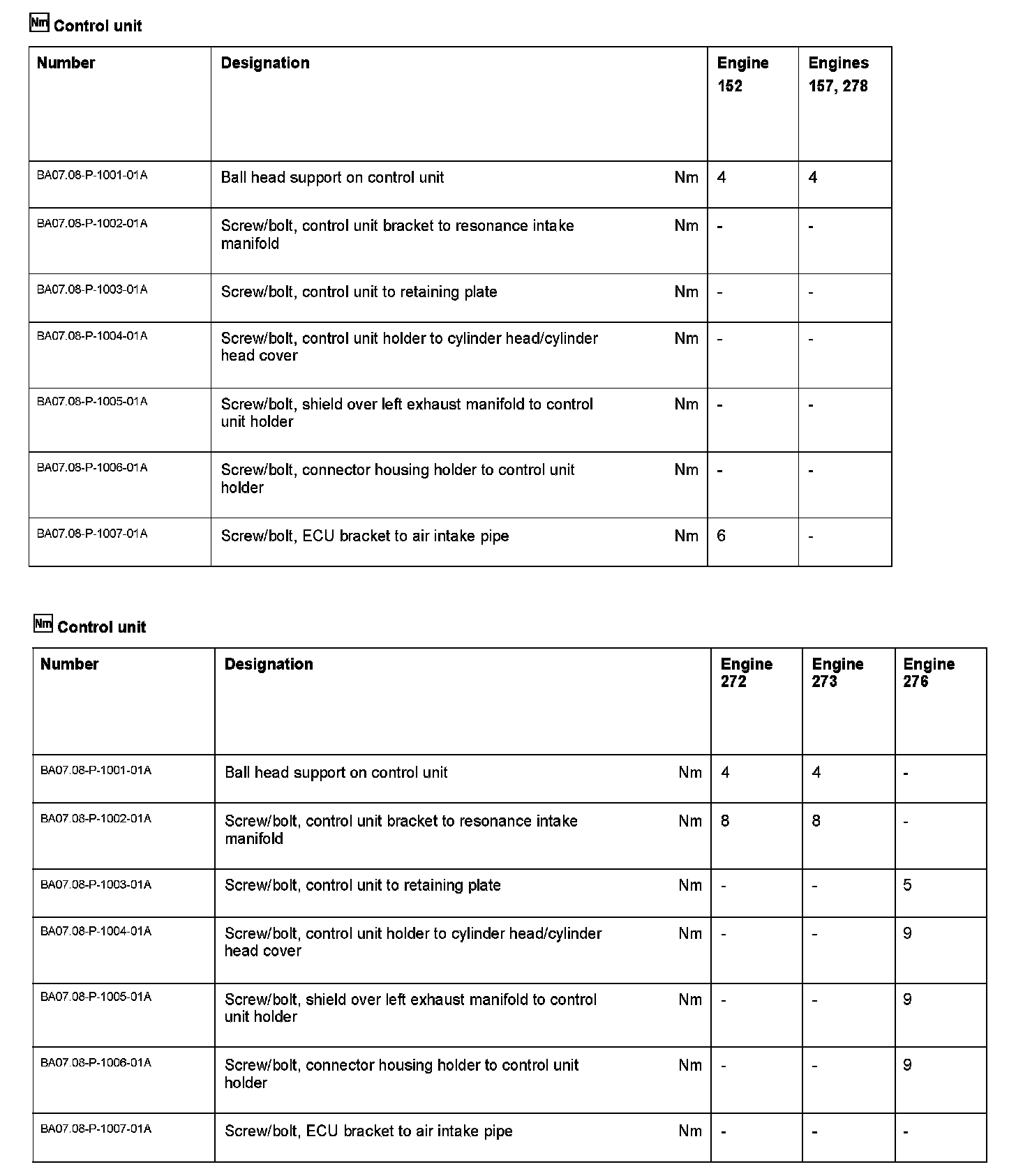

Engine Control Module: Specifications



BA07.08-P-1000-01A Control Unit
Engine 152, 157, 272, 273, 276, 278
