Engine Control Module: Service and Repair
AR07.08-P-7008EW Remove/Install Injection System Control Unit

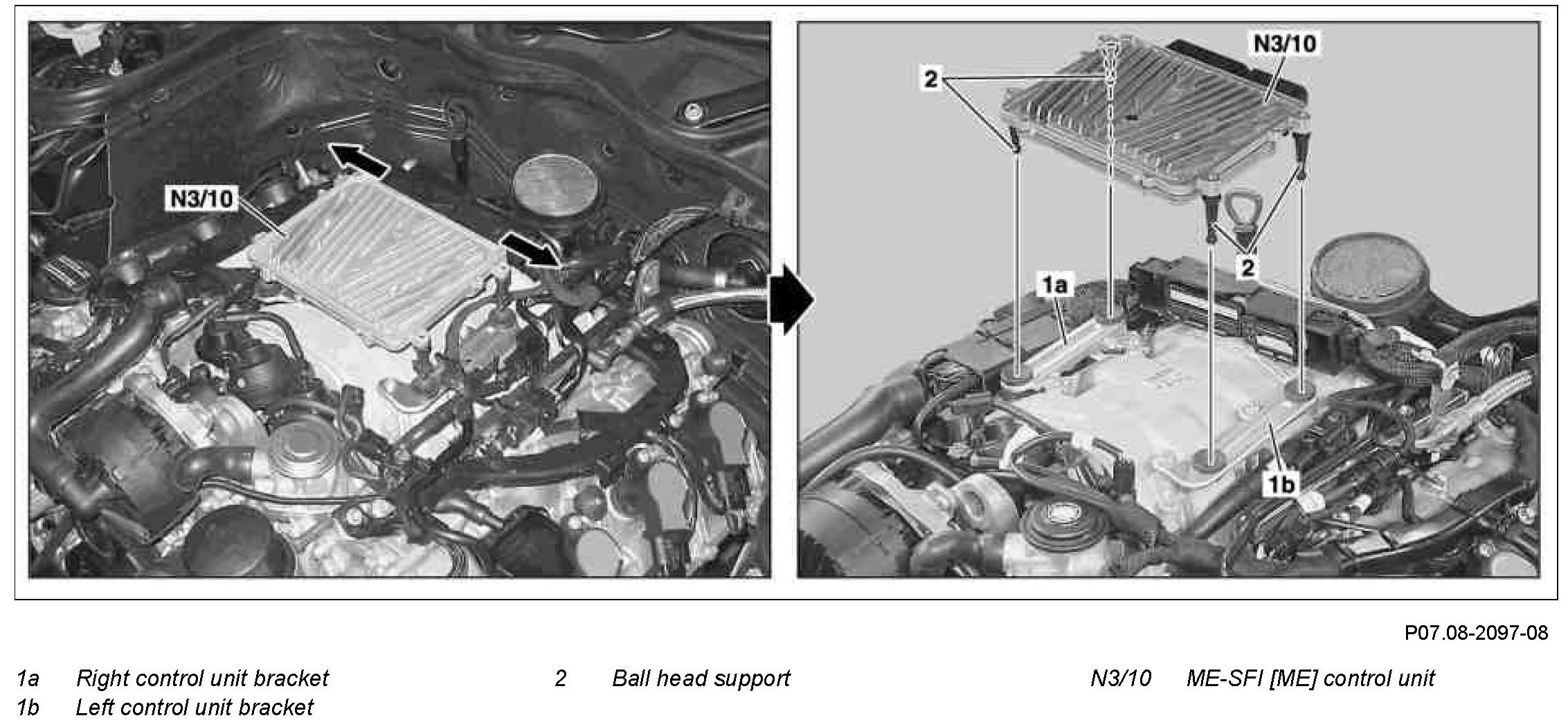

Component Identification:

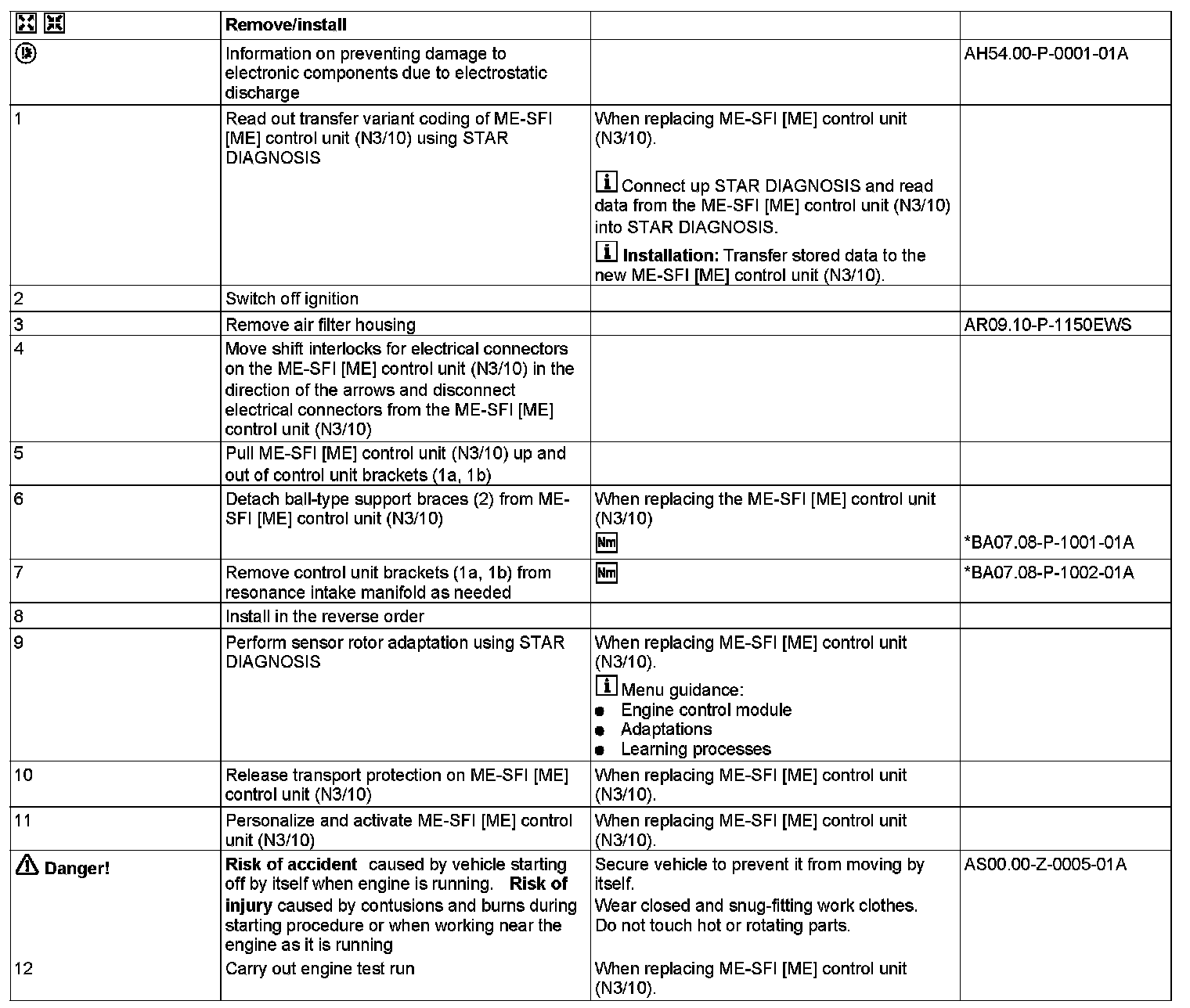

Steps 1 - 12:

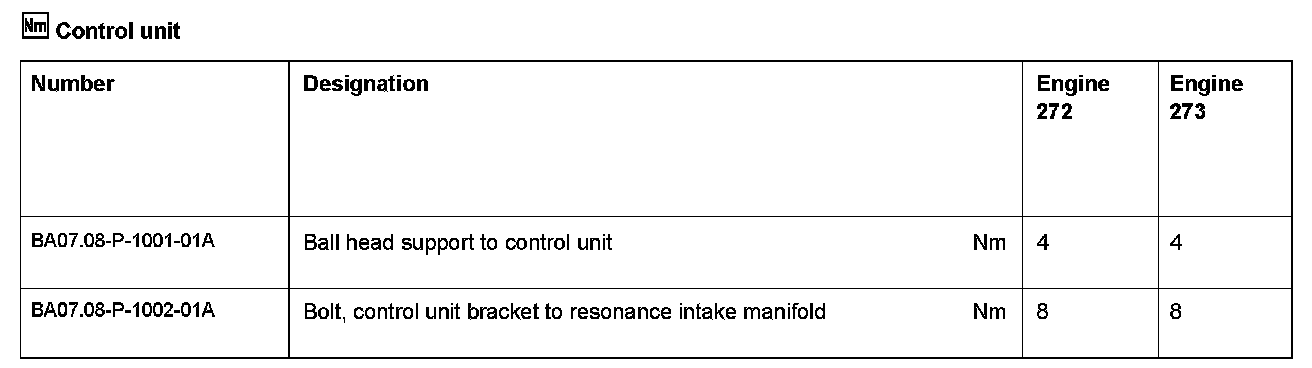

Control Unit:
