AR20.00-P-1142EWS Drain/Fill In Coolant
AR20.00-P-1142EWS Drain/Fill In Coolant
AR20.00-P-1142EWS Drain/fill in coolant

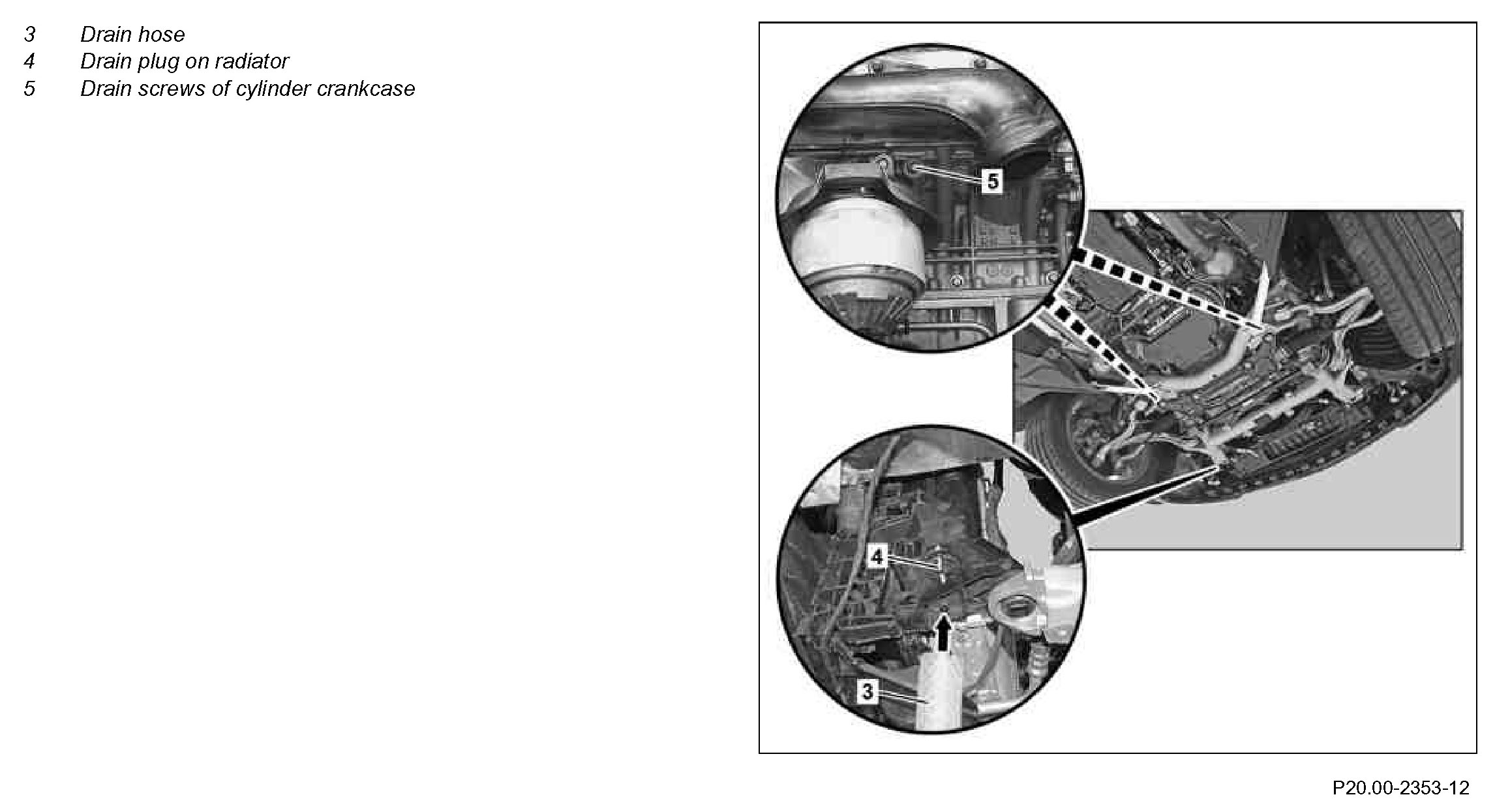

Component Identification:

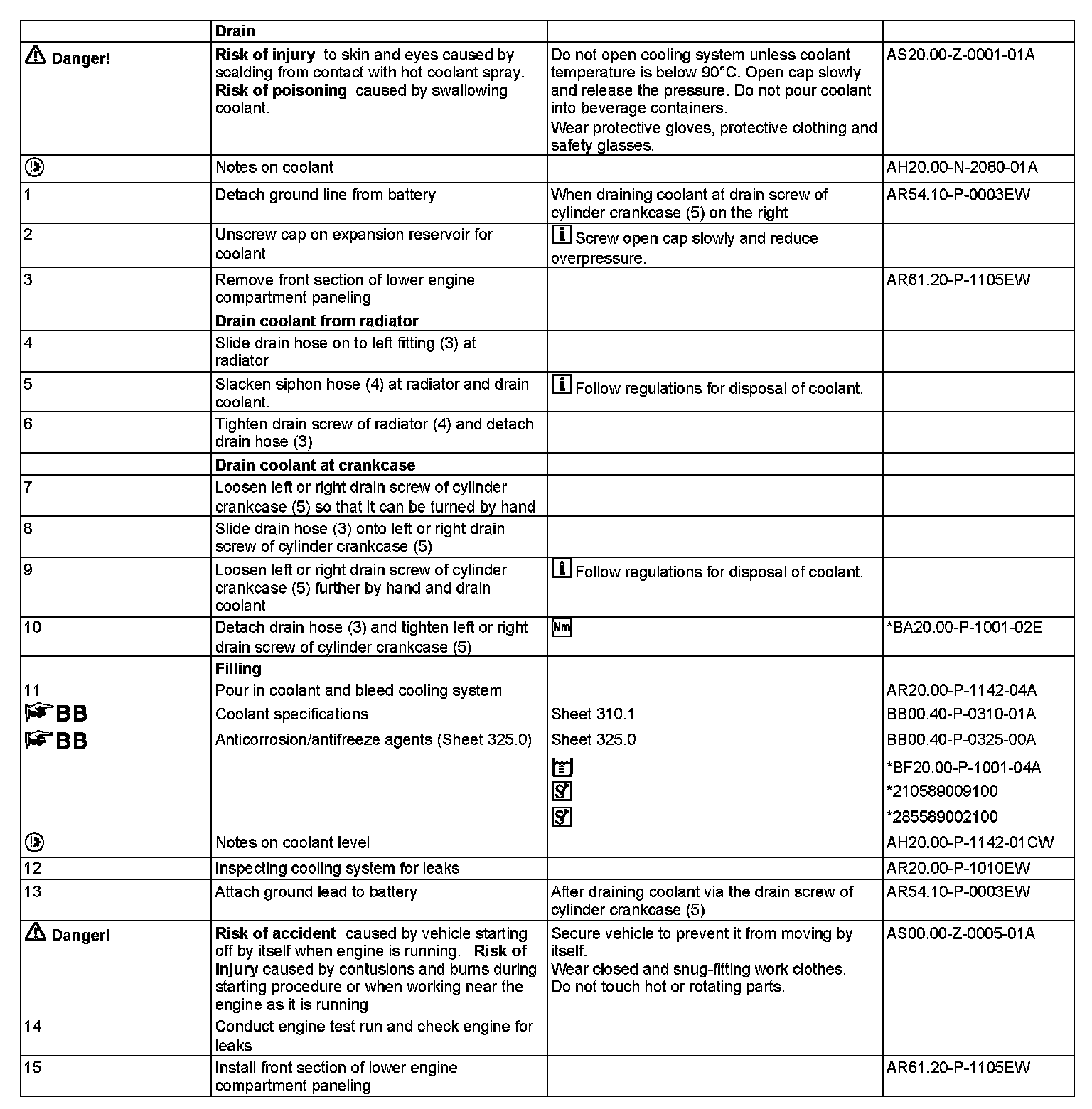

Steps 1-15:

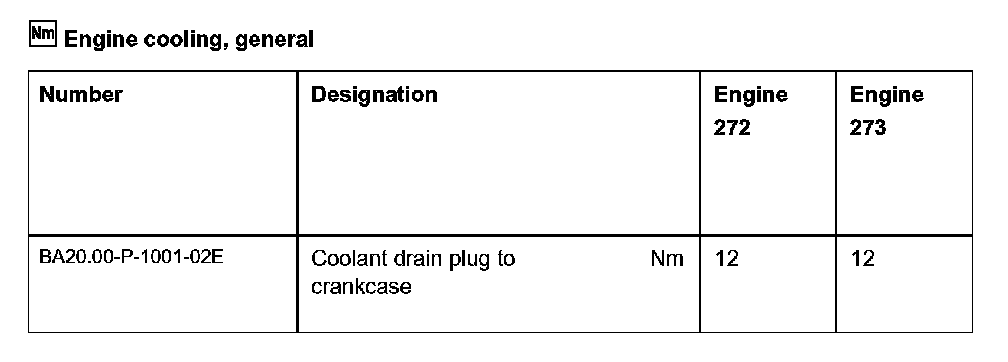

Engine cooling, general:

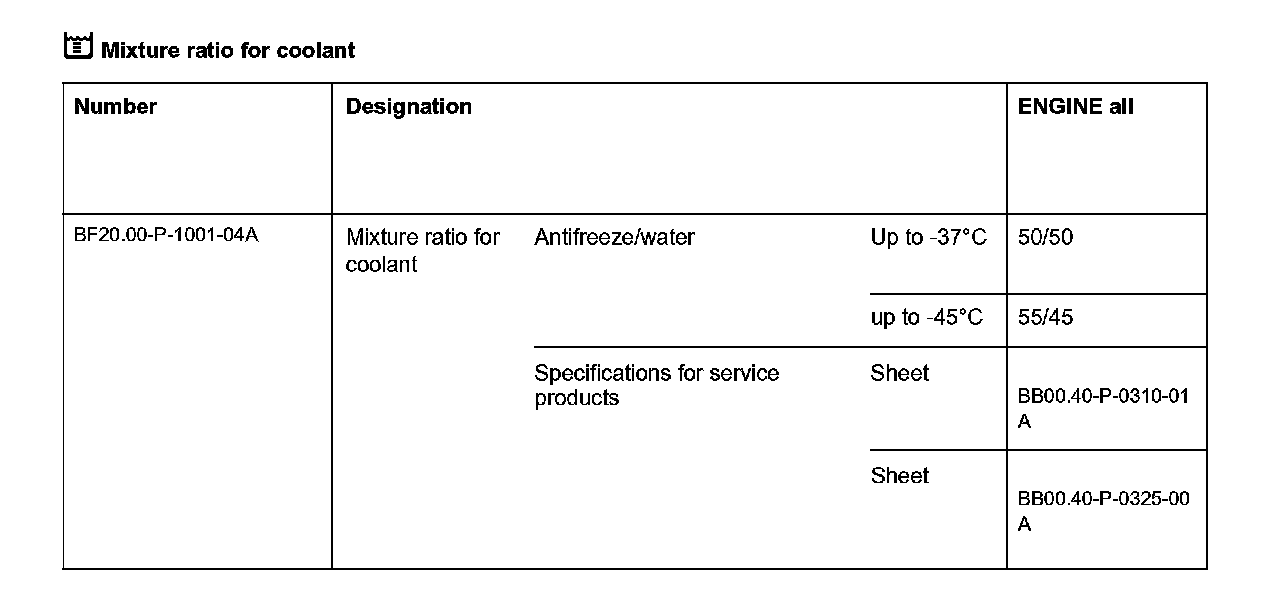

Mixture ratio for coolant:

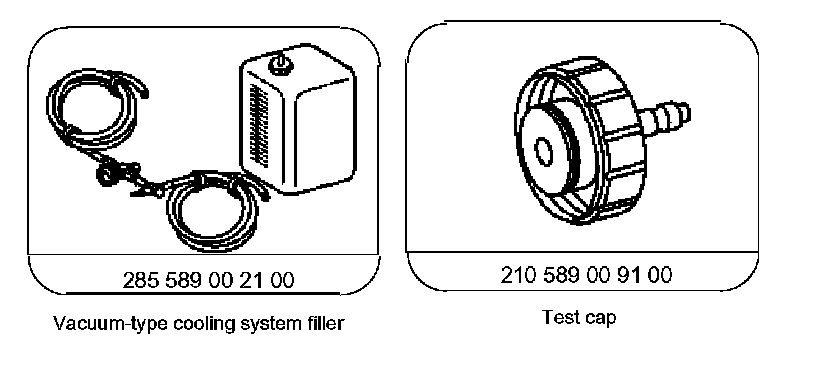

Special Tools:
