Mercedes Benz
>>
2011
>>
E 350 4MATIC Wagon (212.287) V6-3.5L (272.977)
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Daytime Running Lamp
>>
Service and Repair
>>
Removal and Replacement
Removal and Replacement
AR82.10-P-2300EW Removing And Installing
Headlamp
For Daytime Running Light

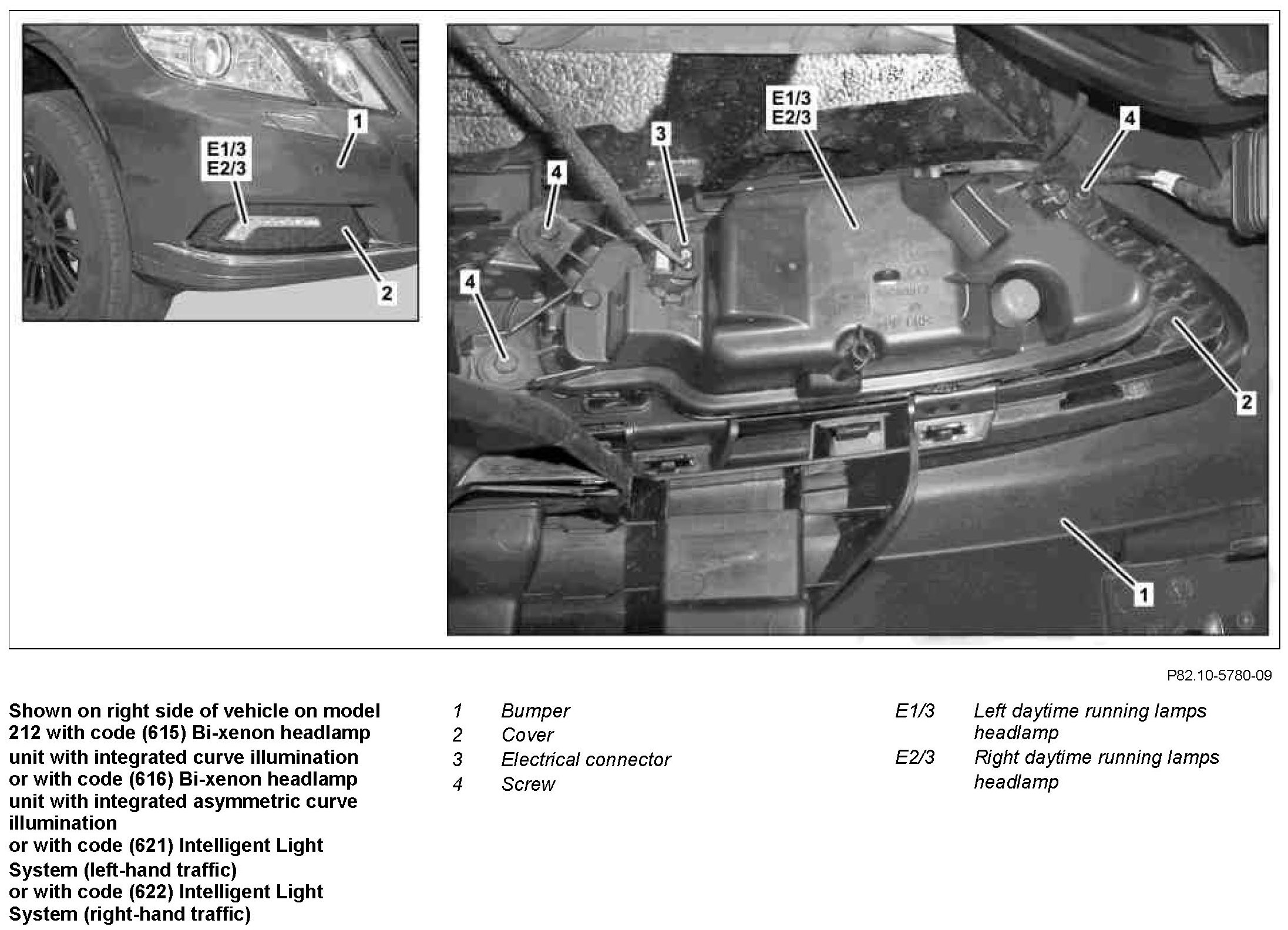

Component Identification:

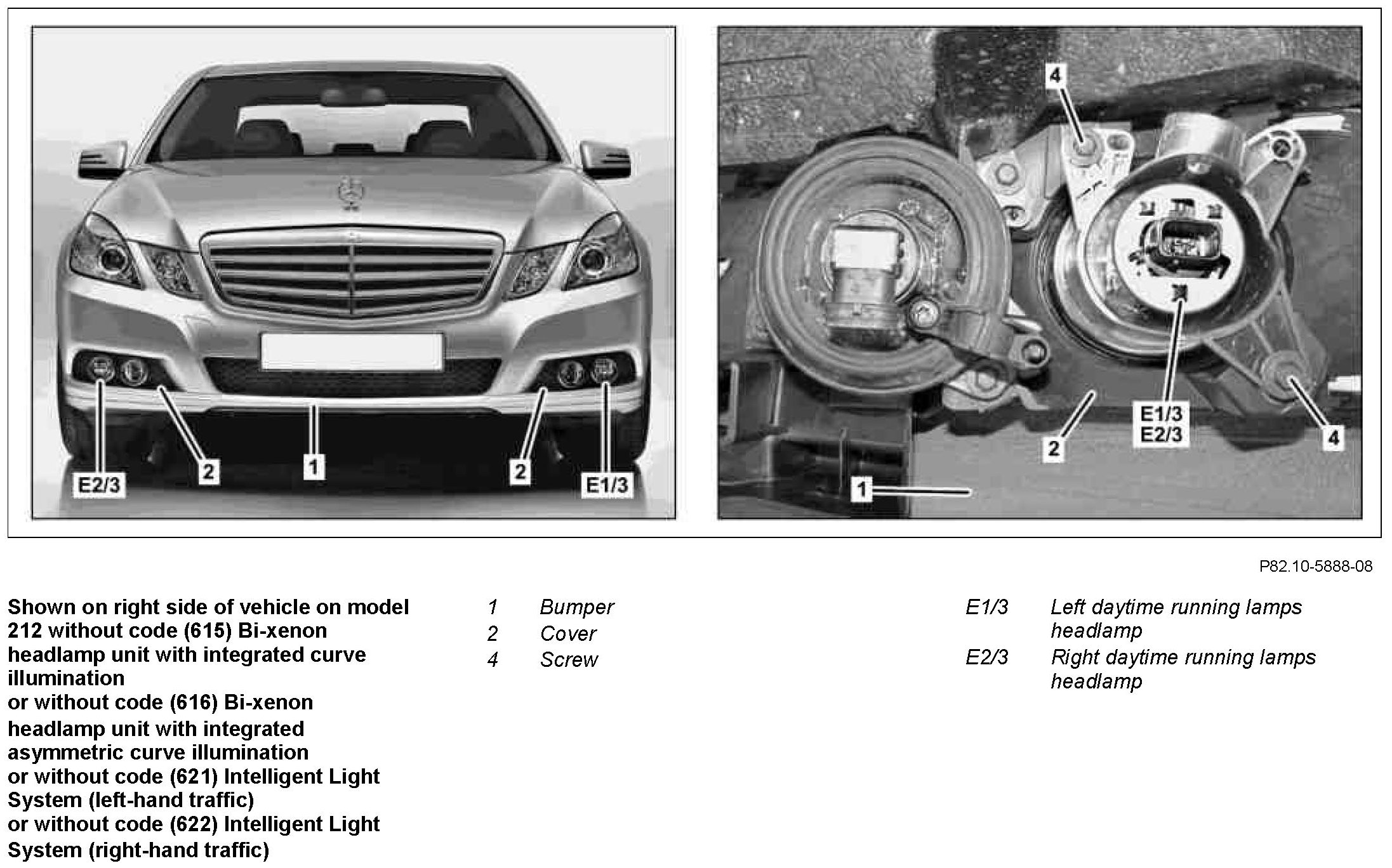

Component Identification:

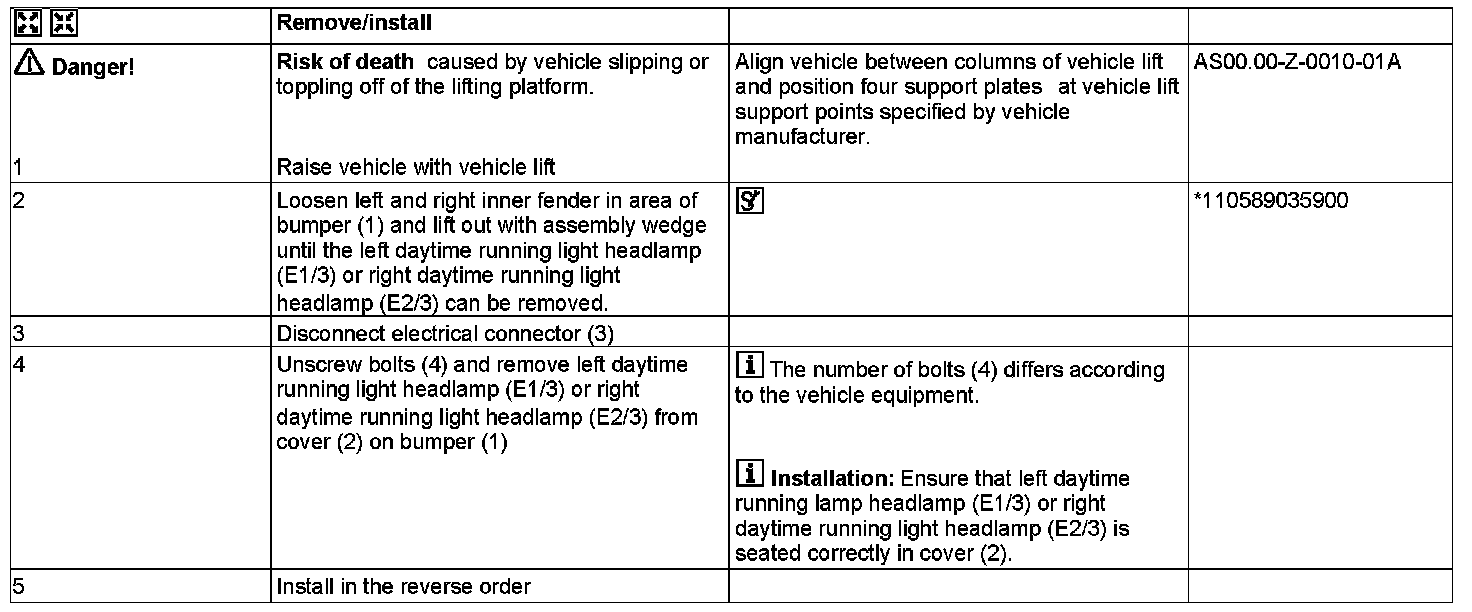

Steps 1 - 5:

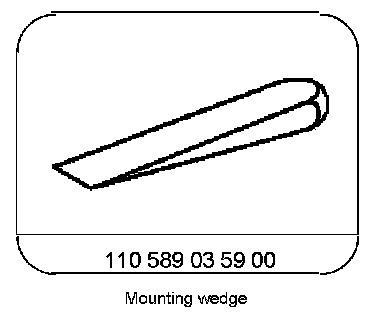

Special Tools:
