Compressor HVAC: Service and Repair
AR83.55-P-5300EW Remove/install Refrigerant Compressor

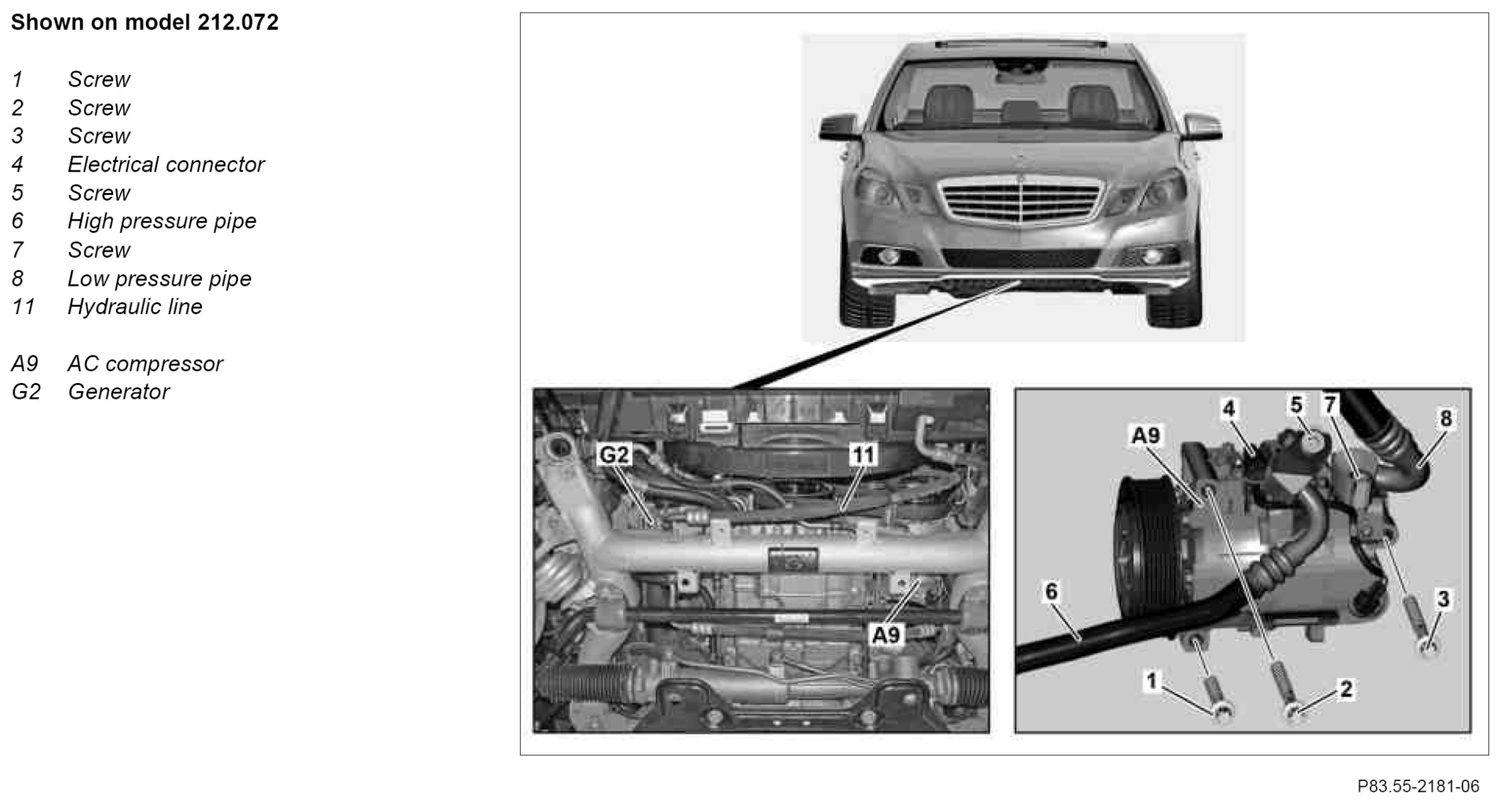

Component Identification:
Modification notes
Modification Notes:

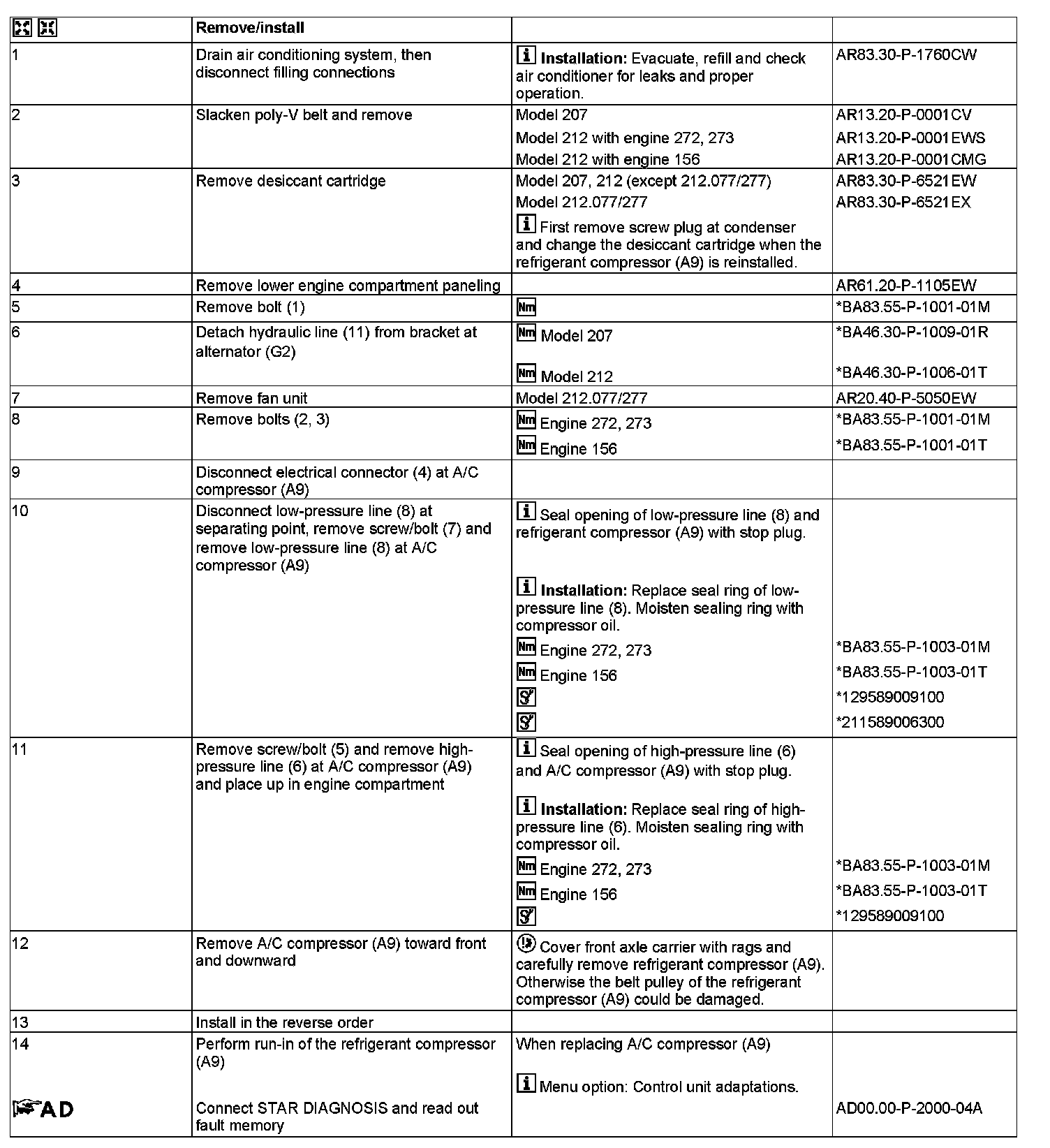

Steps 1-14:

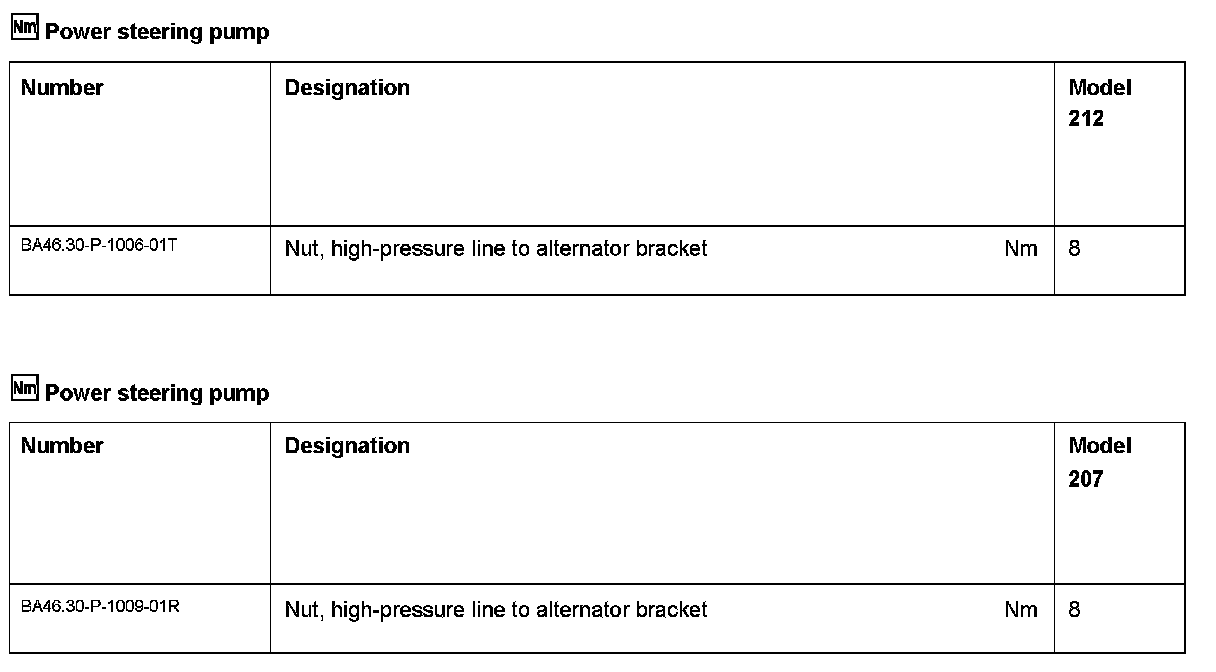

Power steering pump
Power Steering Pump:

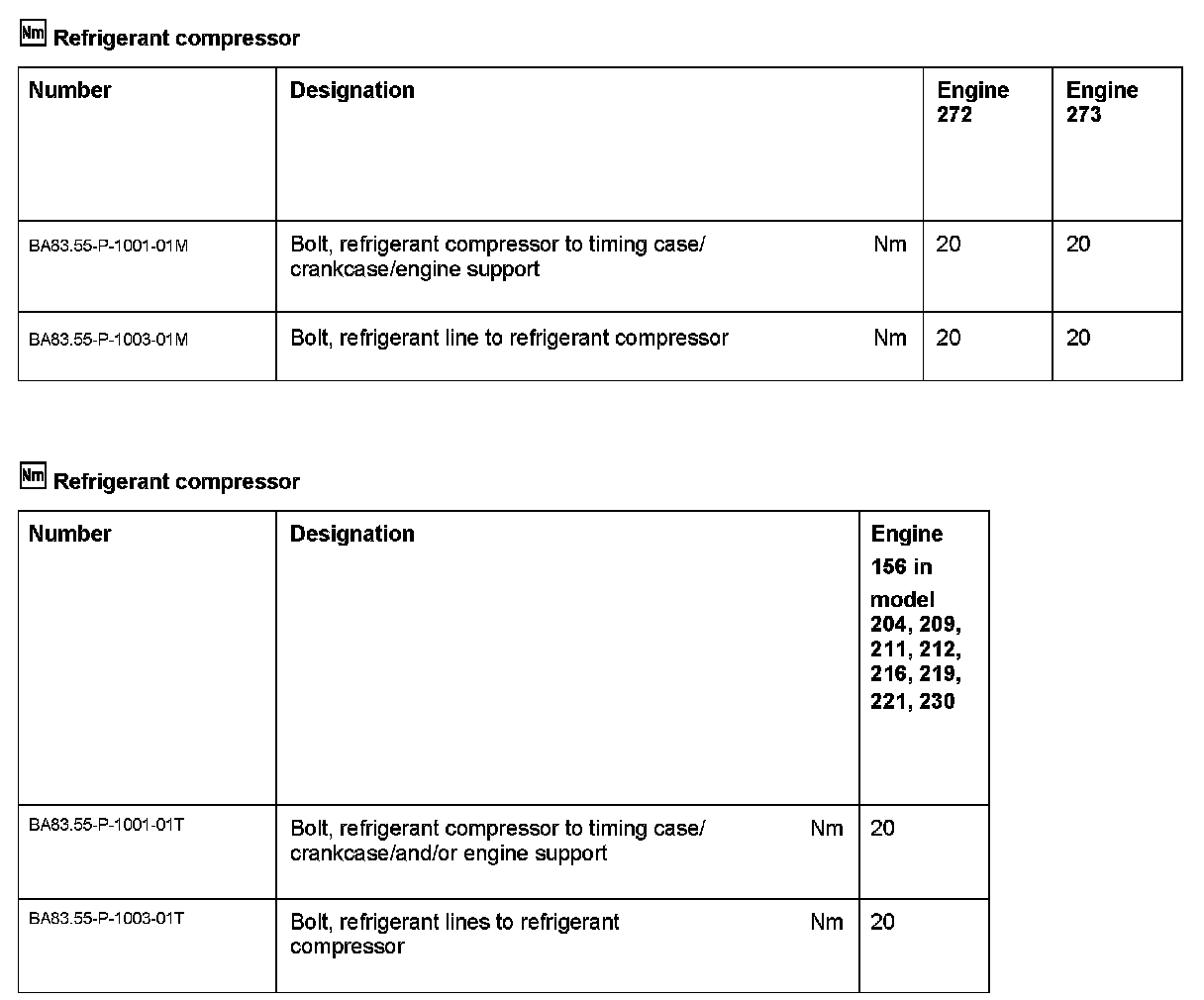

Refrigerant compressor
Refrigerant Compressor:

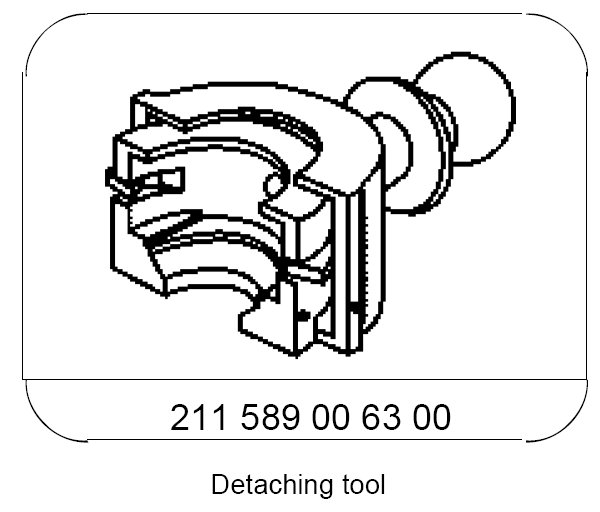

Special Tools:
Special Tools:
