FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2011
>>
E 350 4MATIC Wagon (212.287) V6-3.5L (272.977)
>>
Repair and Diagnosis
>>
Engine, Cooling and Exhaust
>>
Exhaust System
>>
Exhaust Manifold
>>
Service and Repair
>>
AR14.10-P-3915CV Remove/Install Exhaust Manifold
AR14.10-P-3915CV Remove/Install Exhaust Manifold
AR14.10-P-3915CV Remove/install
exhaust manifold

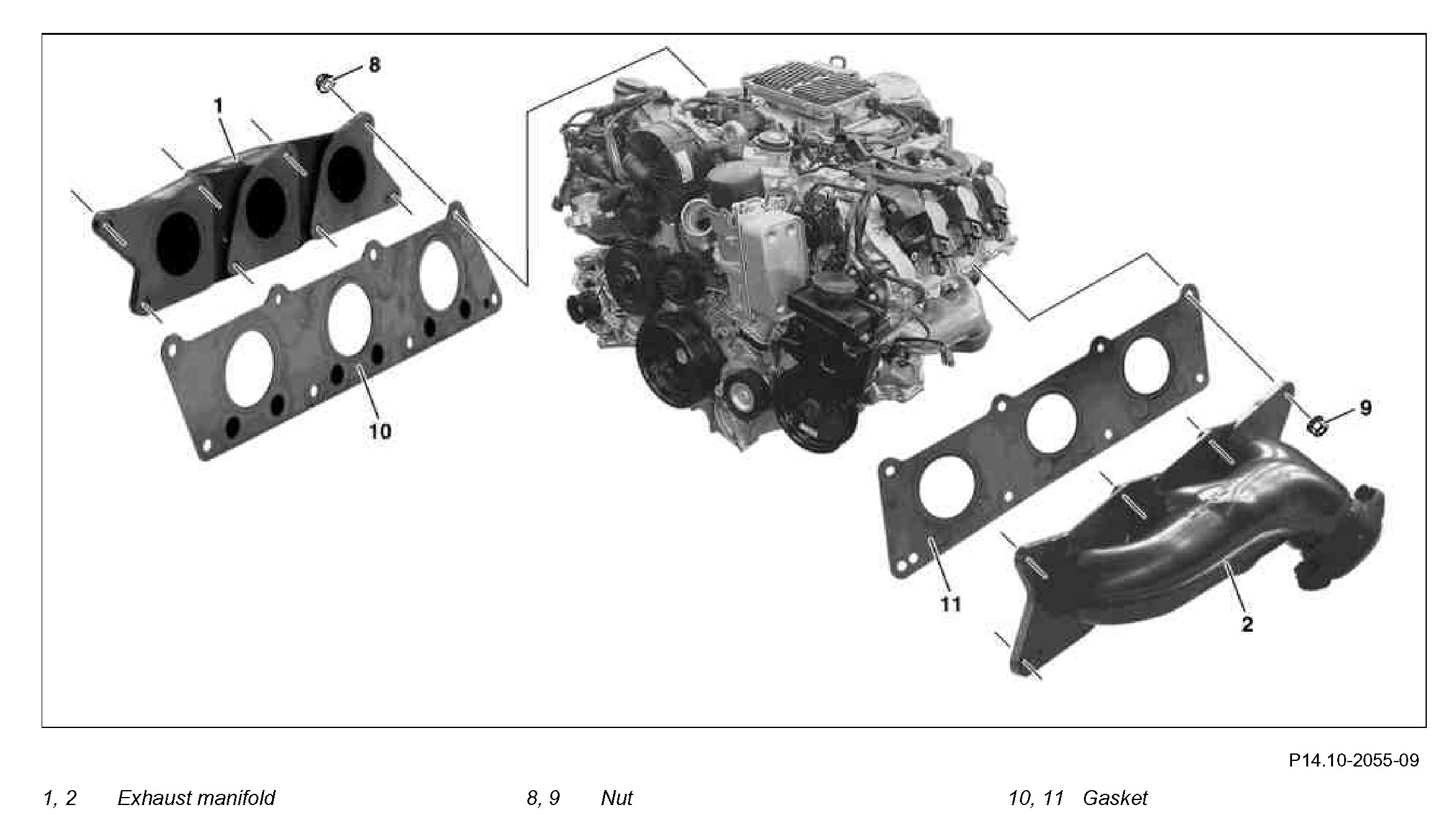

Component Identification:

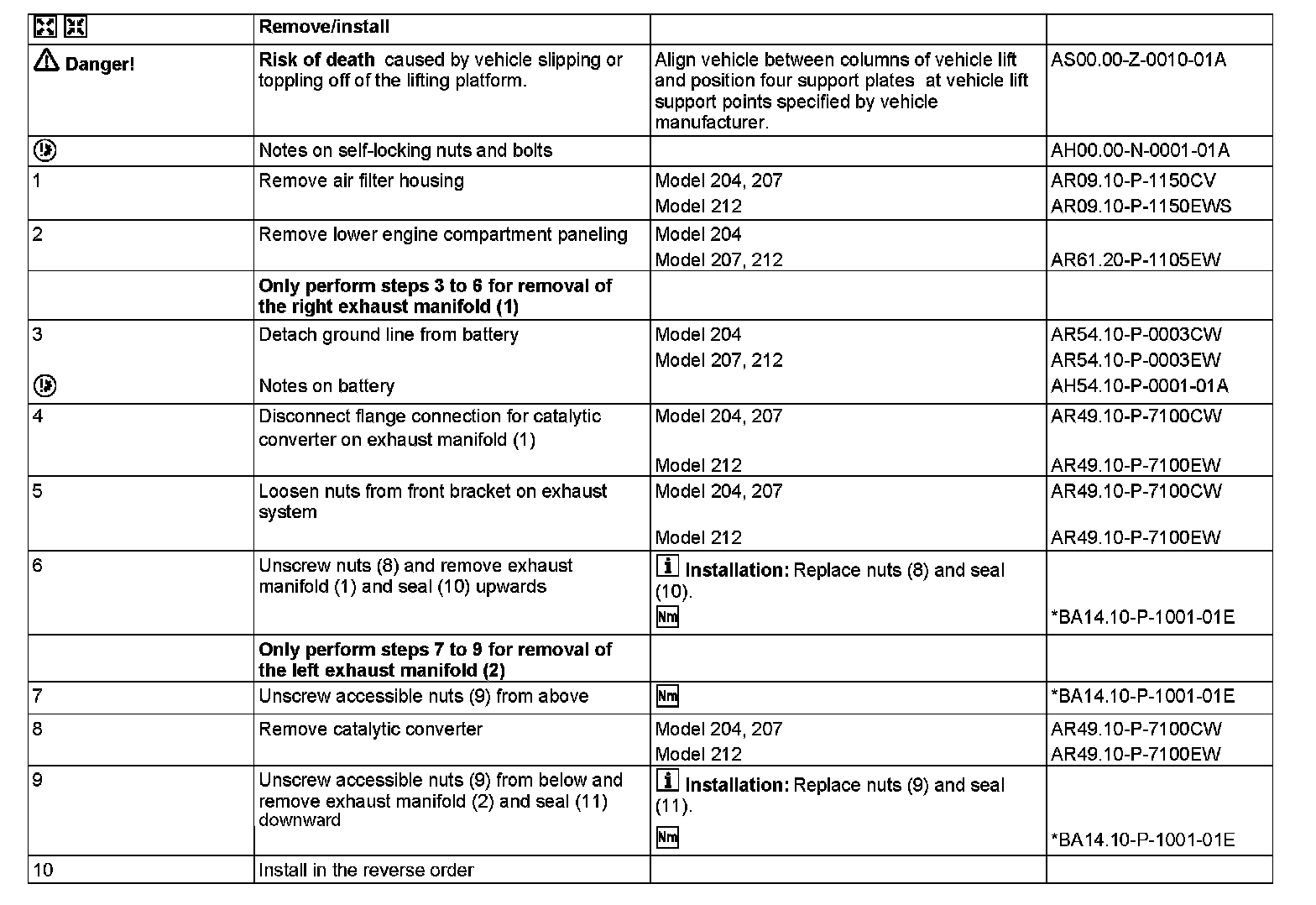

Steps 1-10:

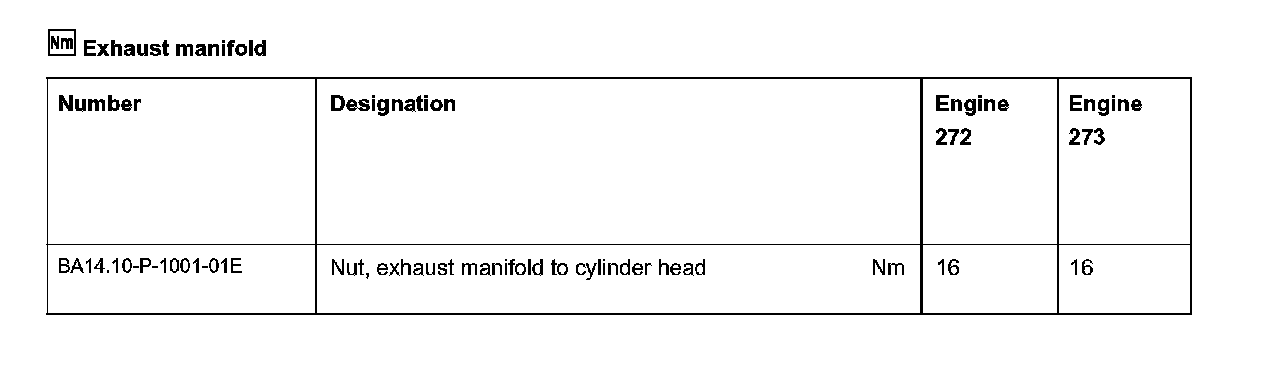

Exhaust manifold:
