AR20.10-P-1271EW Remove/Install Coolant Pump
AR20.10-P-1271EW Remove/Install Coolant Pump
AR20.10-P-1271EW Remove/install coolant pump

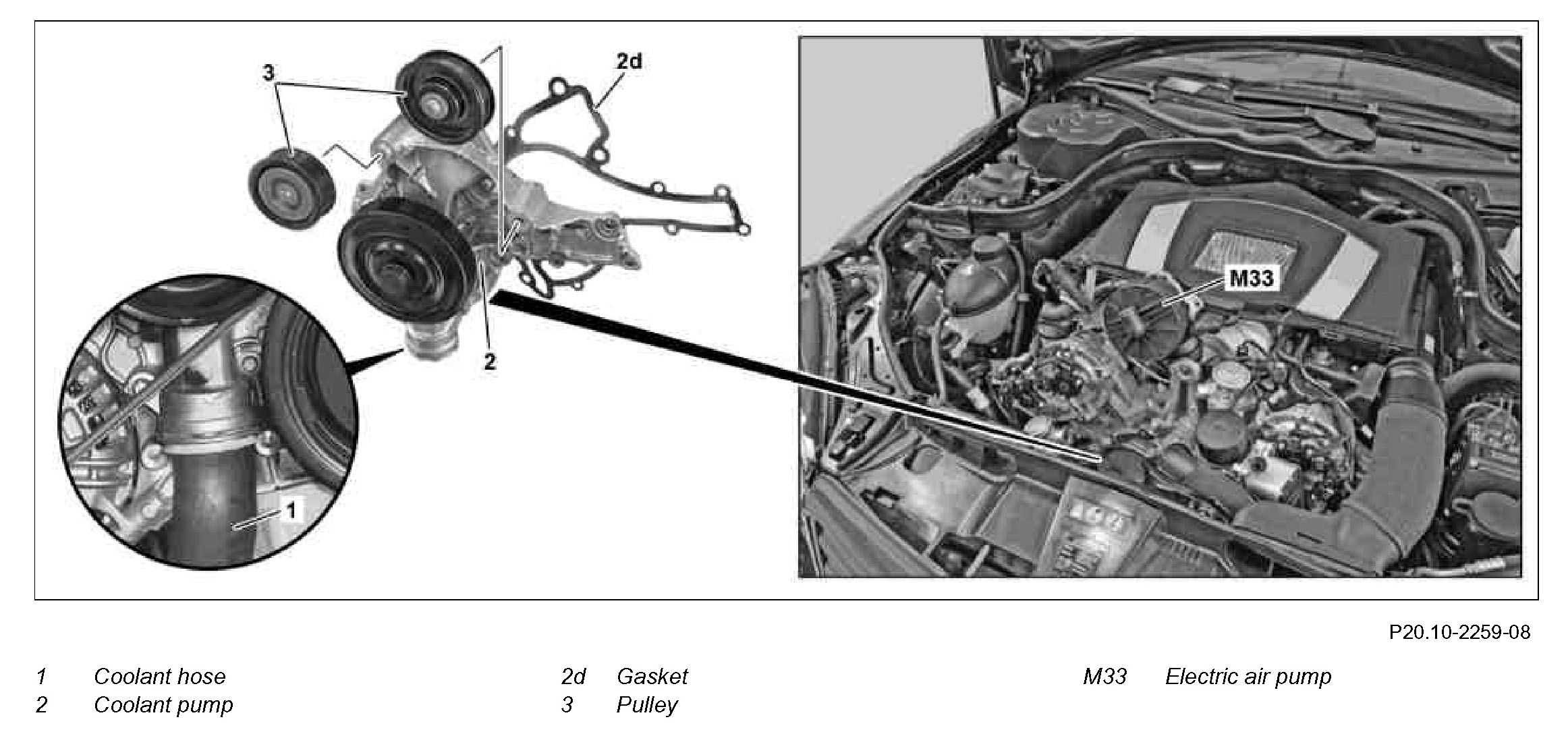

Component Identification:

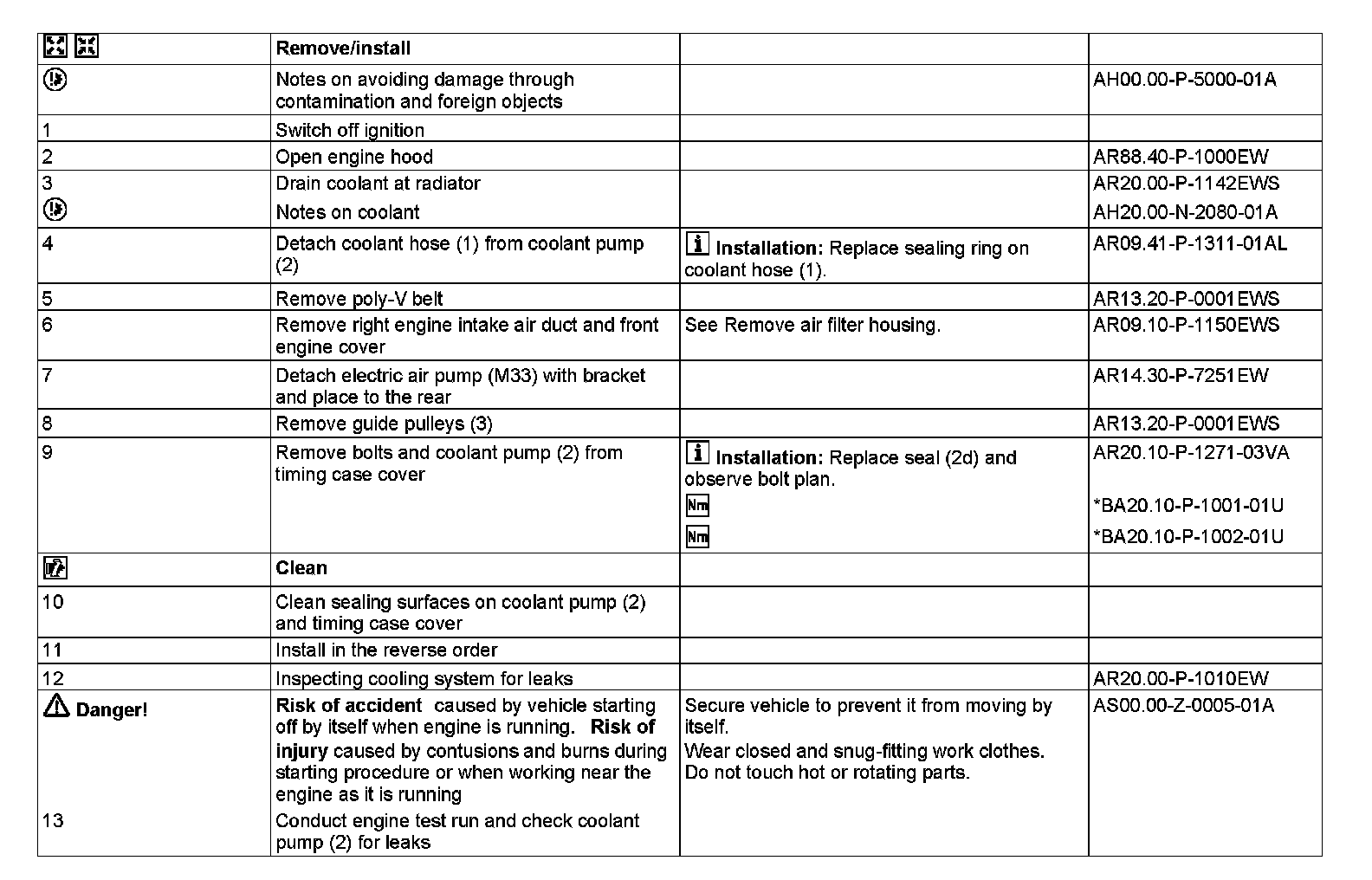

Steps 1-13:

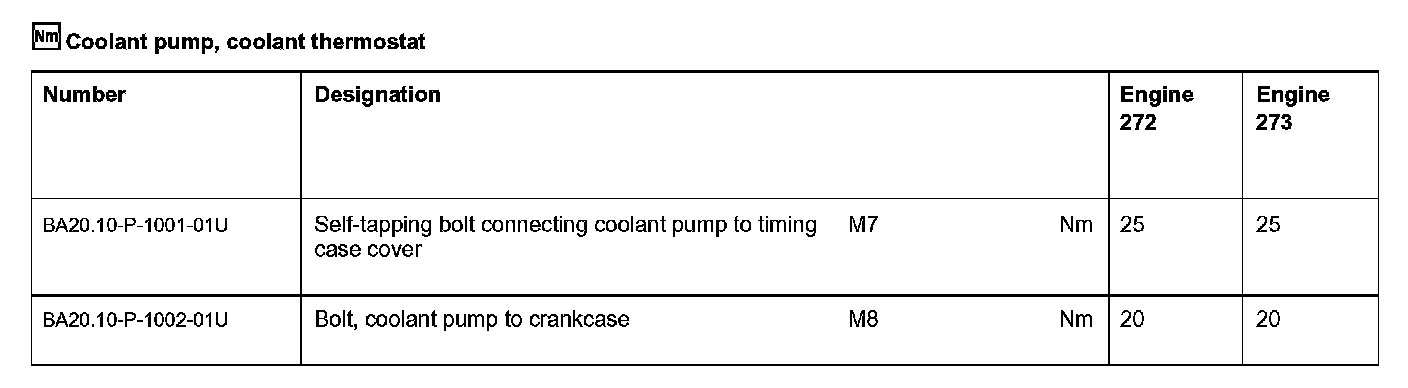

Coolant pump, coolant thermostat:
