AR20.10-P-1271-03VA Bolt Plan For Coolant Pump

AR20.10-P-1271-03VA Bolt Plan For Coolant Pump

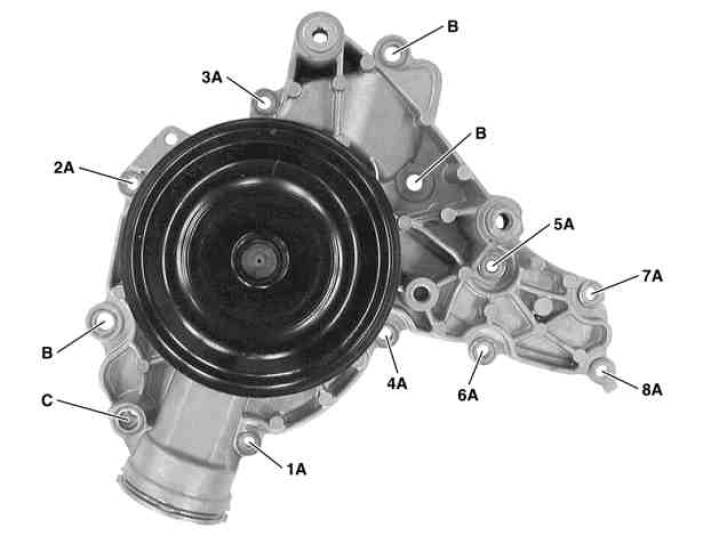

Bolt assignments for coolant pump

Bolts A: Coolant pump to timing case cover.
Bolts B and C: Coolant pump on crankcase.

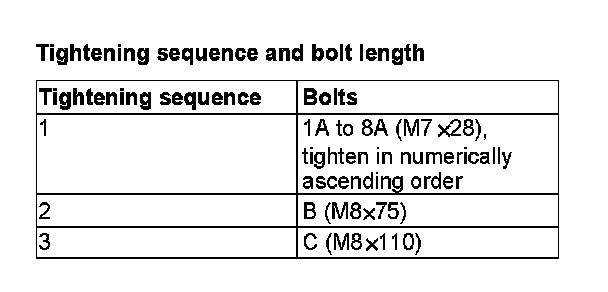

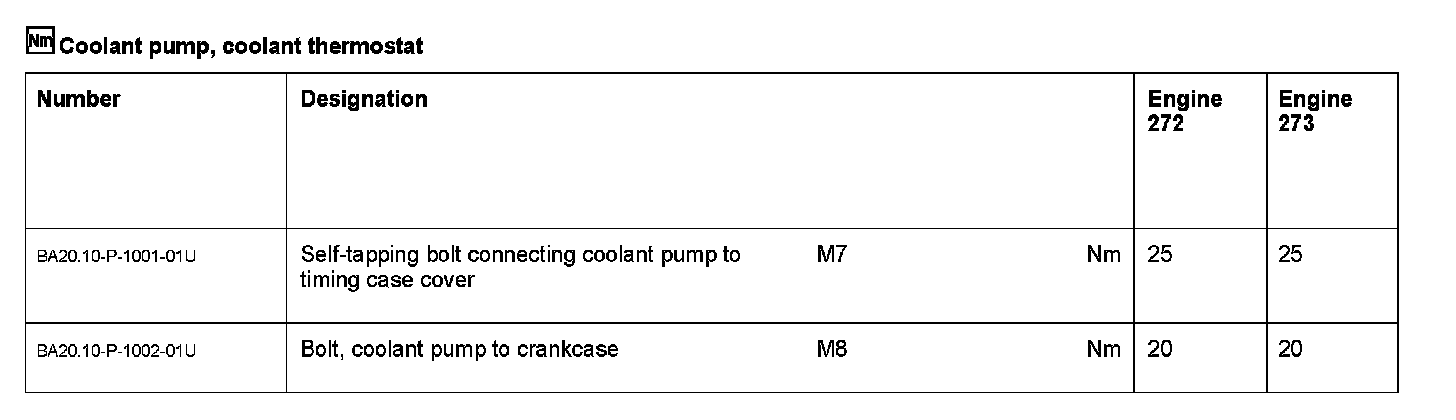

The tightening sequence given in the following table must be followed to ensure that there are no leaks in the coolant pump.
