AR05.20-P-7295EWR Remove/Install Solenoid Camshaft



AR05.20-P-7295EWR Remove/install solenoid camshaft
- Right cylinder head

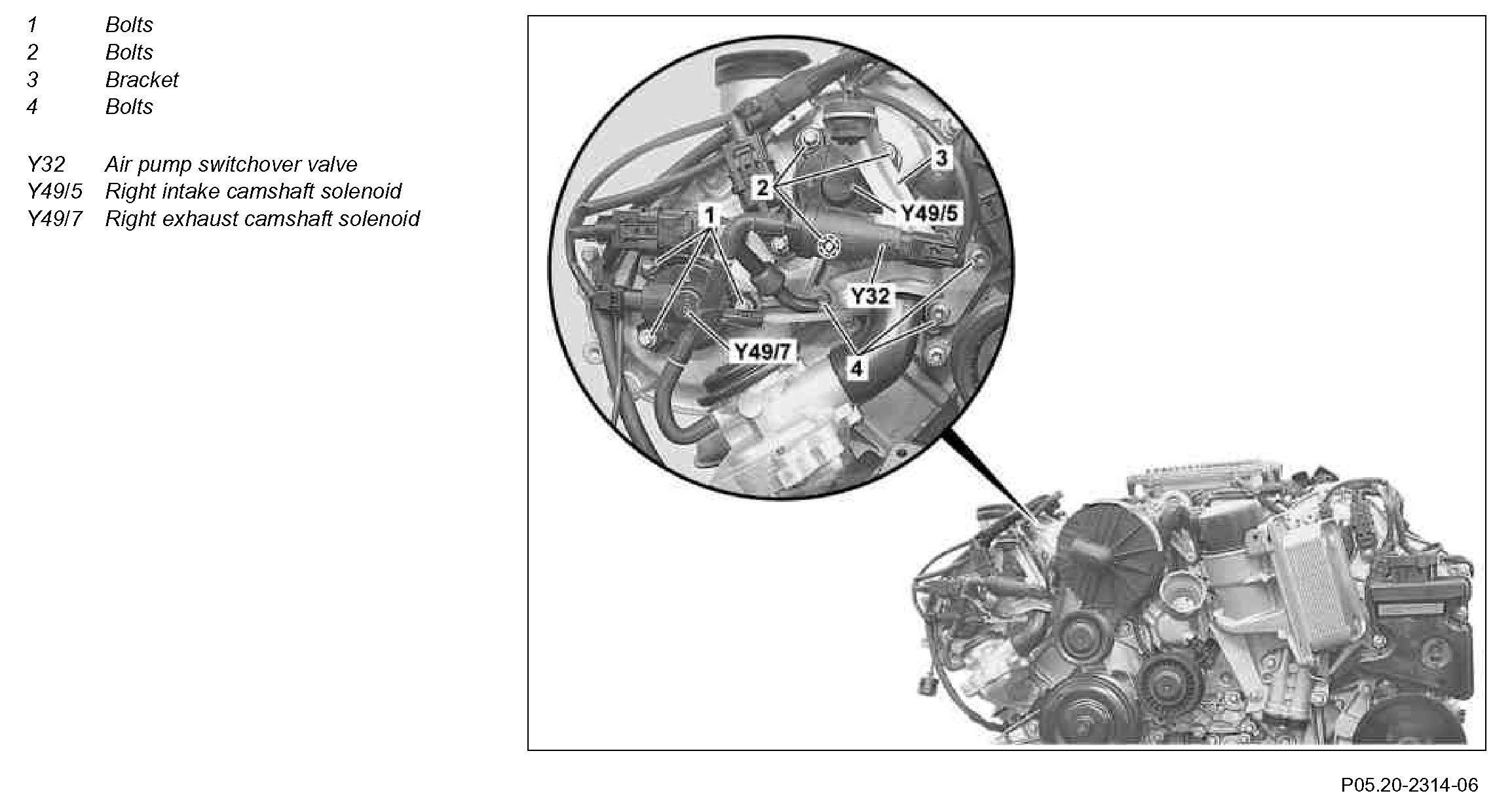

Component Identification:

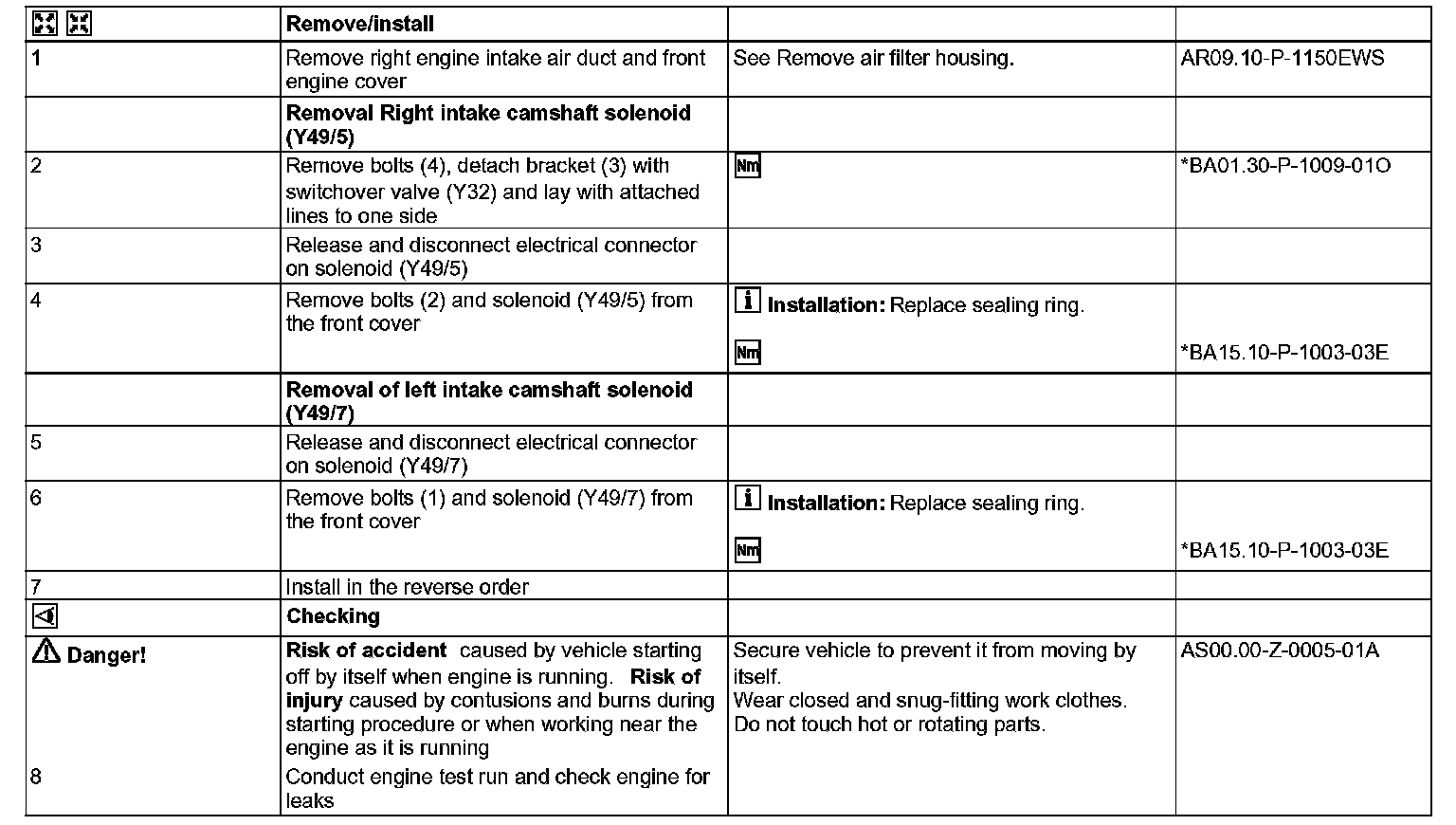

Steps 1-8:

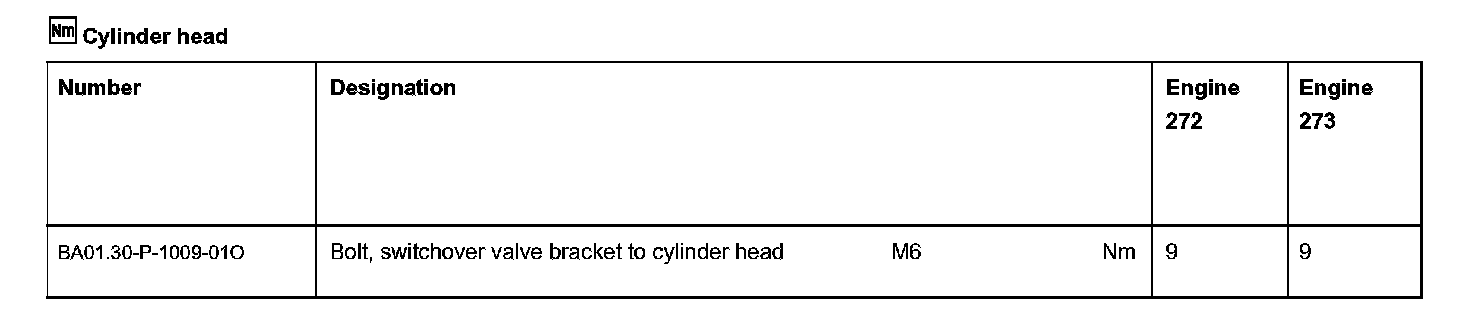

Cylinder head:

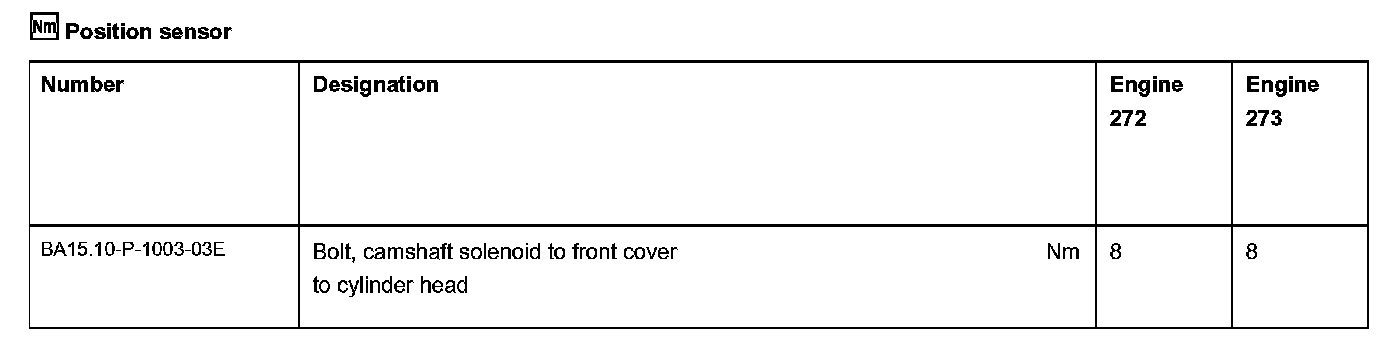

Position sensor:
