AR05.20-P-7295EWL Remove/Install Solenoid Camshaft



AR05.20-P-7295EWL Remove/install solenoid camshaft
- Left cylinder head

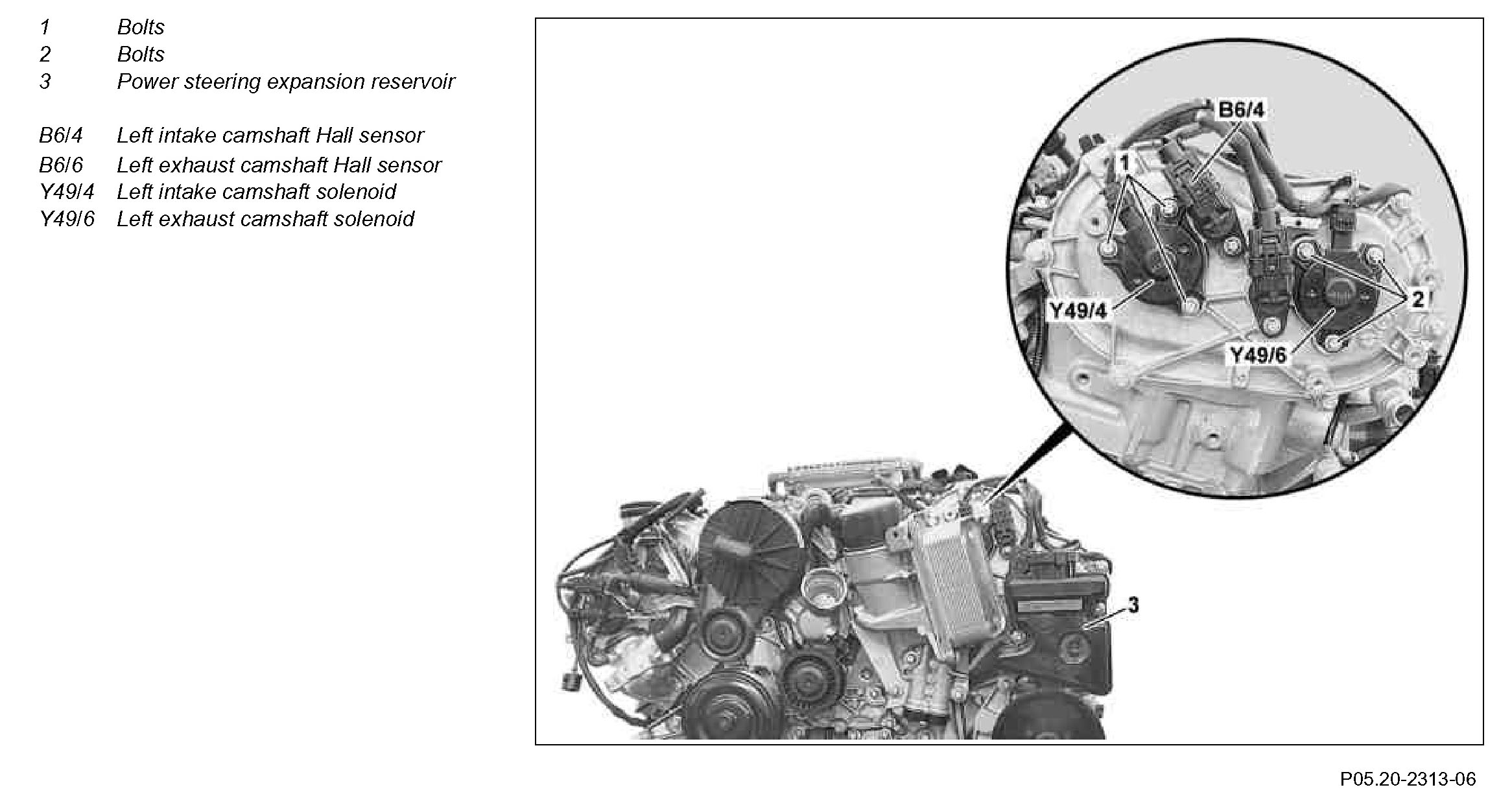

Component Identification:

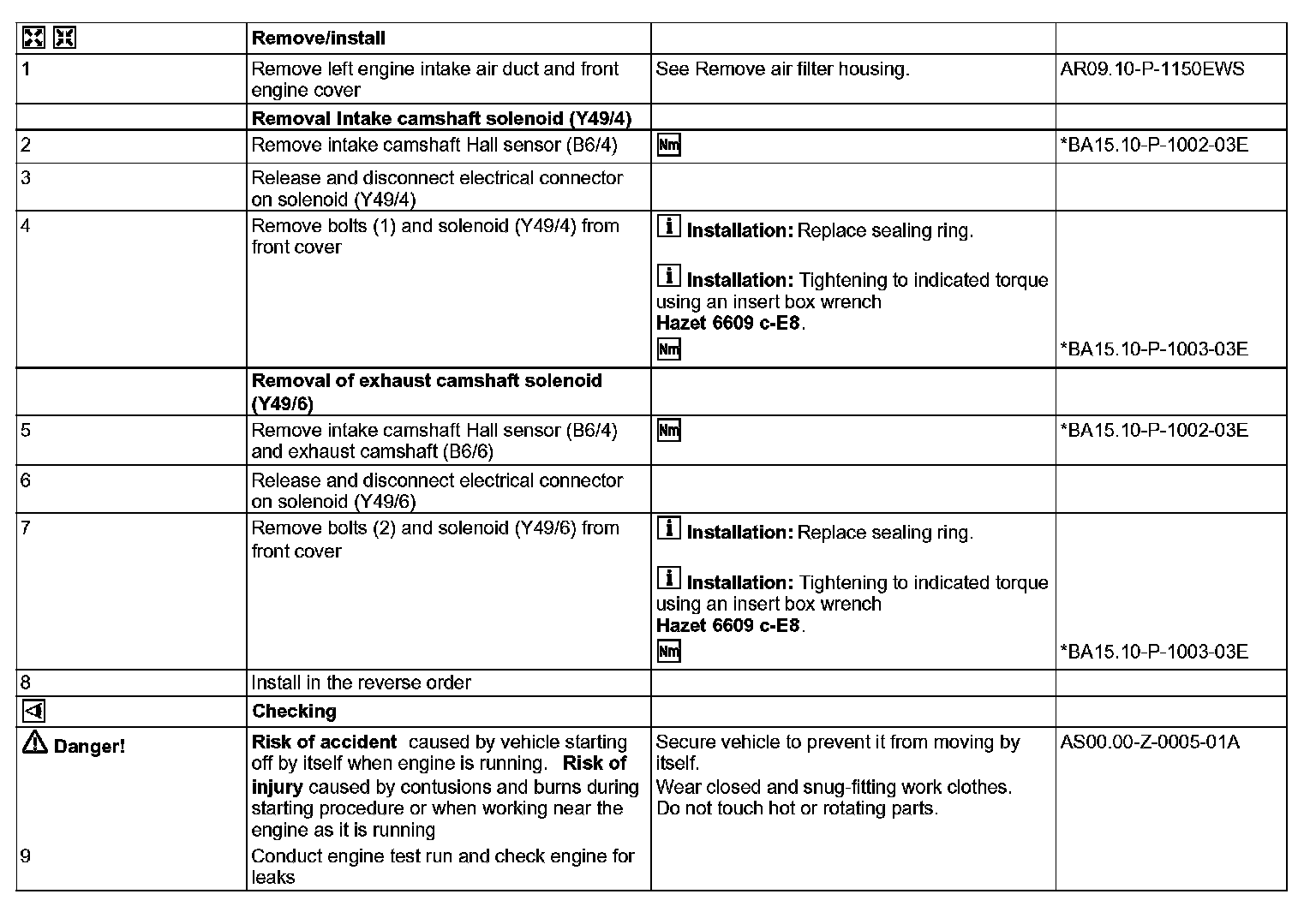

Steps 1-9:

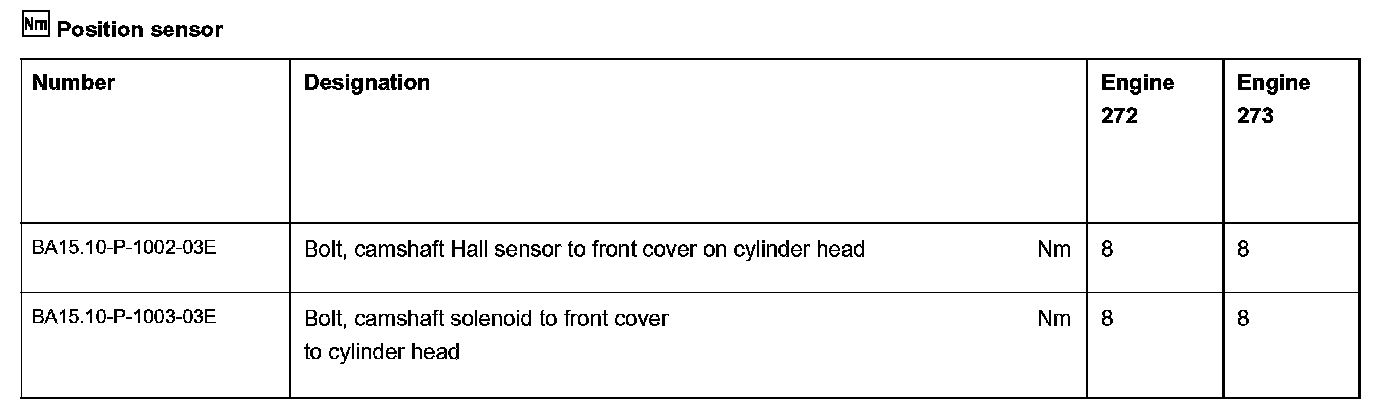

Position sensor:
