AR01.40-P-8000EWS Remove/Install Timing Case Cover

AR01.40-P-8000EWS Remove/Install Timing Case Cover
ENGINES 272, 273 in MODEL 212

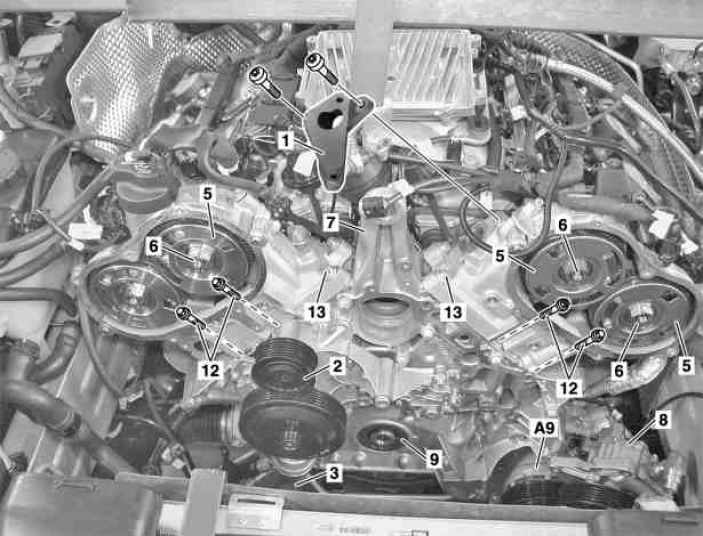

Shown on engine 272.980

1 Intermediate flange
2 Pulley
3 Coolant hose
5 Segmental disks
6 Central valves
7 Timing case cover
8 Power steering pump
9 Crankshaft radial sealing ring
12 Screw/bolts
13 Screw/bolts

A9 A/C compressor





16 Coolant lines
16a Electrical connector
16b Screw/bolts
17 Bracket
17a Screw/bolts

Y125 Low-temperature circuit shutoff valve
































003 589 03 37 00
Hose clamp pliers





112 589 00 25 00
Squeeze gun





001 589 65 09 00
Wrench socket
