AR01.30-P-5700EWR Remove/Install Front Cover on Cylinder Head
AR01.30-P-5700EWR Remove/install front cover on cylinder head
- Front cover at right cylinder head

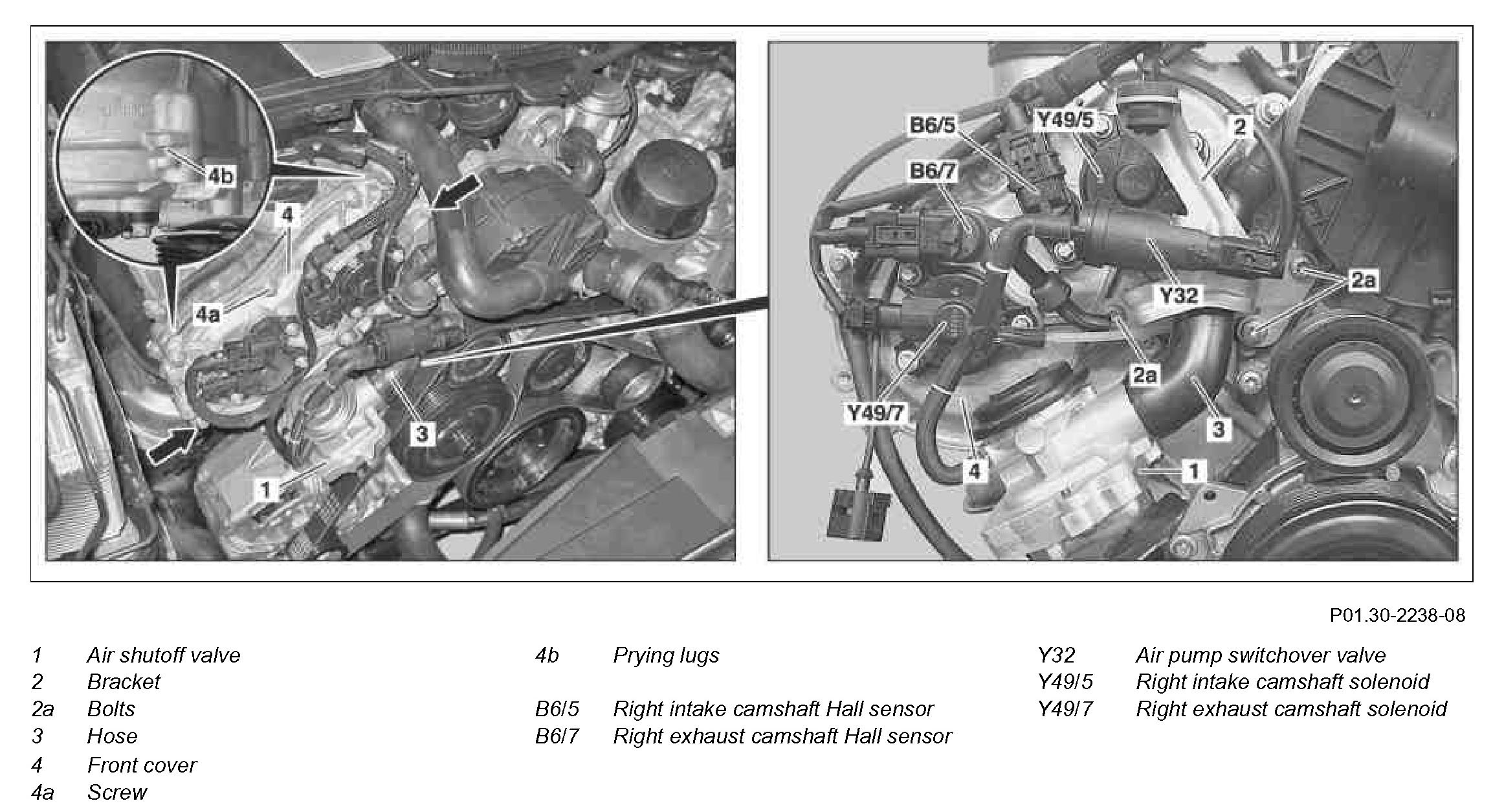

Component Identification:

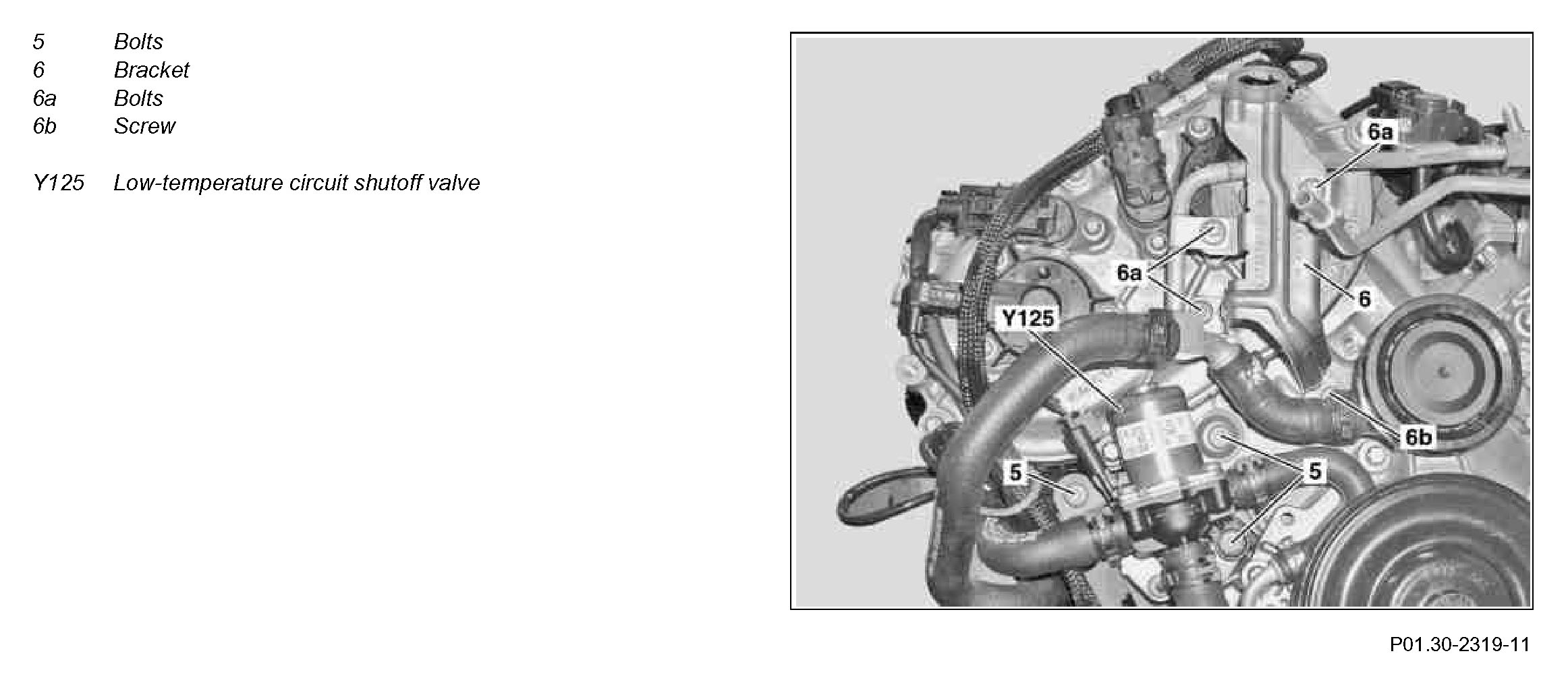

Component Identification:

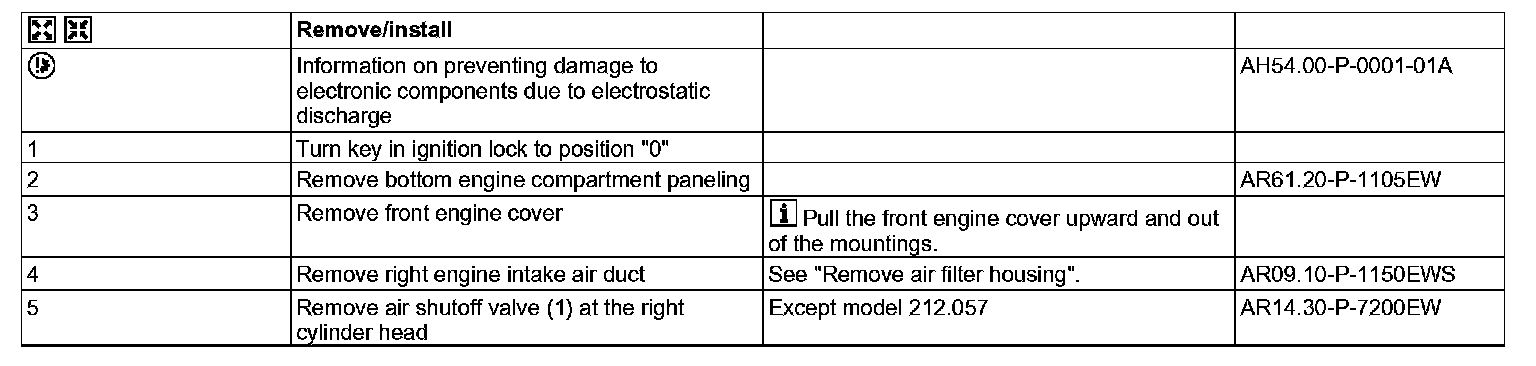

Steps 1-5:

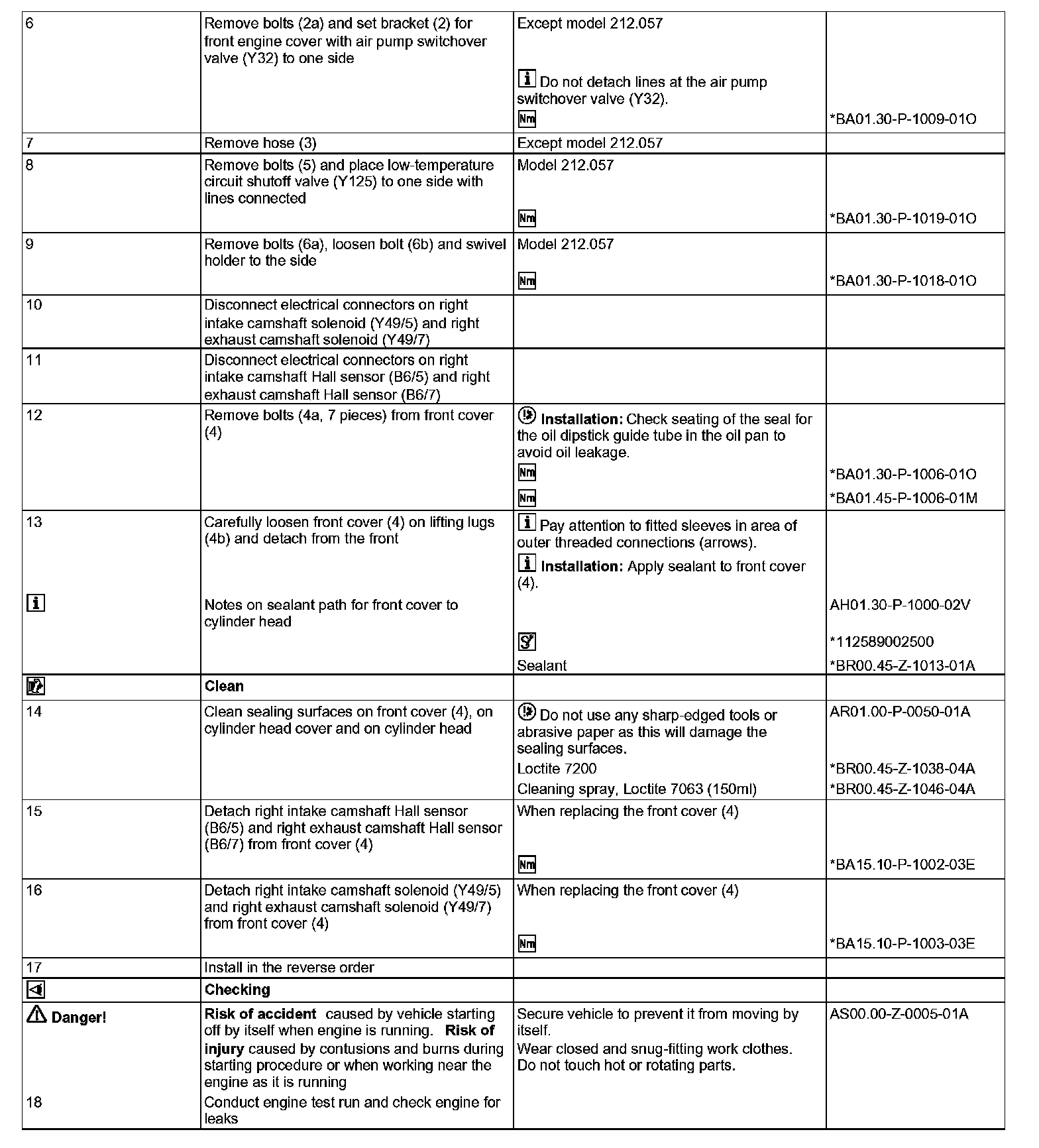

Steps 6-18:

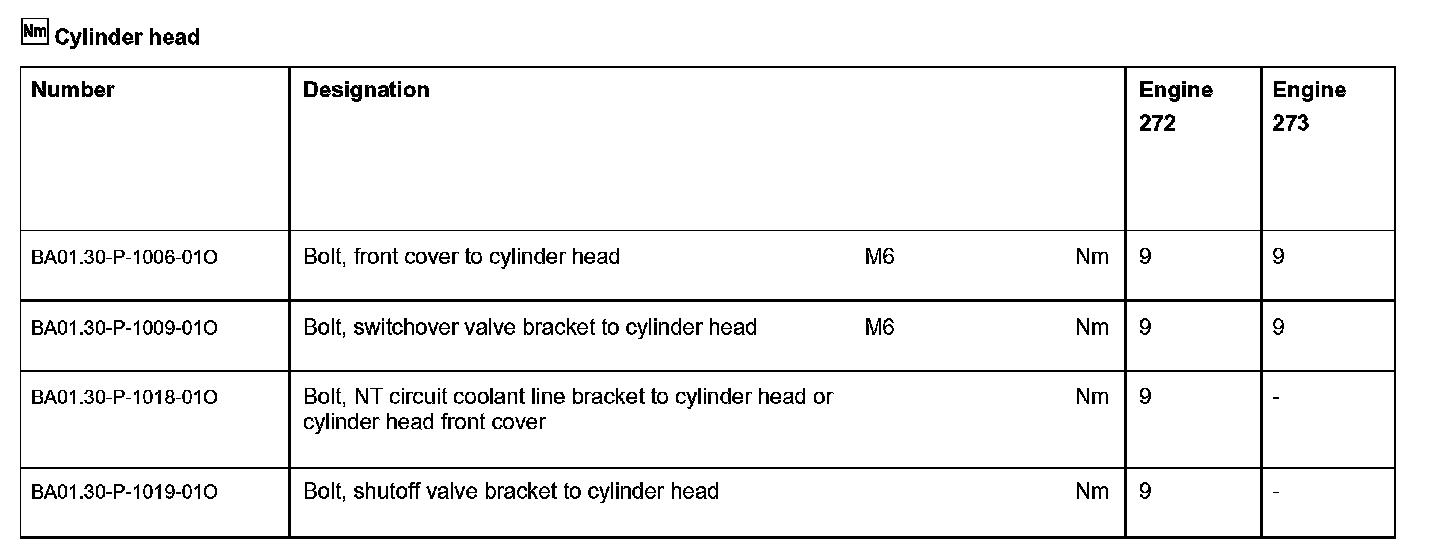

Cylinder head:

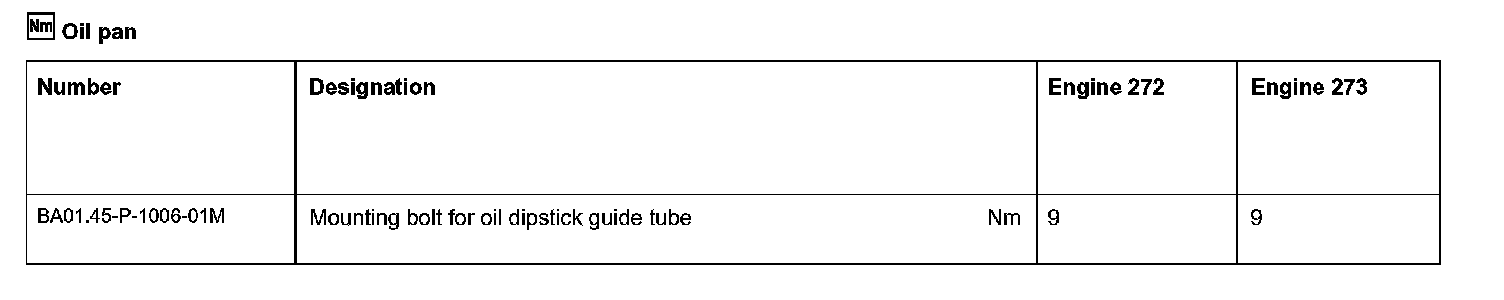

Oil pan:

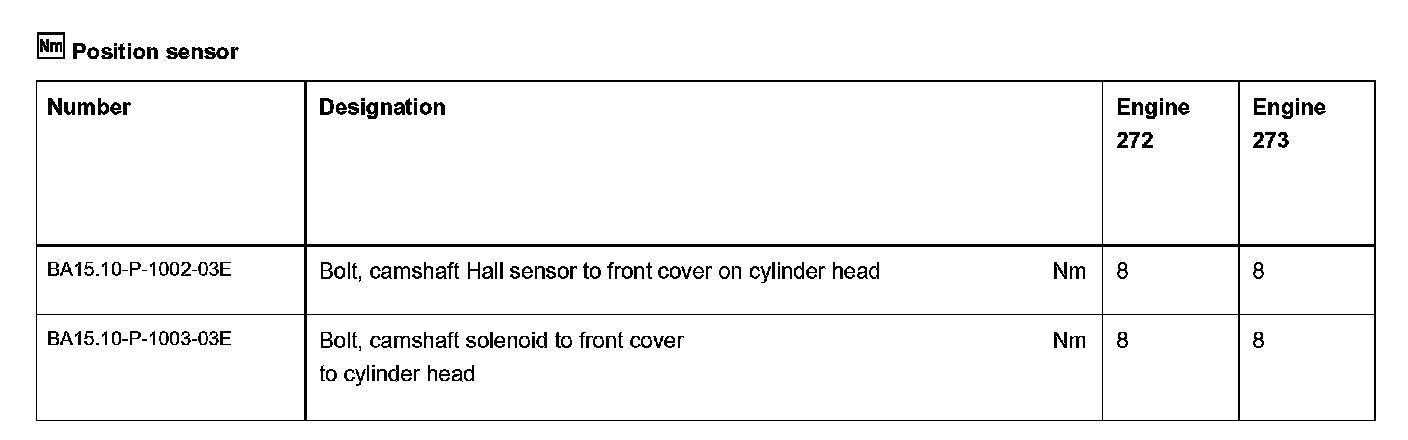

Position sensor:

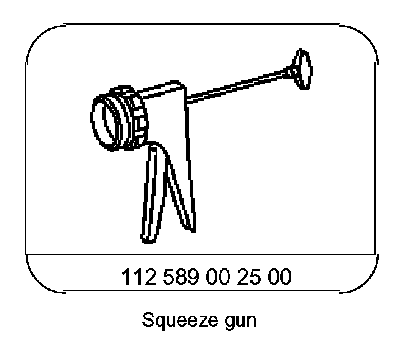

Special Tools:

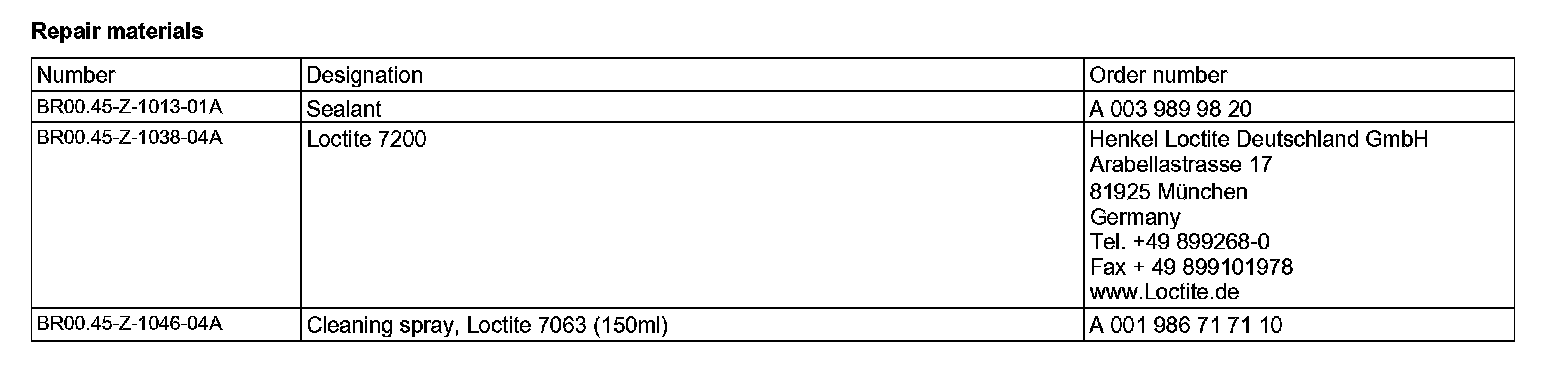

Repair materials:
