AR01.30-P-5700EWL Remove/Install Front Cover on Cylinder Head



AR01.30-P-5700EWL Remove/install front cover on cylinder head
- Front cover at left cylinder head

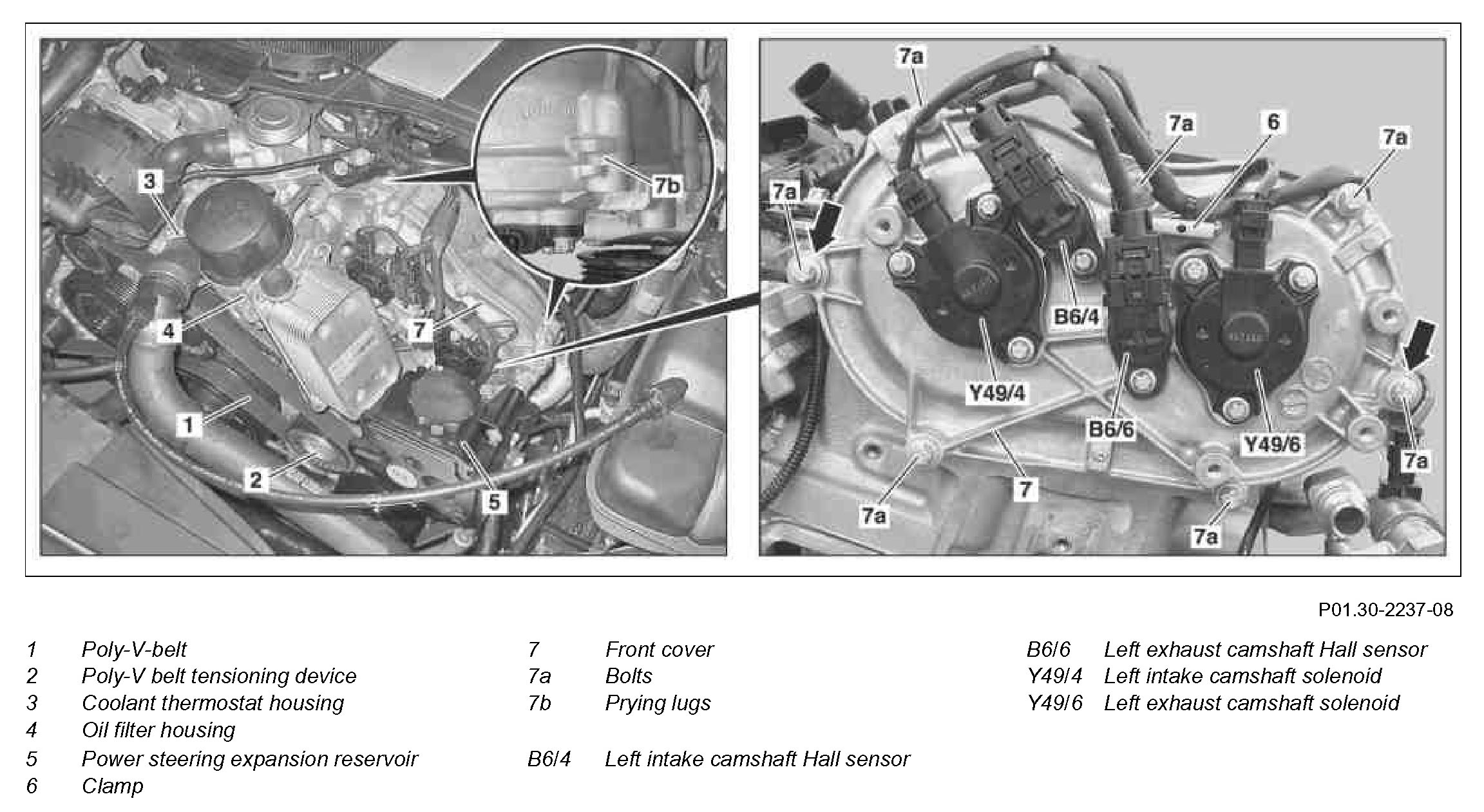

Component Identification:

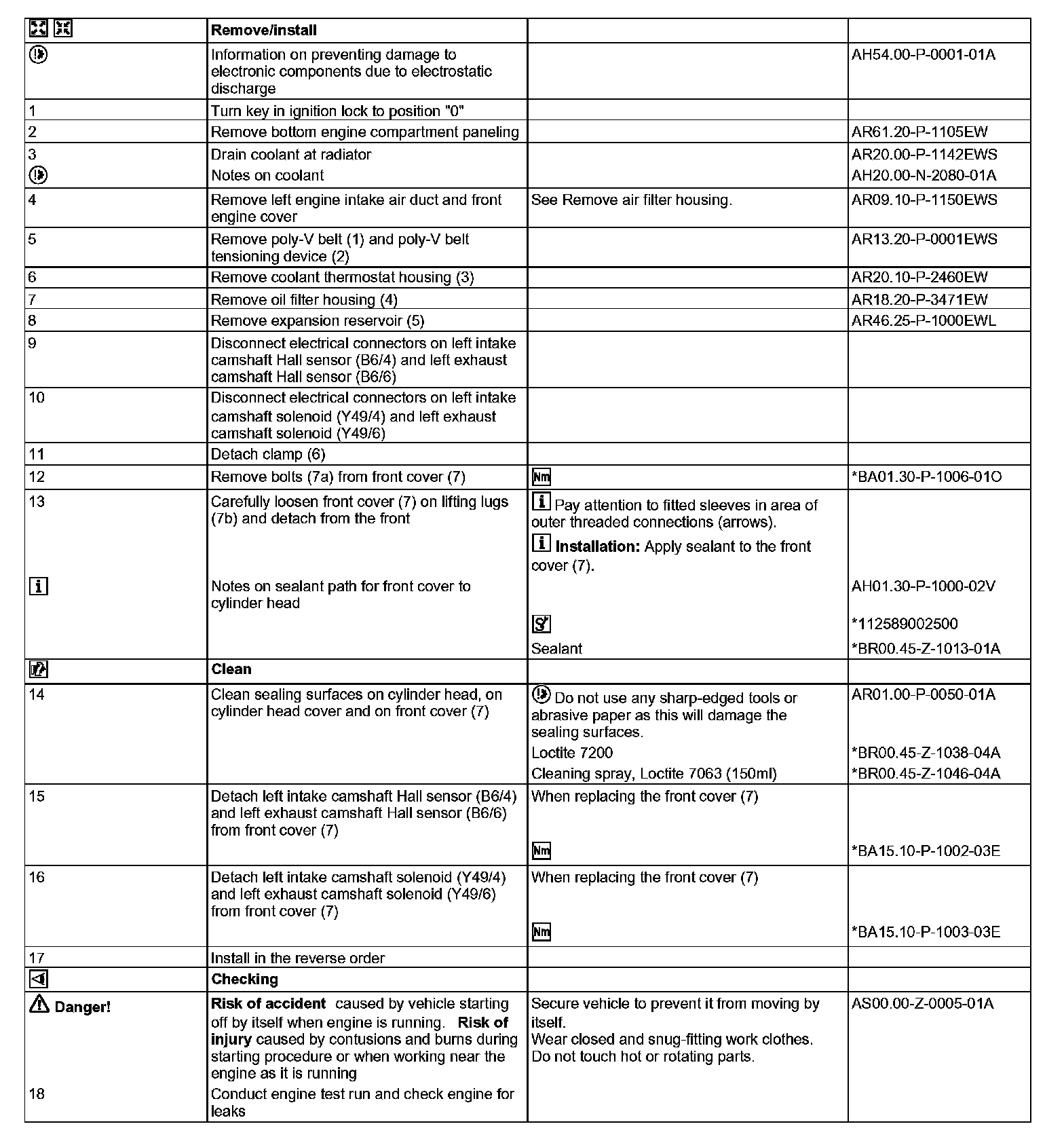

Steps 1-18:

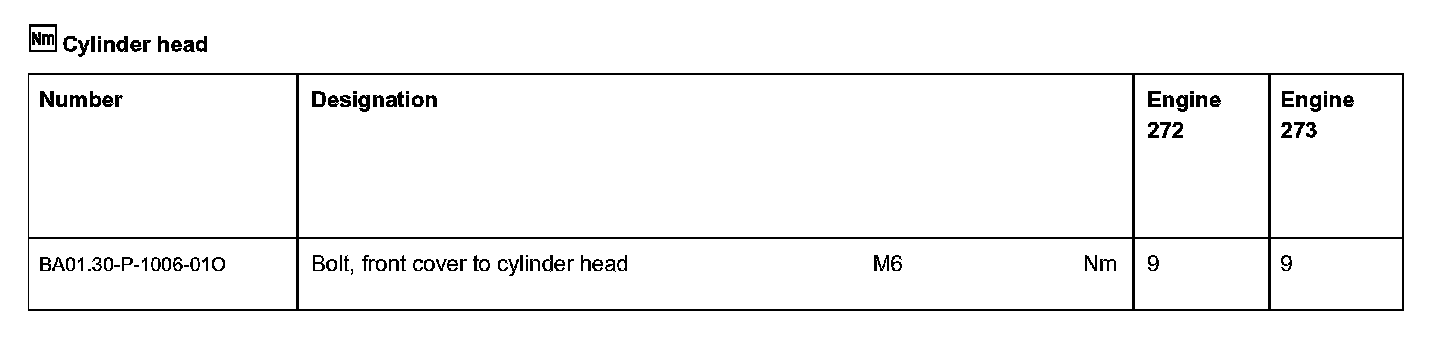

Cylinder head:




Position sensor:

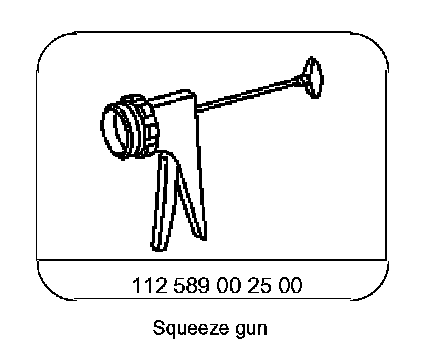

Special Tools:

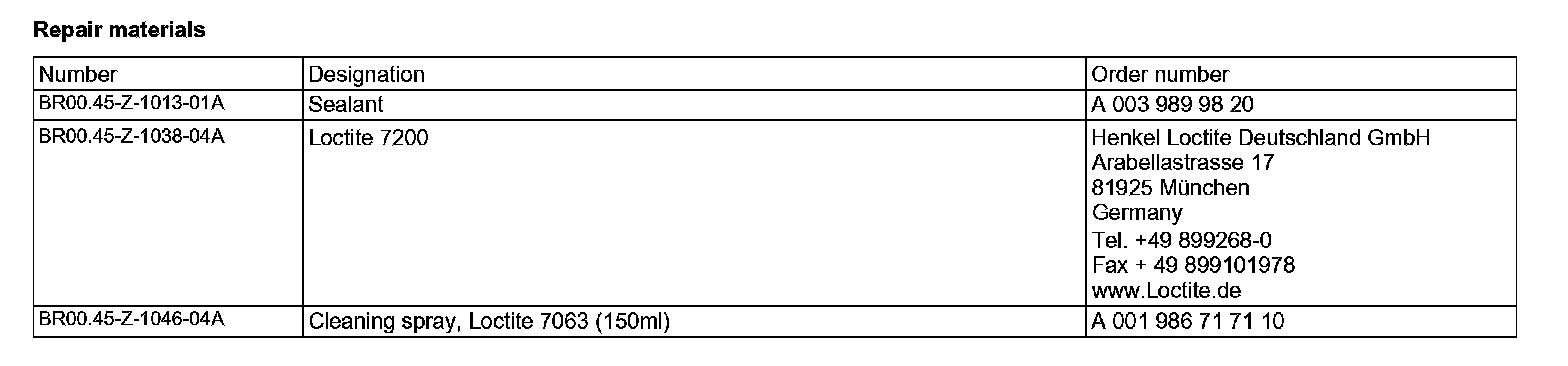

Repair materials:
