AR05.10-P-7601EW Replace Timing Chain

AR05.10-P-7601EW Replace timing chain

Component Identification:

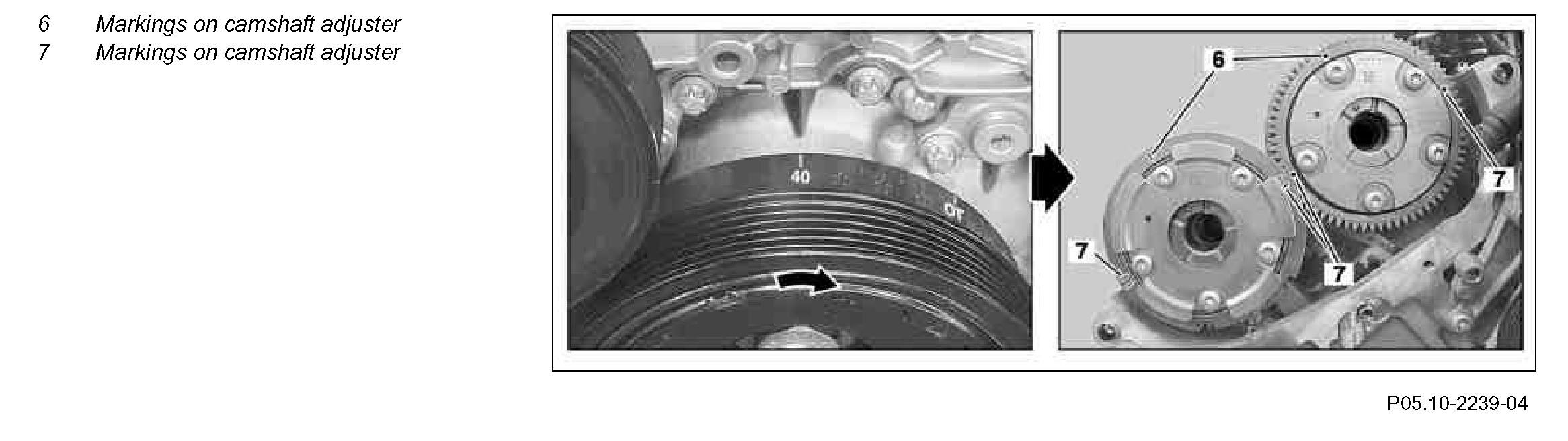

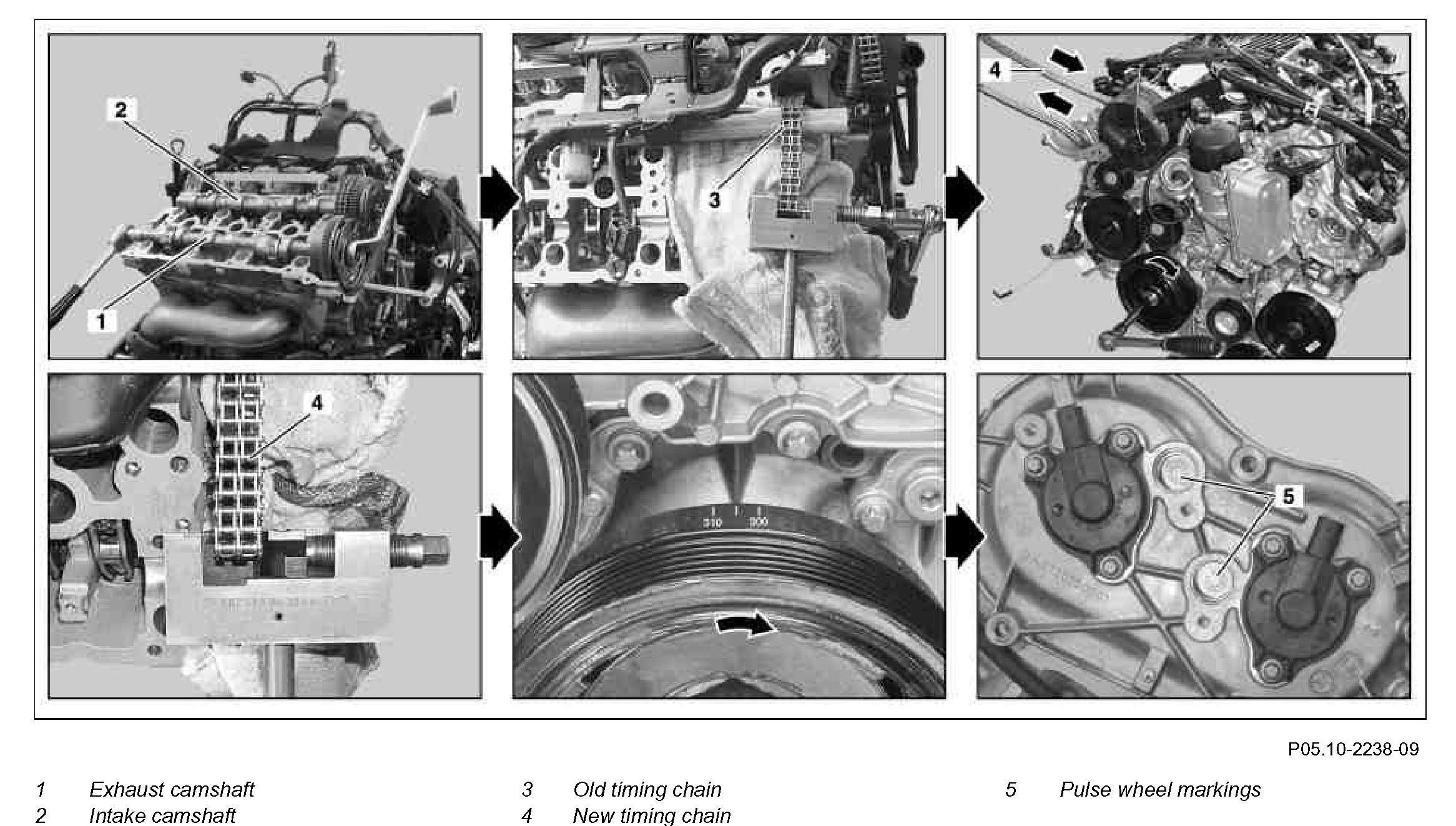

Component Identification:

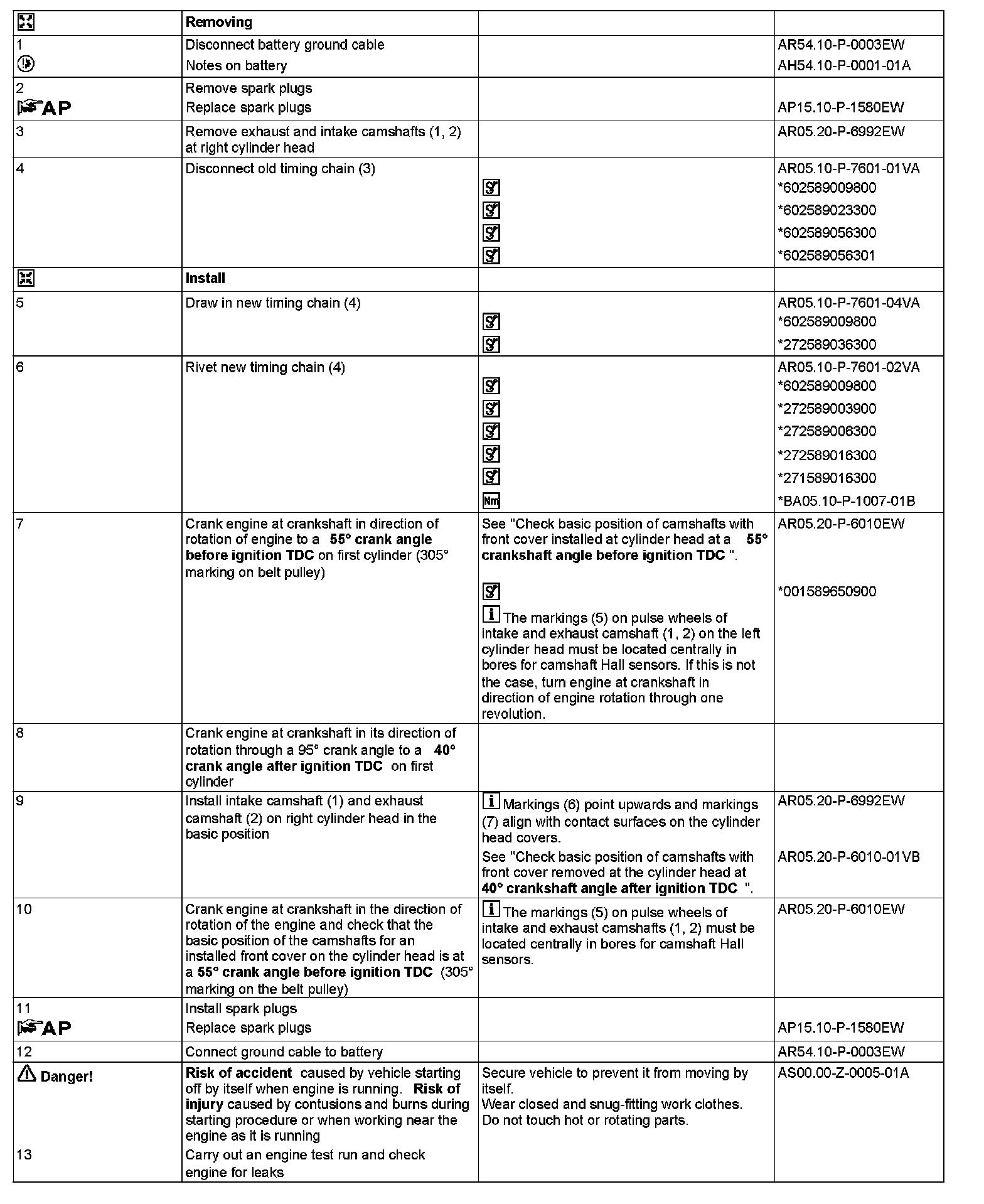

Steps 1-13:

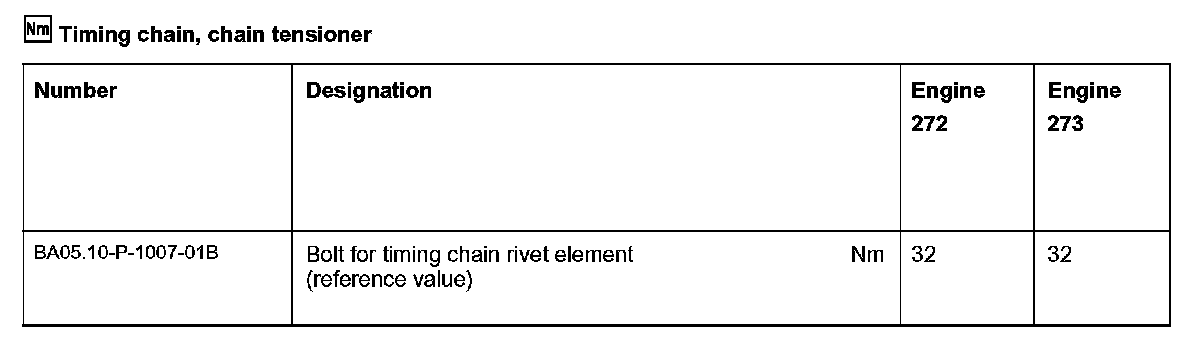

Timing chain, chain tensioner:

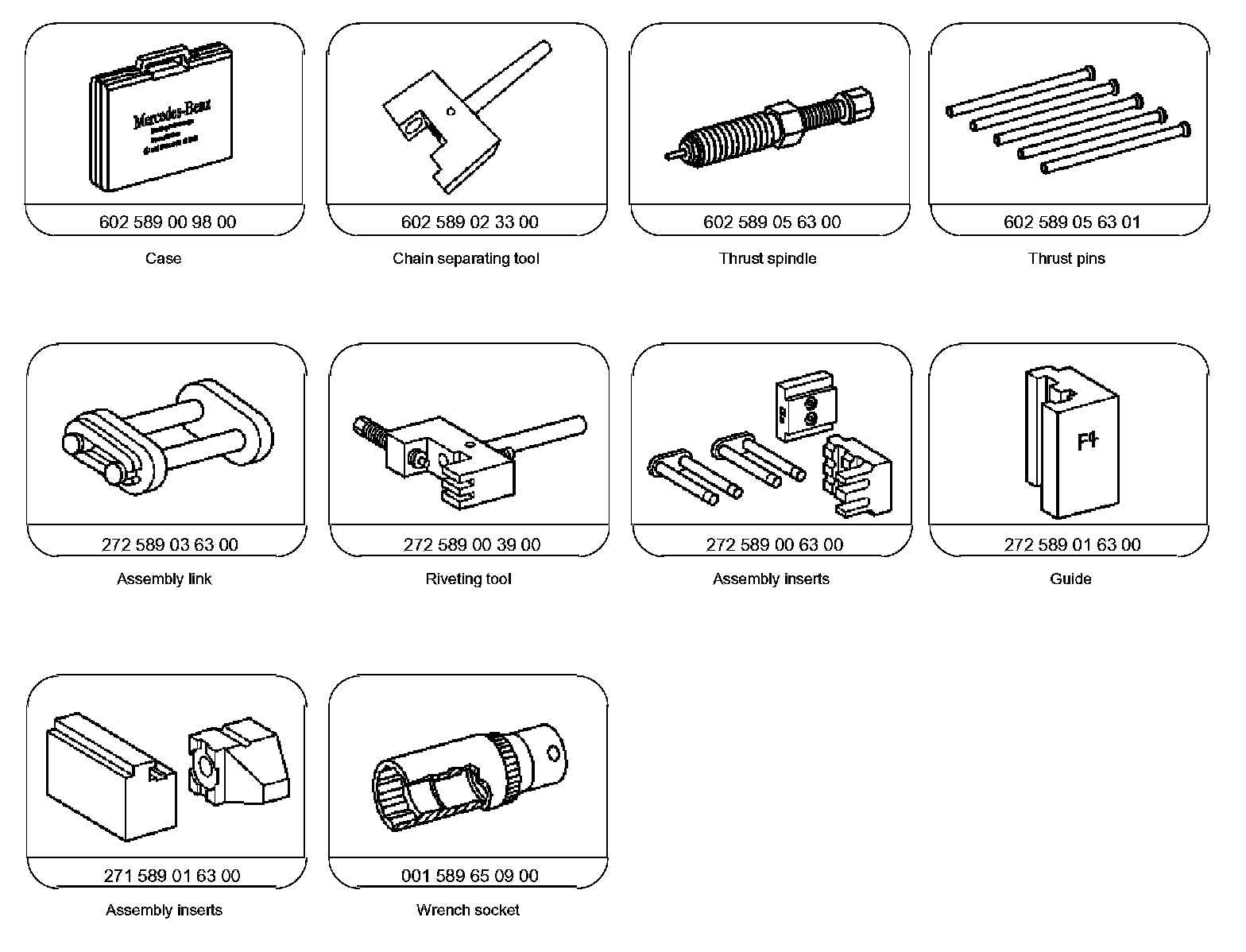

Special Tools:
