AR05.10-P-7601-01VA Separate Timing Chain

AR05.10-P-7601-01VA Separate Timing Chain





602 589 00 98 00
Case





602 589 02 33 00
Chain separating tool





602 589 05 63 00
Thrust spindle





602 589 05 63 01
Pressure pins





1 Cover over timing case recess with a clean cloth.
The timing case recess must be secured against parts falling down.
Parts that have fallen into the timing case recess must be removed.

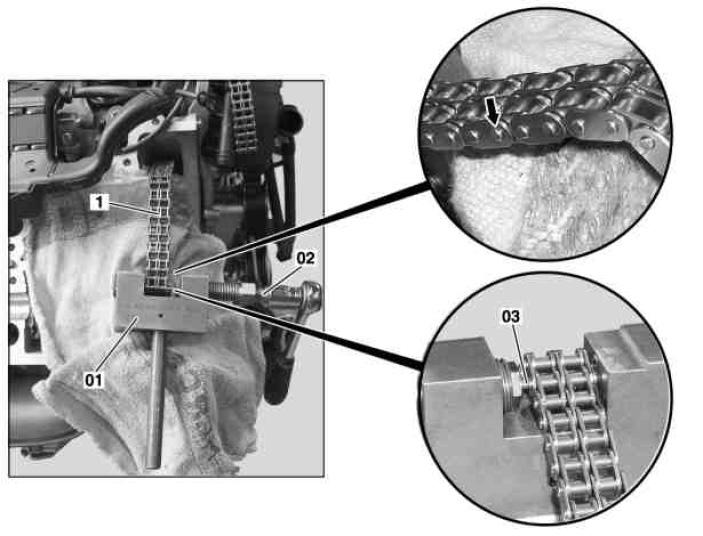

2 Assemble the chain separating tool (01) and the pressure screw (02) together.
3 Fit the chain separating tool (01) at the timing chain (1).
Ensure that the pressure pin (03) lies at the pin (arrow) of a timing chain link.
4 Screw in the pressure screw (02) and separate the timing chain (1).
Do not let the pins that have been pushed out fall into the timing case recess.
5 Remove the pressure screw (02) and take off the chain separating tool (01).
