AR01.00-P-0200EWS Inspecting Cylinders With A Light Probe
AR01.00-P-0200EWS Inspecting Cylinders With A Light Probe
AR01.00-P-0200EWS Inspecting cylinders with a light probe
Component Identification:

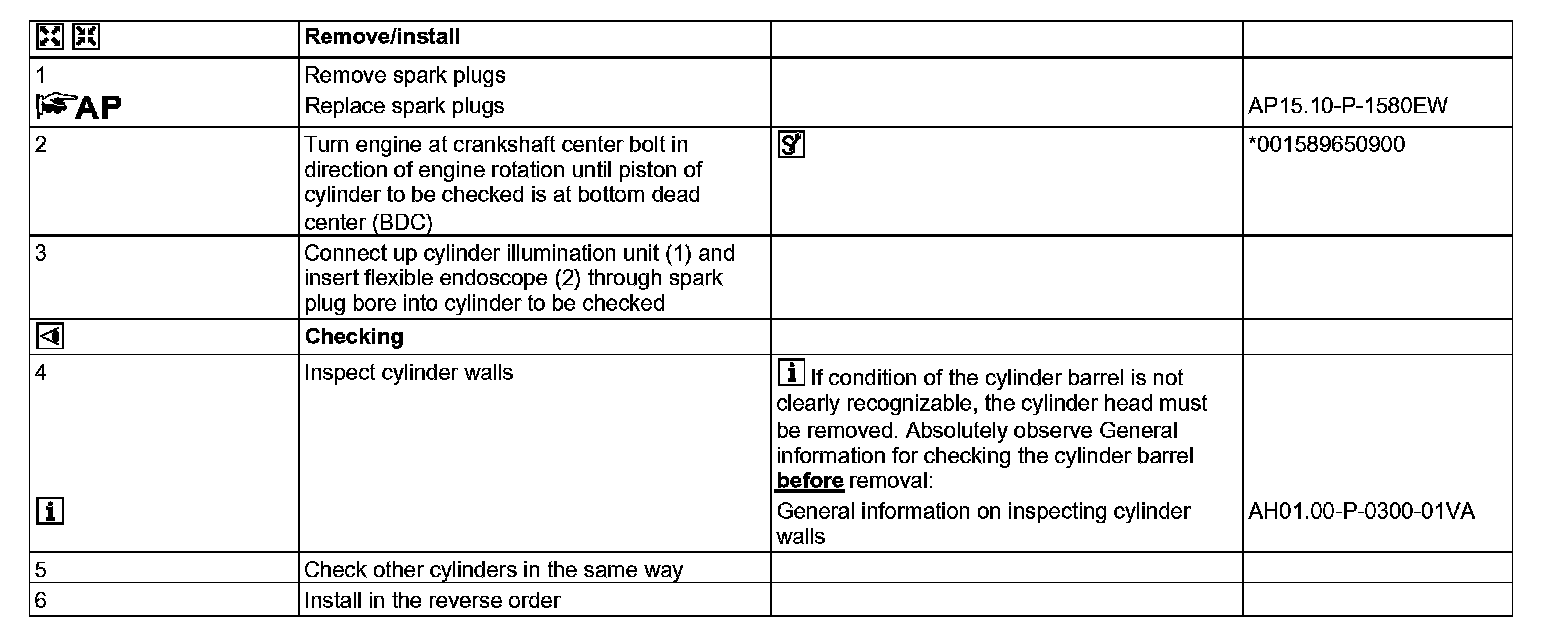

Steps 1-6:

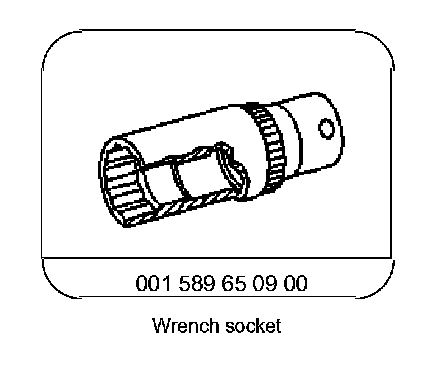

Special Tools:
